Powertrain Control Module C2 - Black/Orange 38 Way

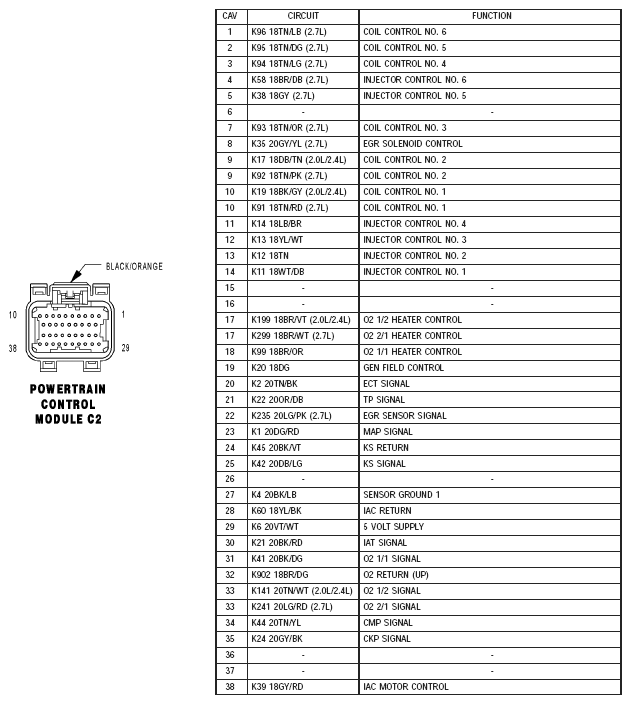

Fig 1: Identifying Connector Pinouts - Powertrain Control Module C2 - Black/Orange 38 Way
