4 Cylinder

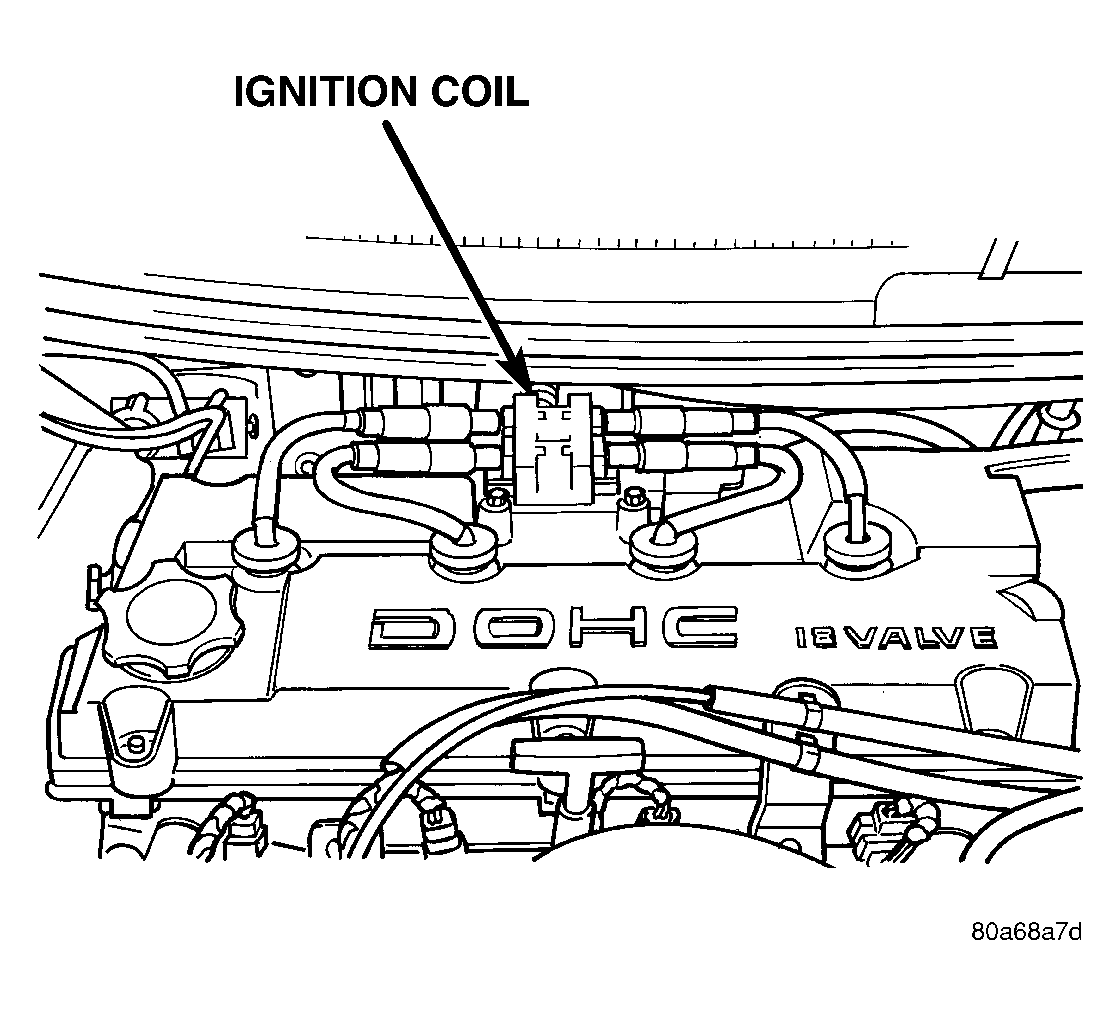

The electronic ignition coil pack attaches directly to the valve cover. See Figure.

Install coil pack on valve cover.
Install bolts and tighten bolts to 12 N.m (106 in. lbs.).

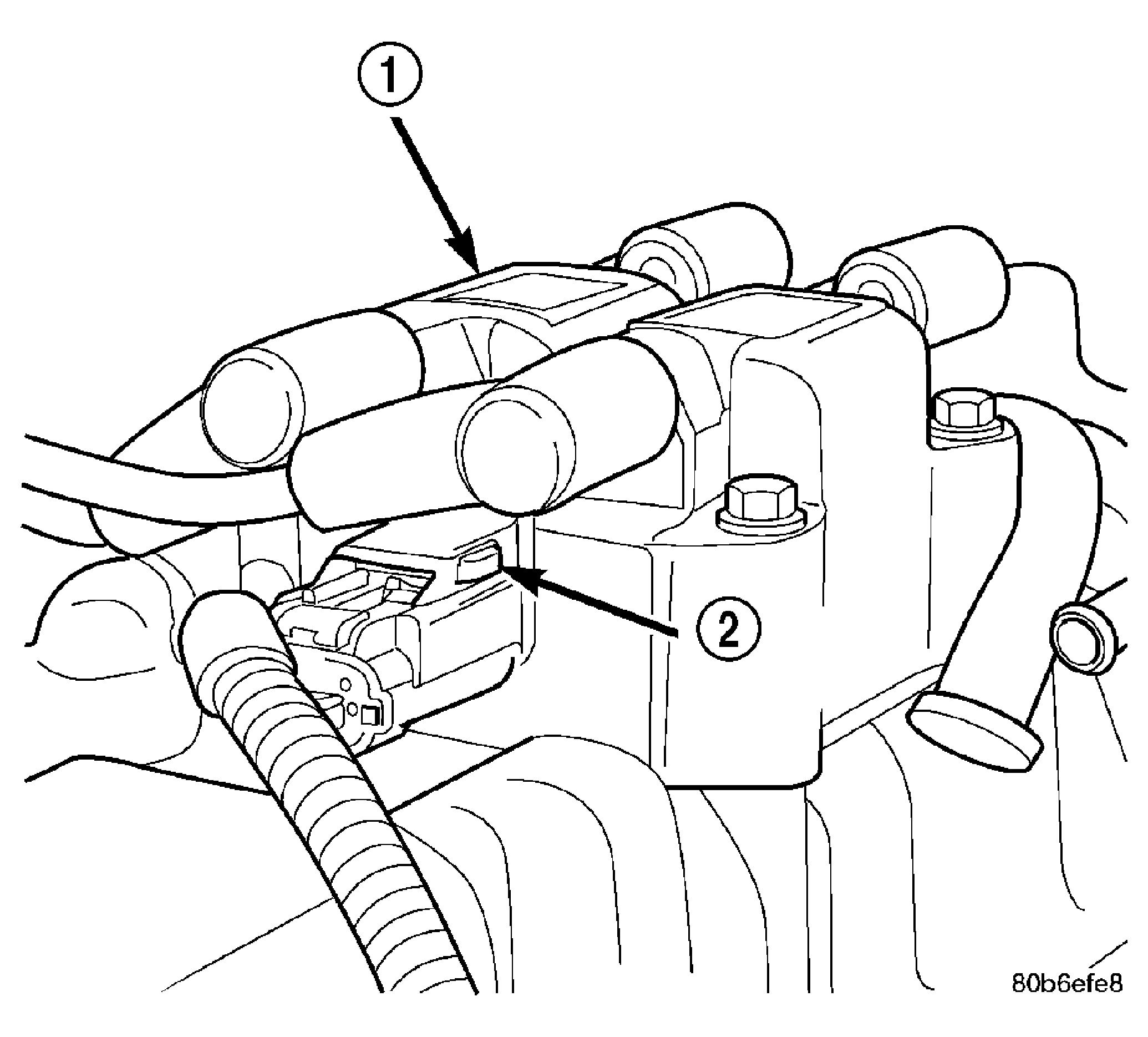

Connect the electrical connector. See Figure.
Transfer spark plug cables to new coil pack. The coil pack towers are numbered with the cylinder identification. Be sure the ignition cables snap onto the towers.
