Idle Air Control Motor: Description

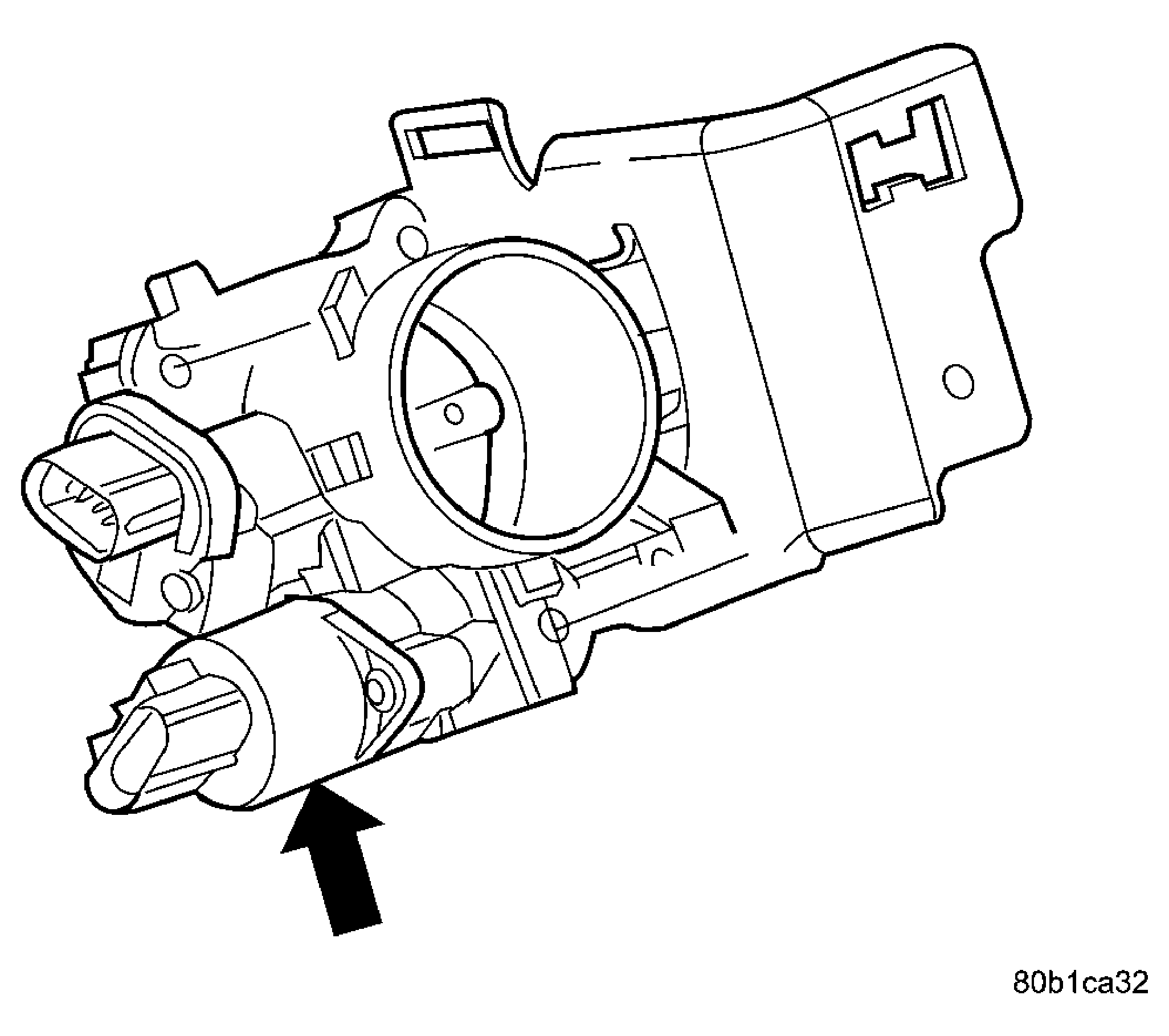

The idle air control valve (IAC) attaches to the throttle body or See Fig 1.Fig 2. It is a linear solenoid valve on the NGC vehicles.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.

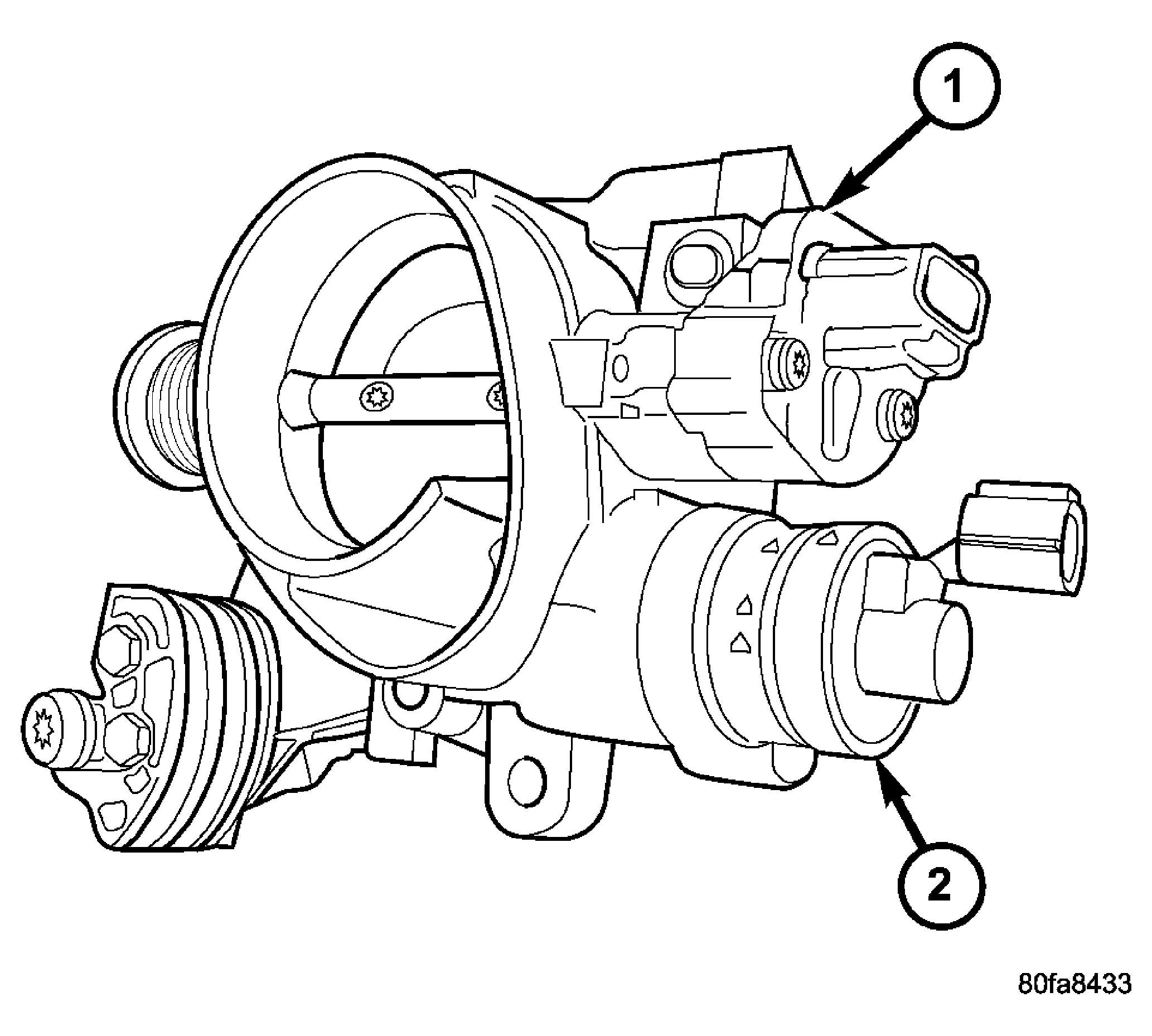

| 1 - THROTTLE POSITION SENSOR |
| 2 - IDLE AIR CONTROL VALVE |
