Fuel Tank Filler Tube: Installation

  1. Install filler neck to filler hose.
  2. Connect the fuel filler vent tube.
  3. Raise fuel tank into position.
  4. Install fuel tank straps and tighten bolts to 54 N.m (39.8 ft. lbs).
  5. Remove the transmission jack.
  6. Tighten clamps 3.6 N.m (31.8 in. lbs.).
  7. Install ground strap 8.4 N.m (75 in. lbs.).
  8. Lower vehicle.

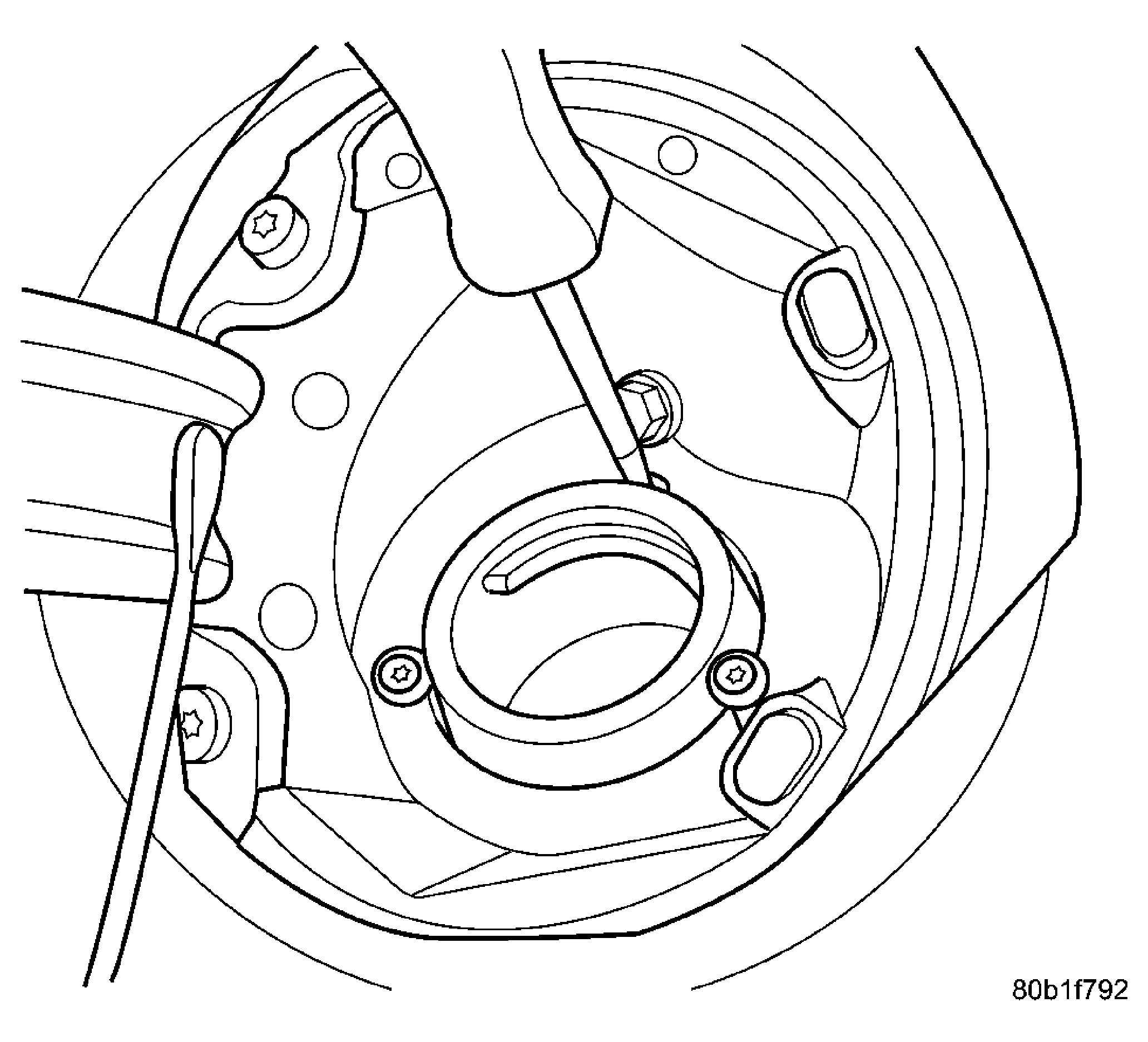

  9. Install 3 screws to filler neck and quarter panel 2.3 N.m (21 in. lbs.). See Figure.
  10. Fill tank and check for leaks.
  11. Connect negative cable from battery.
