Installation - 4 Cylinder

  1. Install generator.
  2. Install bolts and tighten.
  3. Install MAP sensor and tighten bolts.
  4. Raise vehicle and support.
  5. Install the accessory drive belt. Refer to COOLING for more information.
  6. Install the accessory drive splash shield.
  7. Lower vehicle.

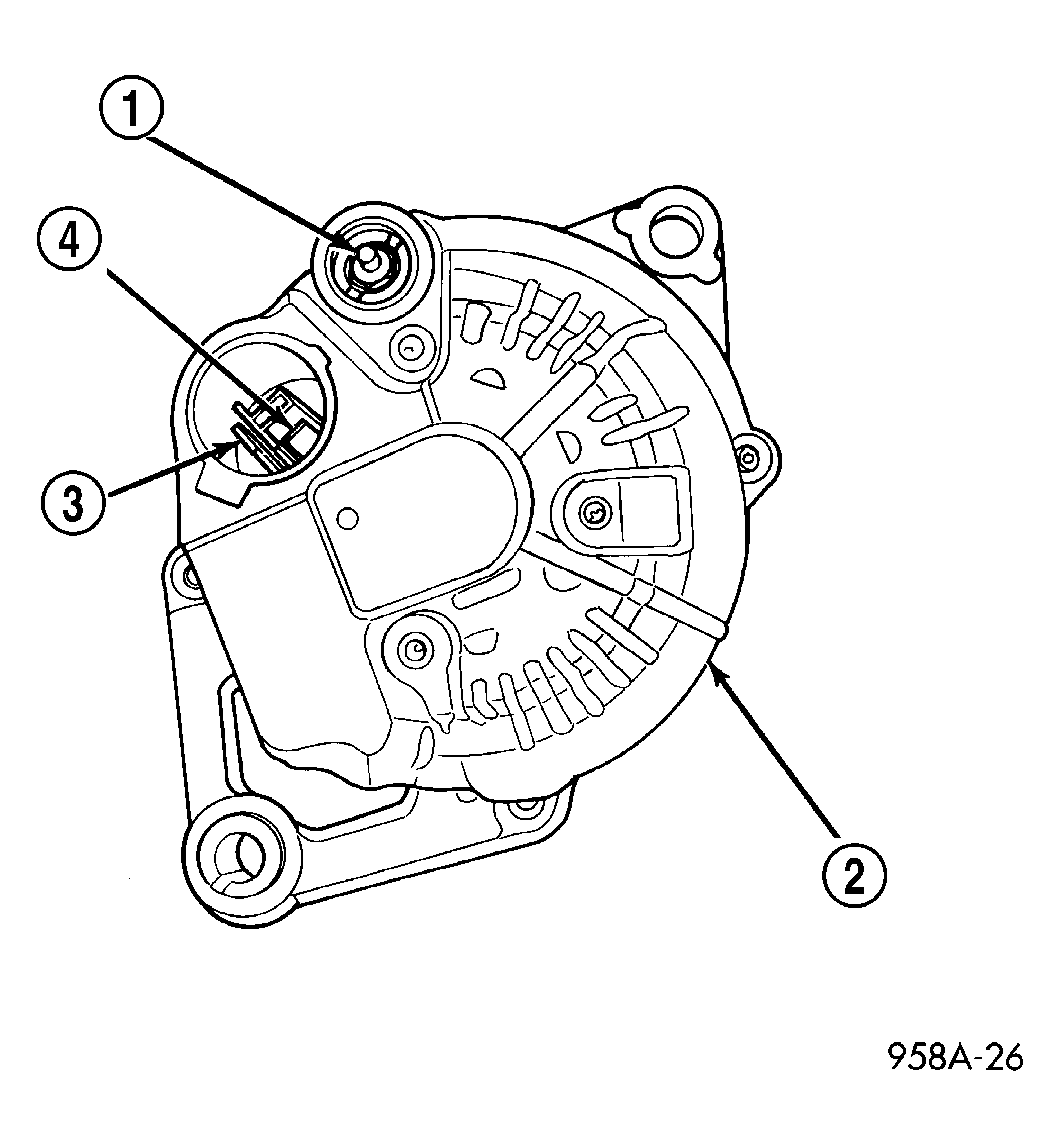

  8. Install the B+ terminal wire and nut. See Figure.
  9. Install B+ terminal cover.
  10. Plug in the field circuit to generator.
  11. Install belt cover.
  12. Install the negative battery cable.
