Center Console Power Outlet: Removal
- Disconnect and isolate the battery negative cable.

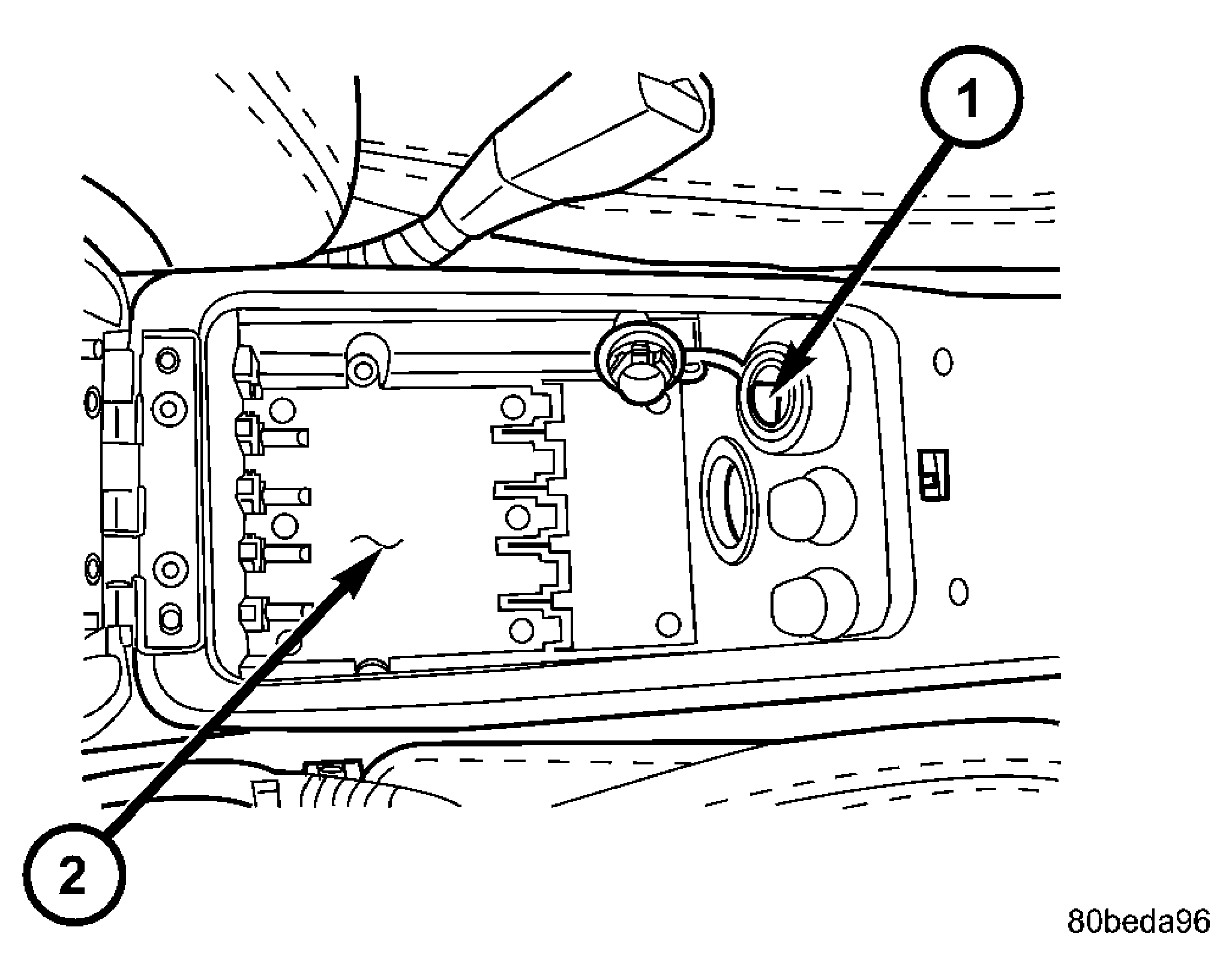

- Open the console lid. See Fig 1.
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - POWER OUTLET |
| 2 - CENTER CONSOLE |

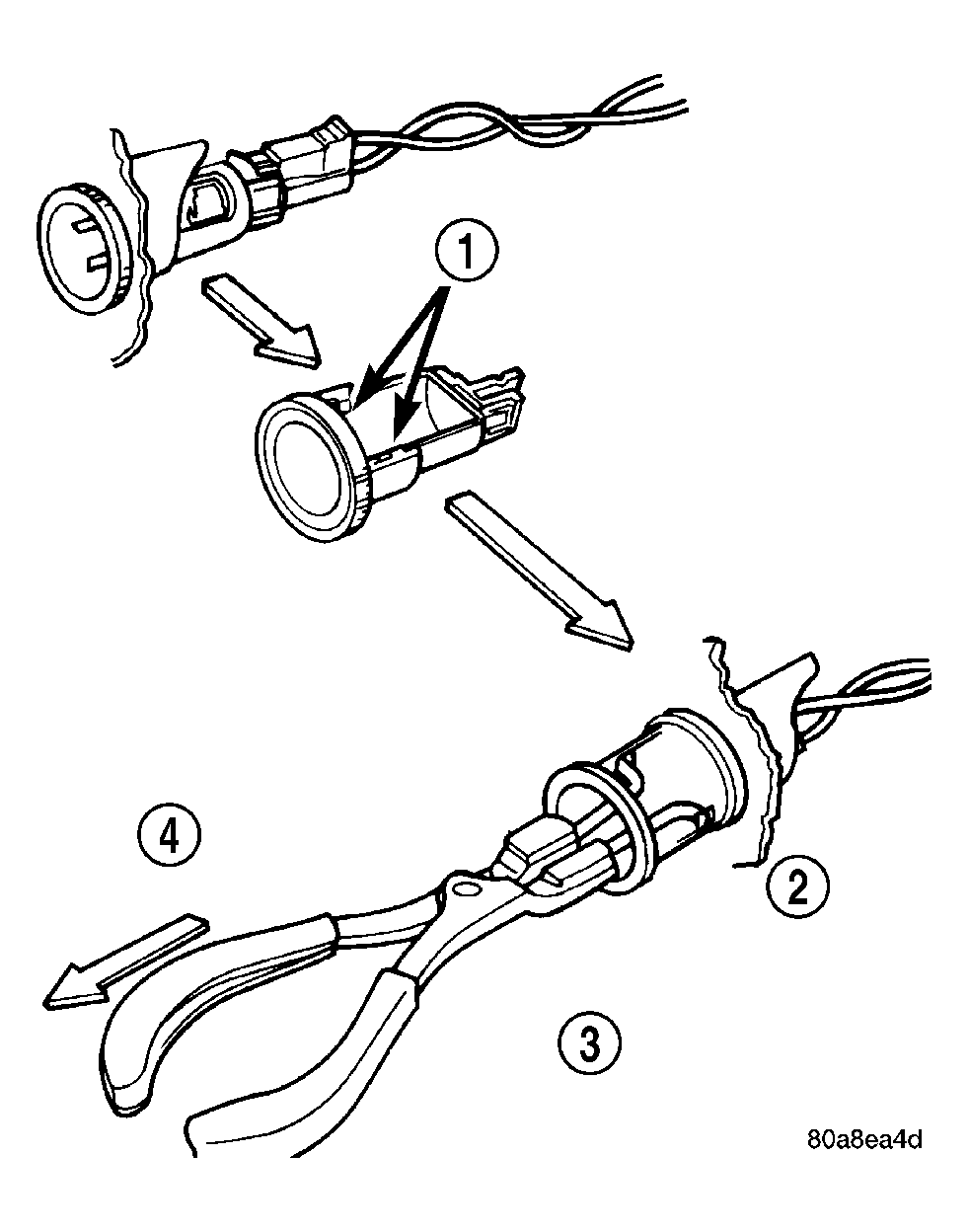

- Look inside and note position of the retaining bosses. See Fig 2.
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - RETAINING BOSSES-ENGAGE PLIERS HERE |
| 2 - PARTIALLY REMOVED |
| 3 - EXTERNAL SNAP-RING PLIERS |
| 4 - PULL BASE OUT-THROUGH MOUNTING RING |
- Using external snap ring pliers with 90 degree tips. Insert pliers with tips against bosses and squeeze forcing bosses out of base.
- Pull out the base through mounting ring by gently rocking pliers.
- Disconnect the base wires.
- Set base aside and remove base mount ring.
