Multi-Function Switch C2 - Blue 12 Way

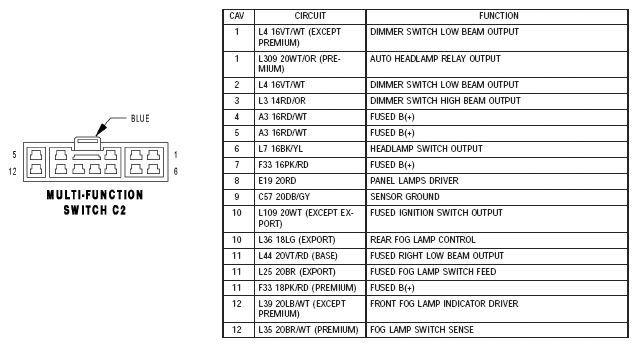

Fig 1: Identifying Connector Pinouts - Multi-Function Switch C2 - Blue 12 Way
