Alignment Specifications




ALIGNMENT SPECIFICATIONS

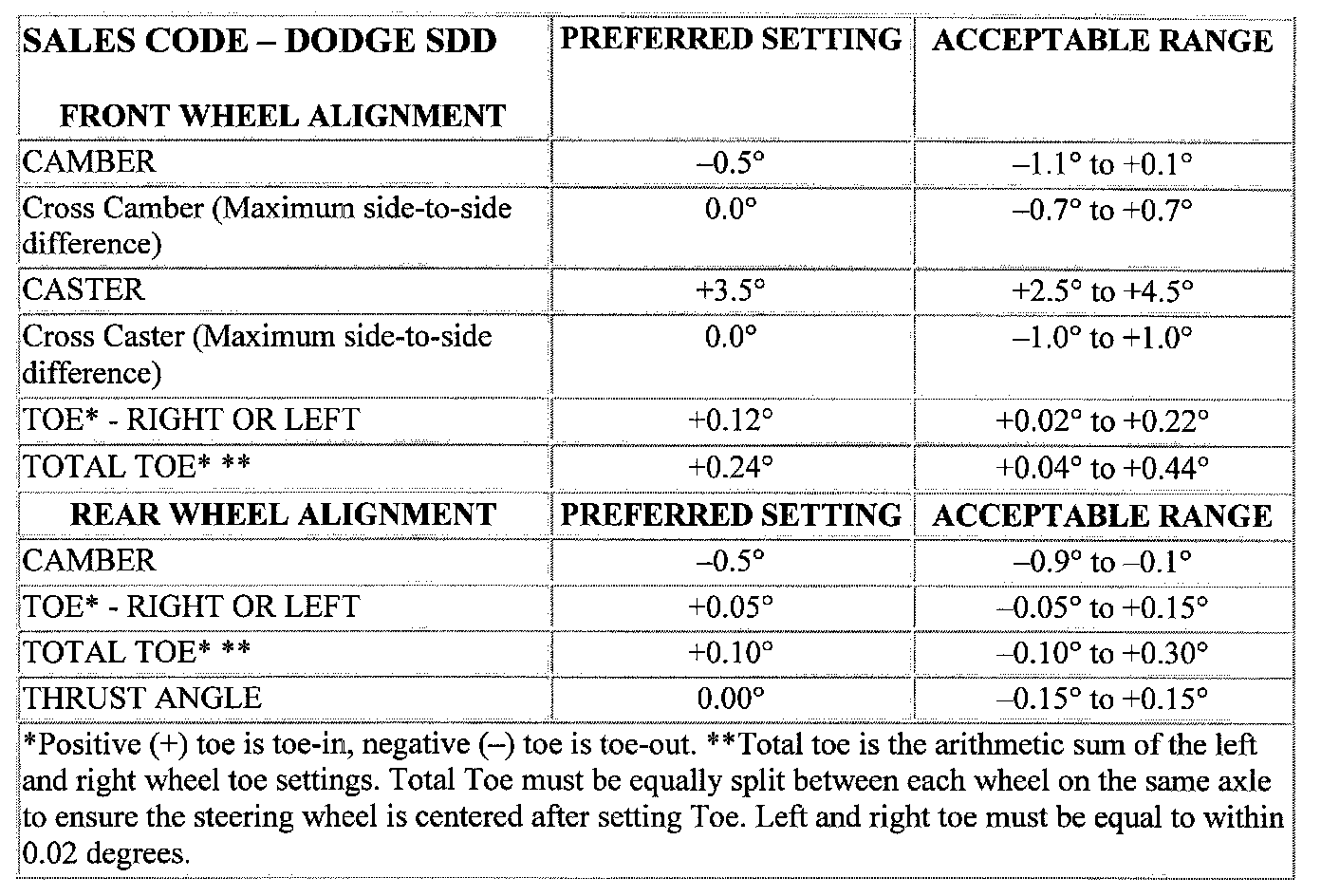

SALES CODE - DODGE SDD

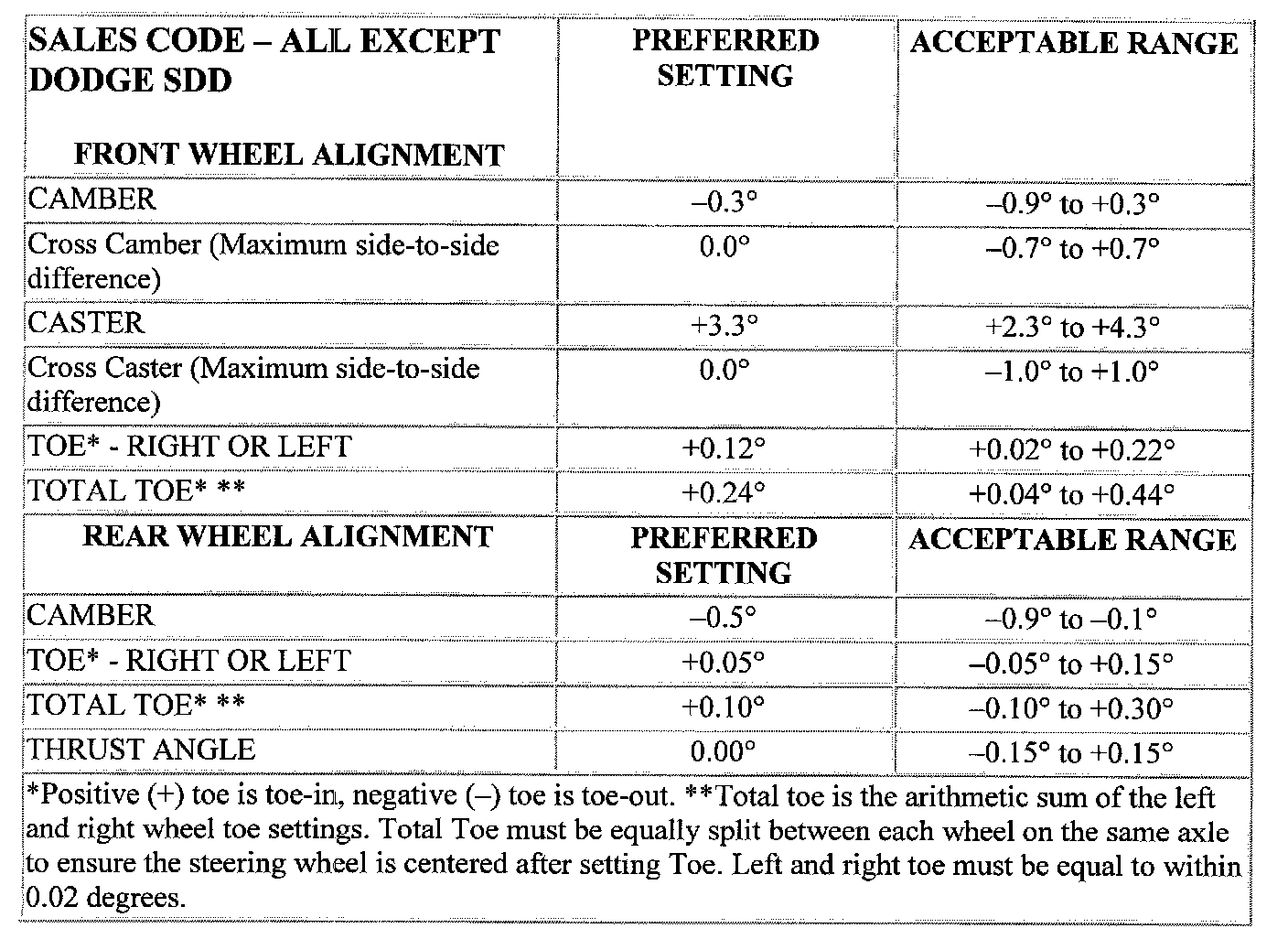

SALES CODE - ALL EXCEPT DODGE SDD






NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set with the vehicle at its proper curb height.
