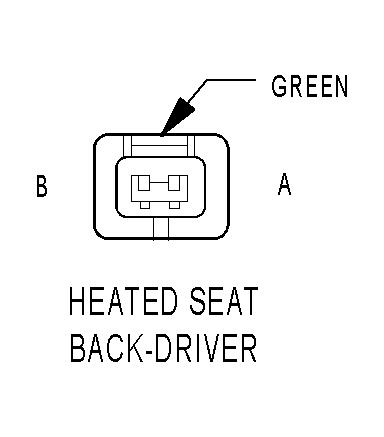

Driver Heated Seat Back Connector End View
HEATED SEAT BACK-DRIVER - GREEN 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
P88 18BK |
DRIVER HEATED SEAT DRIVER |
| B |
P94 18BK |
DRIVER SEAT HEATER GROUND |
