Rear Mode Motor (3 Zone Automatic Temperature Control) Connector End View

WARNING: This page is about a different car, the 2006 Dodge Grand Caravan, 2006 Dodge Caravan, and 2006 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

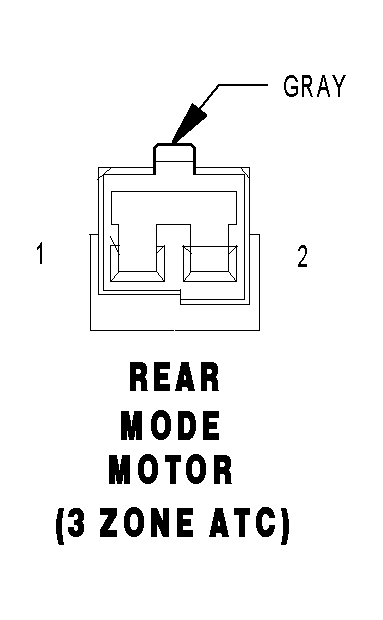

REAR MODE MOTOR (3 ZONE ATC) - GRAY 2 WAY

GCRS680388Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C154 18LB/GY REAR MODE DOOR DRIVER (B)
2 C53 18LB REAR MODE DOOR DRIVER (A)
