Engine Torque Specifications

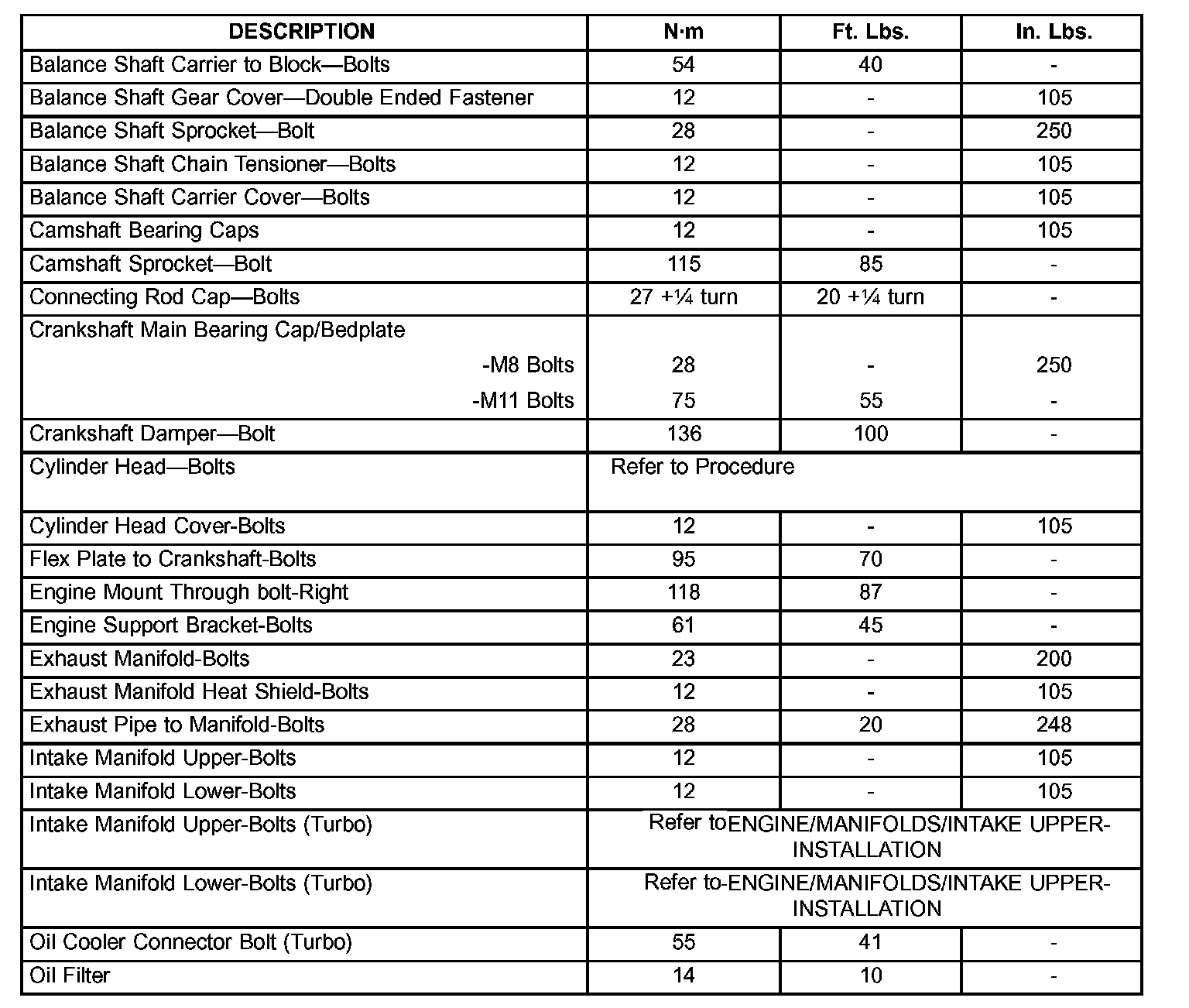

Torque Specifications

TORQUE:

TORQUE:

Water Pump Bolts 12 Nm (105 inch lbs.)
