Engine Control Module

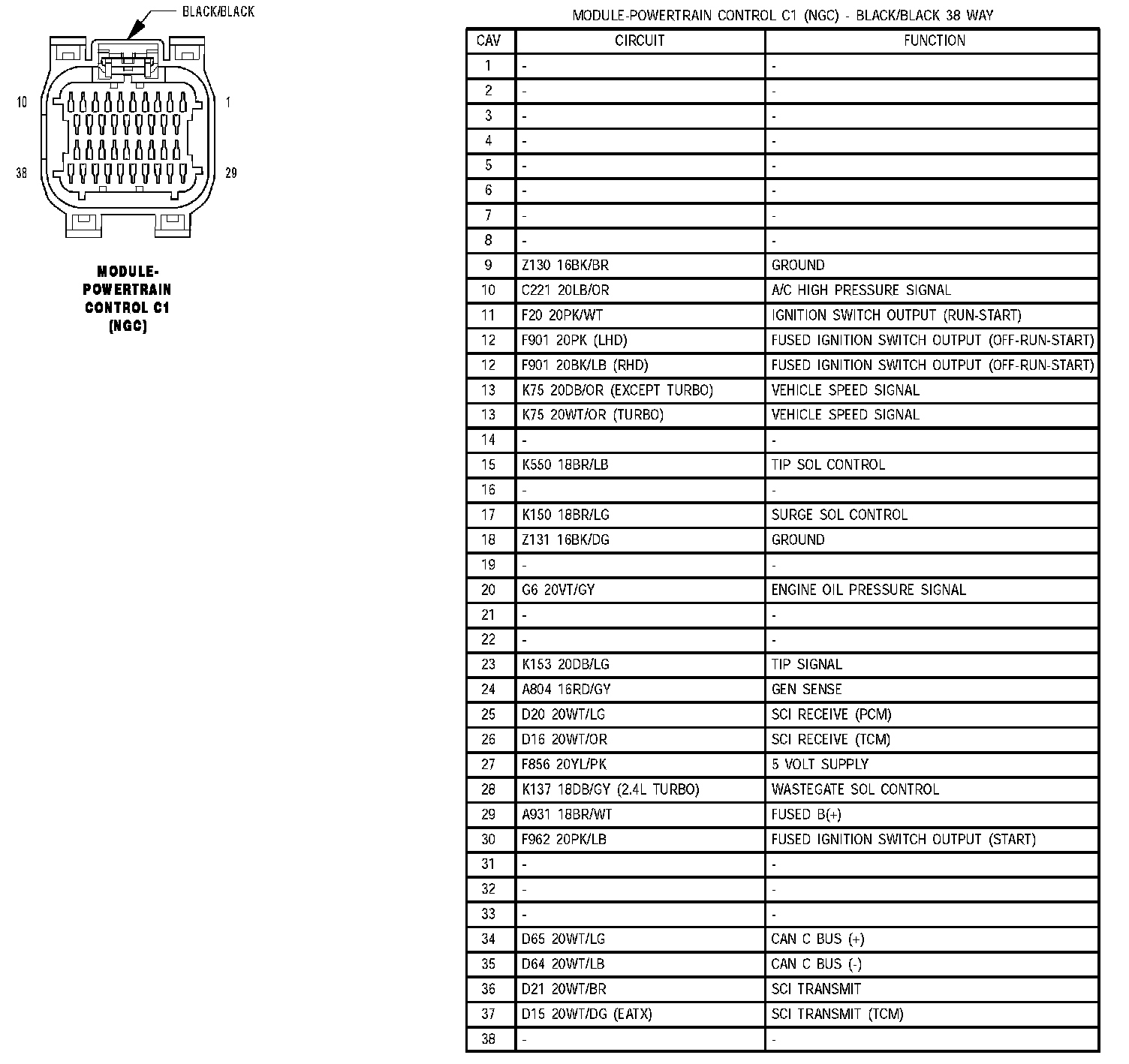

Module Powertrain Control C1 (NGC):

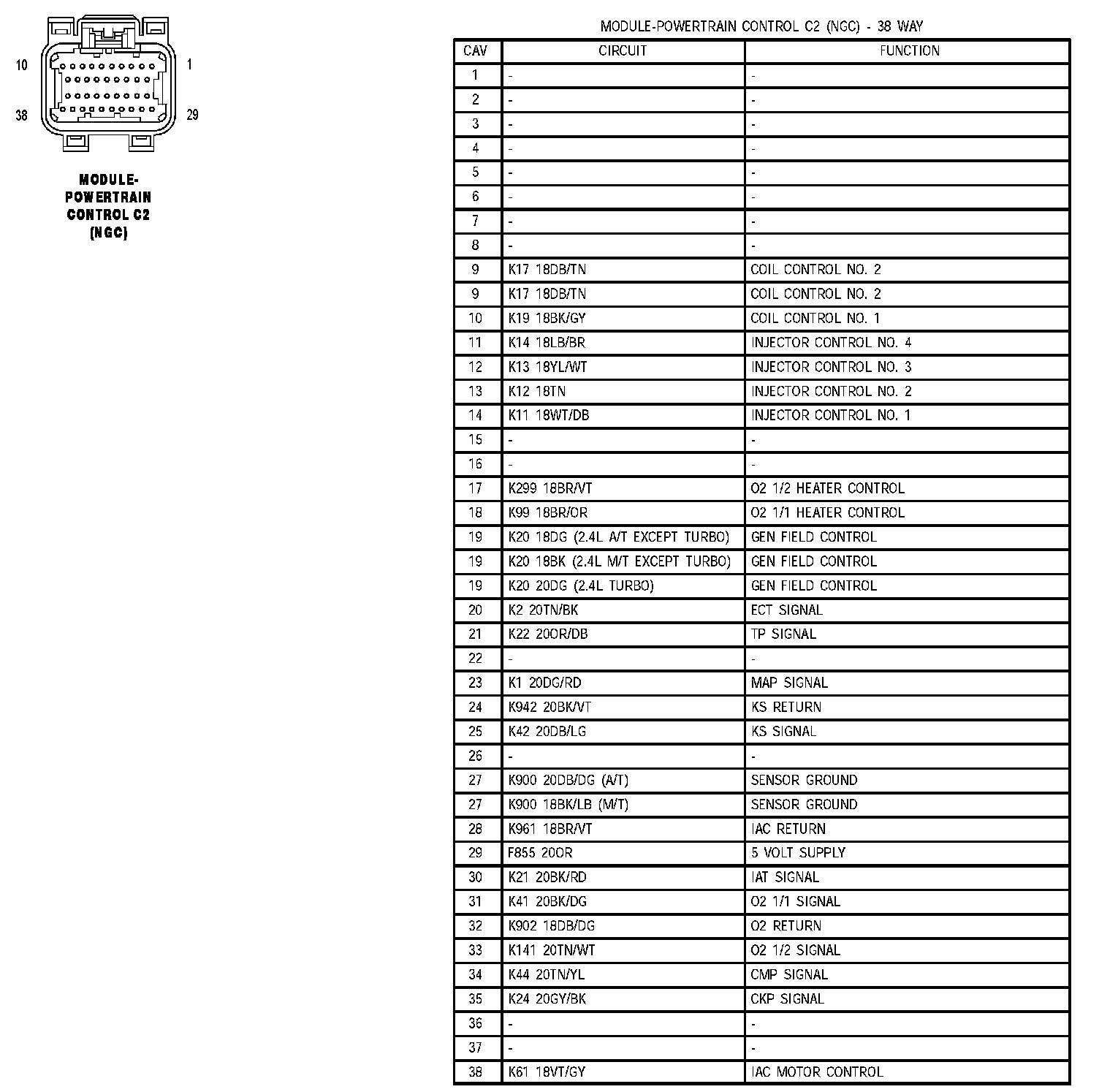

Module Powertrain Control C2 (NGC):

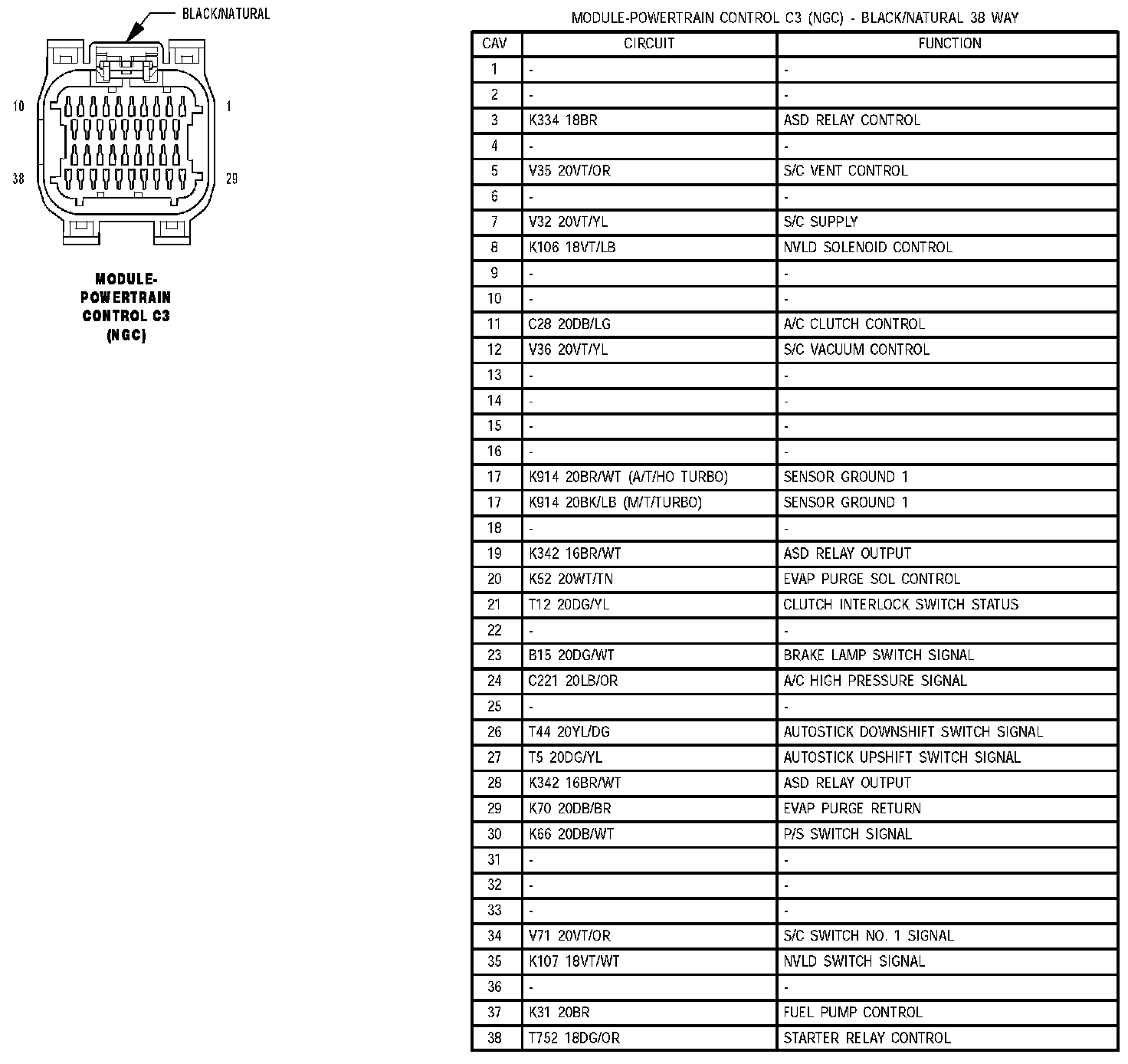

Module Powertrain Control C3 (NGC):

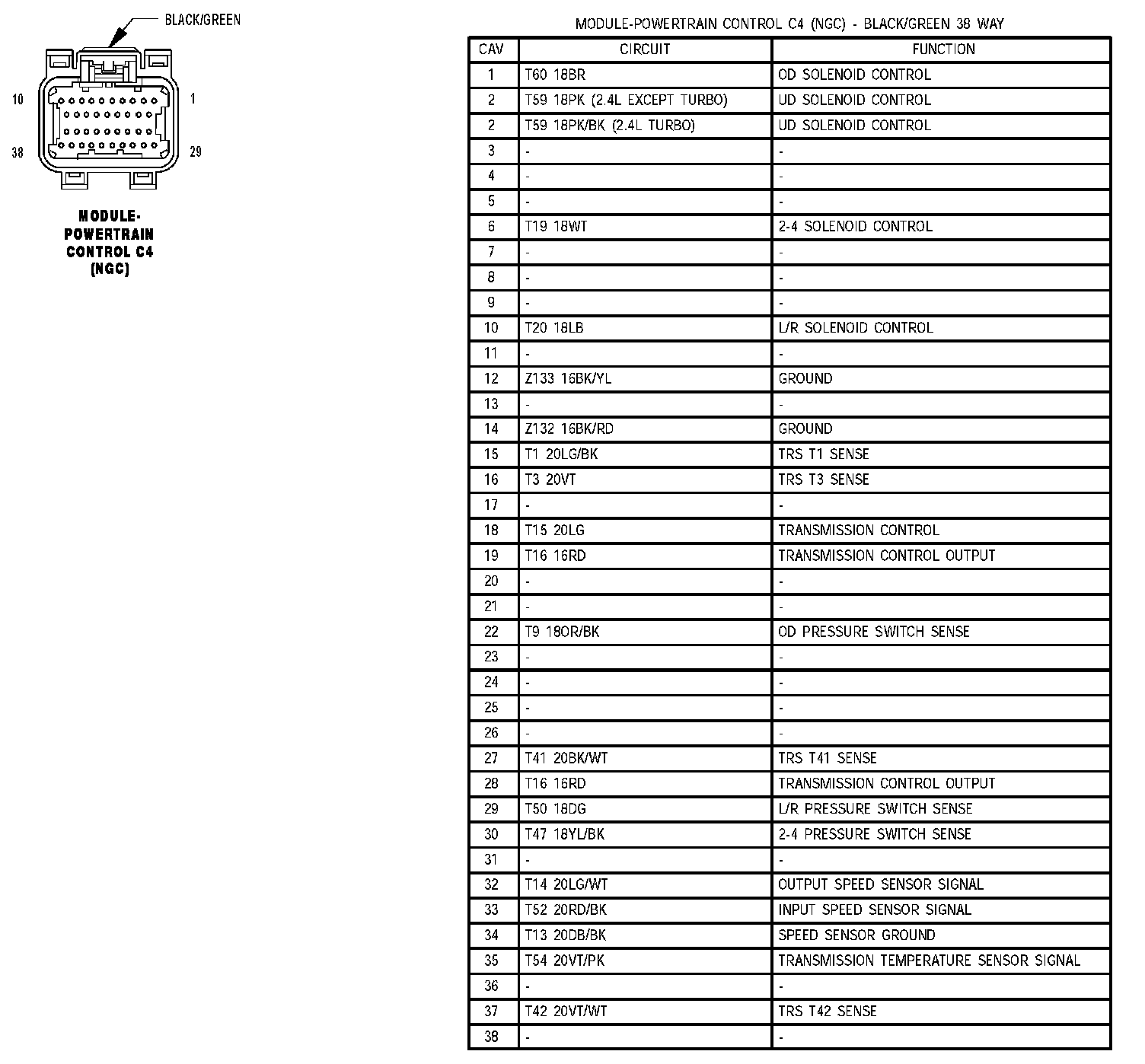

Module Powertrain Control C4 (NGC):
