Brakes and Traction Control: Specifications

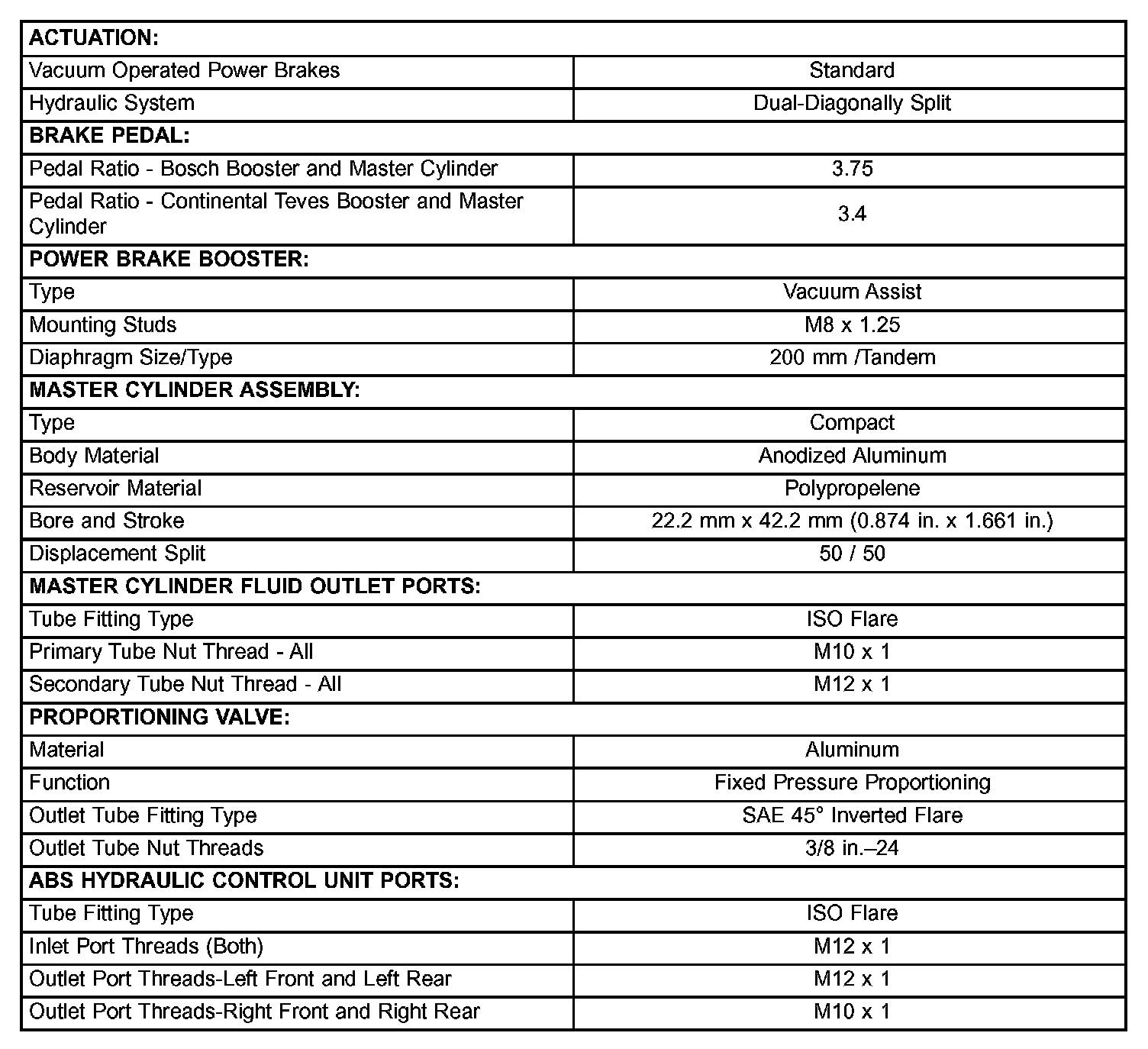

BRAKE ACTUATION:

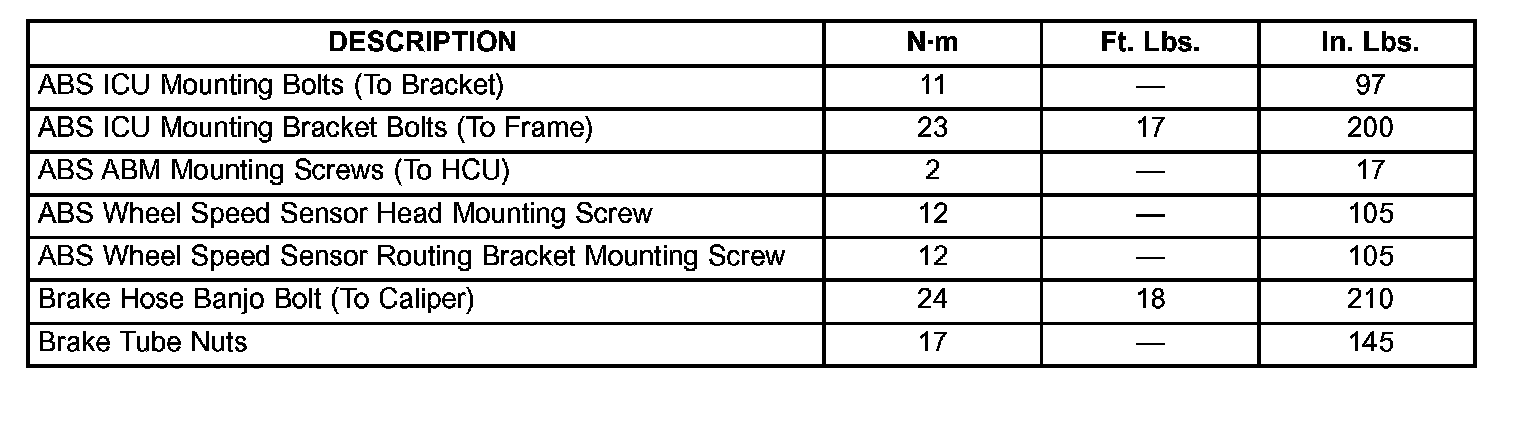

BRAKE FASTENER TORQUE:

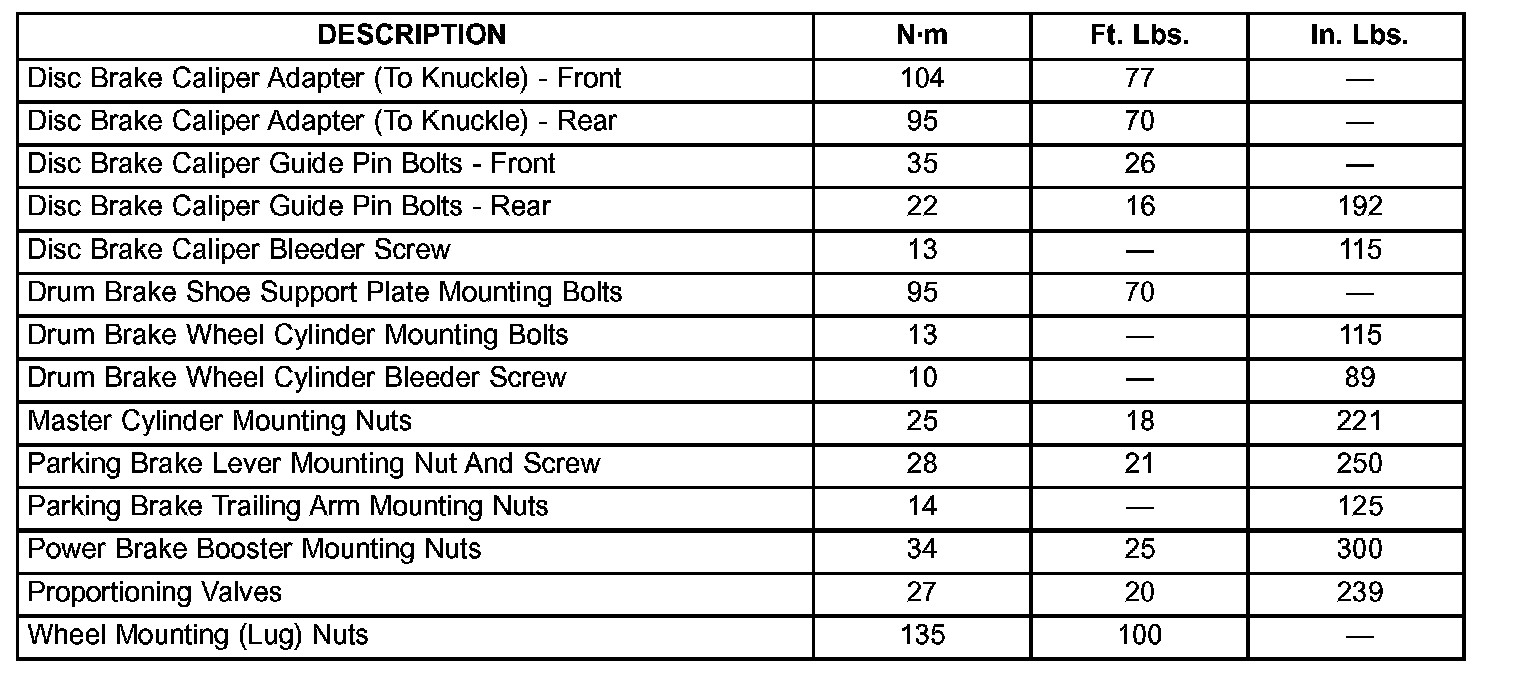

BRAKE FASTENER TORQUE:

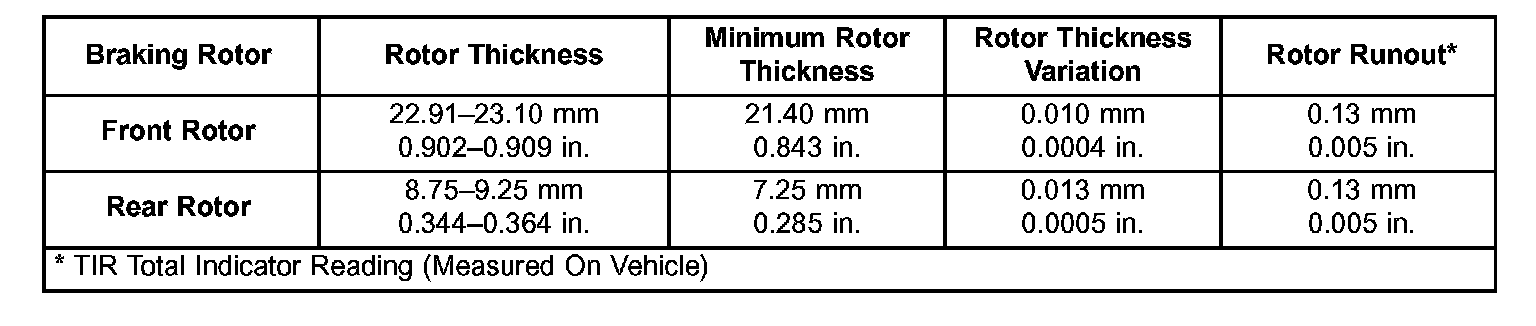

STANDARD BRAKE ROTOR (BRB/BRK/BRT) LIMITS:

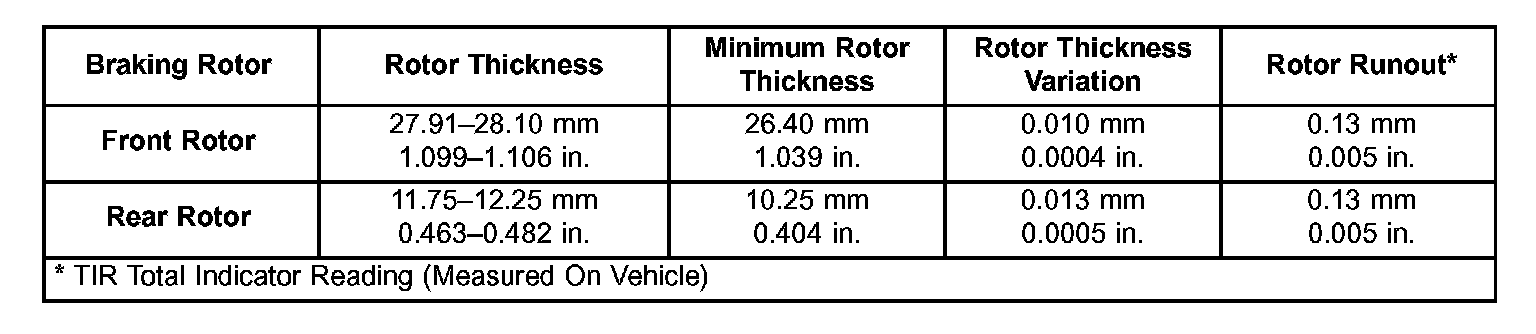

PERFORMANCE BRAKE ROTOR (BR4) LIMITS:

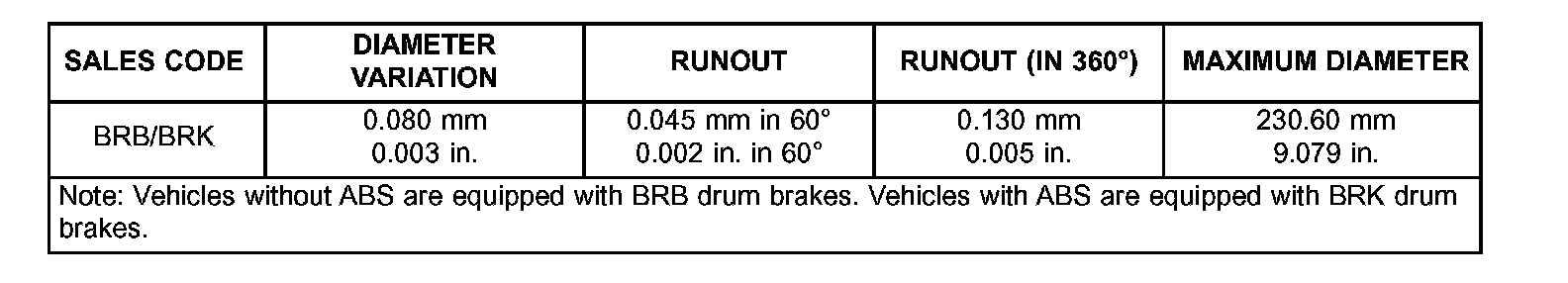

BRAKE DRUM LIMITS:
