1.6L Engine

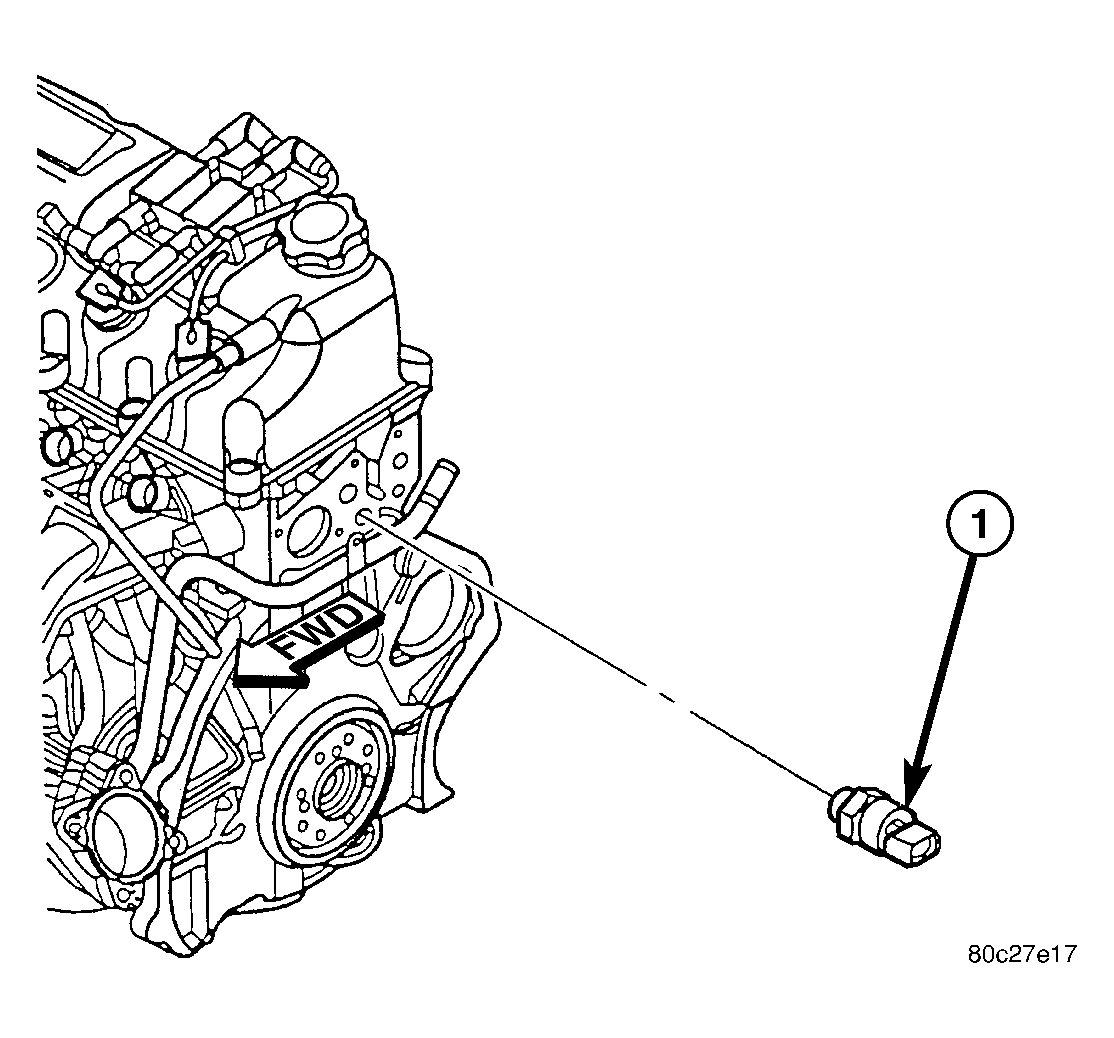

Fig 1: Engine Coolant Temperature Sensor
GC0021809Courtesy of DAIMLERCHRYSLER CORP.
1 - ENGINE COOLANT TEMPERATURE SENSOR
  1. Install engine coolant temperature sensor (1). See Figure. Tighten sensor to 17 N.m (150 in. lbs.).
  2. Reconnect coolant temperature sensor connector.
  3. Install battery.
  4. Connect positive battery cable.
  5. Connect negative battery cable.
  6. Fill cooling system, (Refer to COOLING/ENGINE/COOLANT - STANDARD PROCEDURE) .
