Manifold Air Flow (MAF) Sensor: Installation

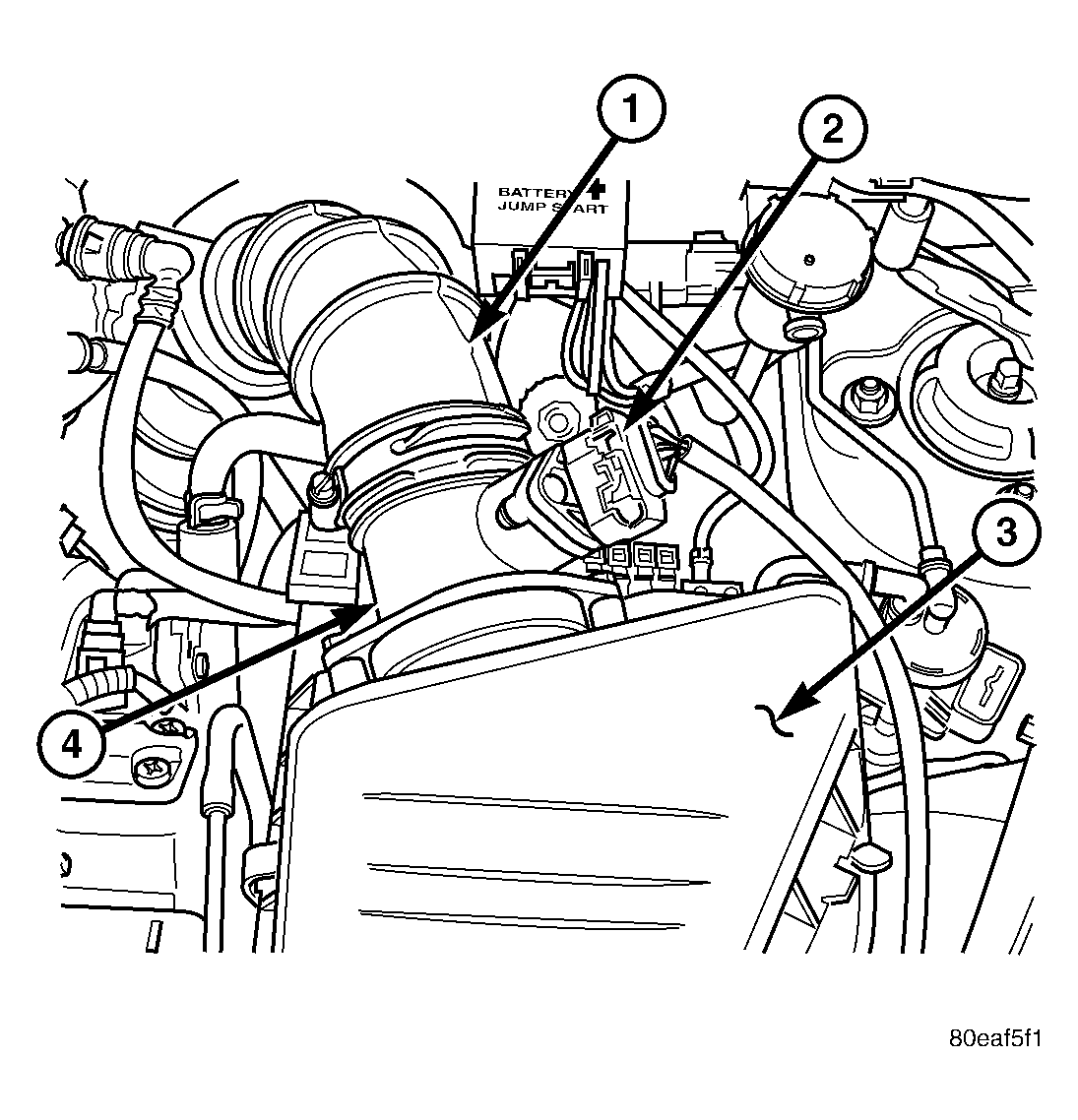

Fig 1: MAF SENSOR LOCATION

Courtesy of DAIMLERCHRYSLER CORP.

1 - AIR CLEANER TO TURBOCHARGER HOSE

2 - MAF SENSOR ELECTRICAL CONNECTOR

3 - AIR CLEANER HOUSING

4 - MAF SENSOR

Position mass air flow (MAF) sensor (4) to air cleaner housing (3) and tighten bolts. See Fig 1.
Connect air cleaner to turbocharger hose (1) at MAF sensor (4). See Fig 1.
Connect MAF sensor (4) electrical connector. See Fig 1.
Connect negative battery cable.
