Passenger Airbag On Off Switch Connector End View

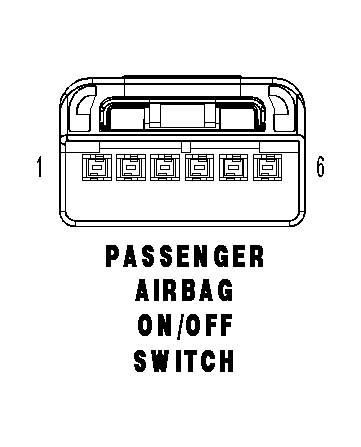

PASSENGER AIRBAG ON/OFF SWITCH - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BL/WT |
AIRBAG ON/OFF SWITCH SENSE (ON) |
| 2 |
20GY |
5 VOLT SUPPLY |
| 3 |
20YL/BL |
AIRBAG ON/OFF SWITCH SENSE (OFF) |
