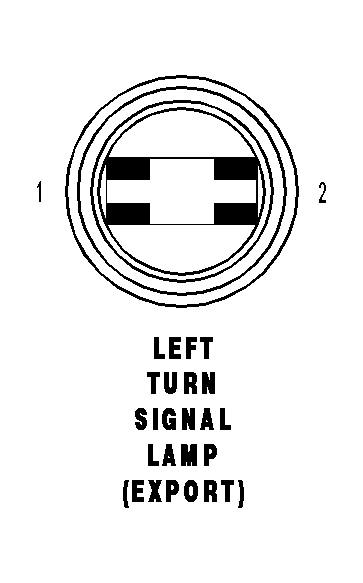

Left Turn Signal Lamp (Export) Connector End View
LEFT TURN SIGNAL LAMP (EXPORT) - 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
18BR |
GROUND |
| 2 |
18BK/WT |
LEFT TURN SIGNAL OUTPUT |
