Schematics And Diagrams

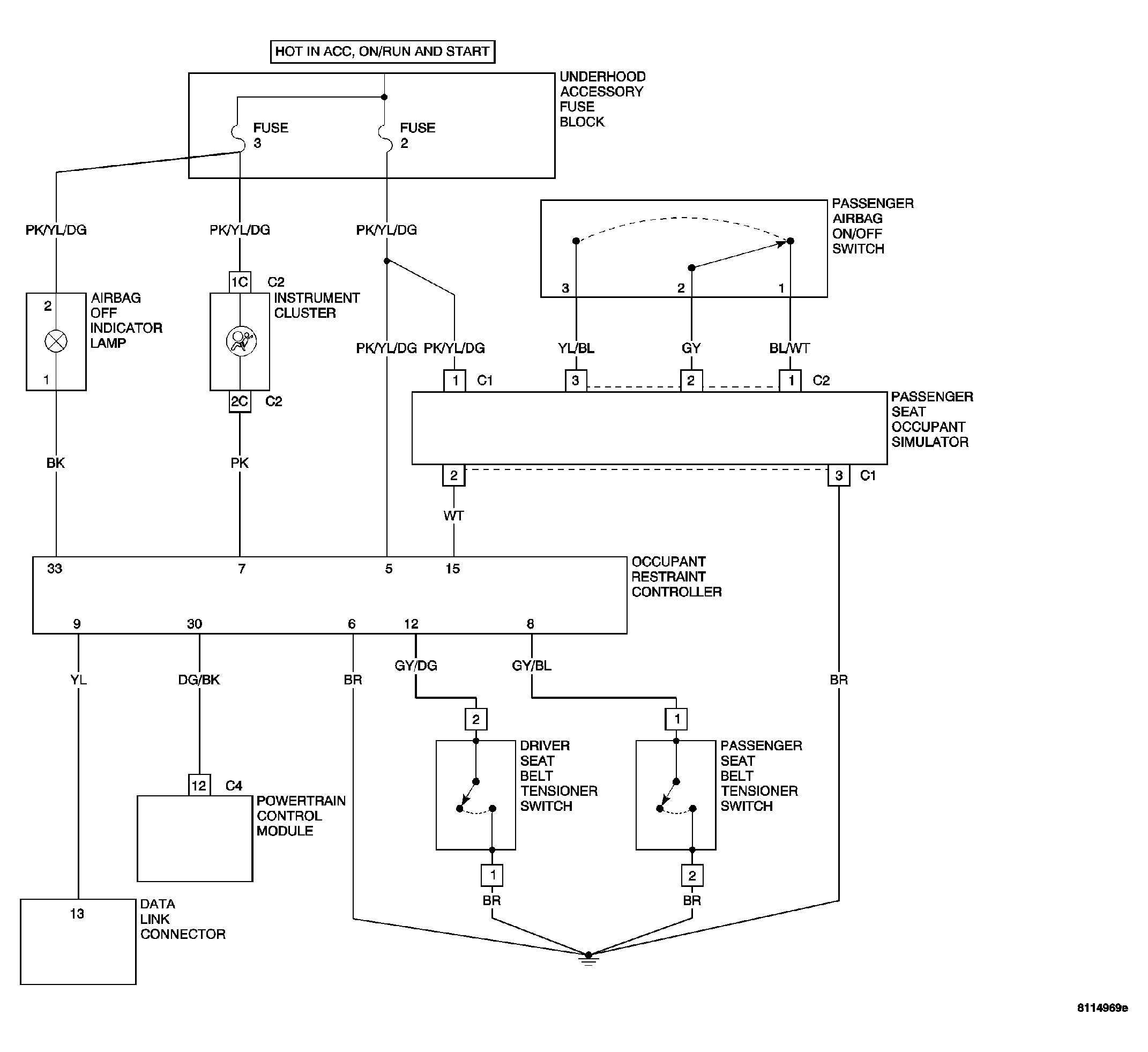

Fig 1: Restraints System Circuit Diagram (1 Of 2)
GC0035572Courtesy of DAIMLERCHRYSLER CORP.

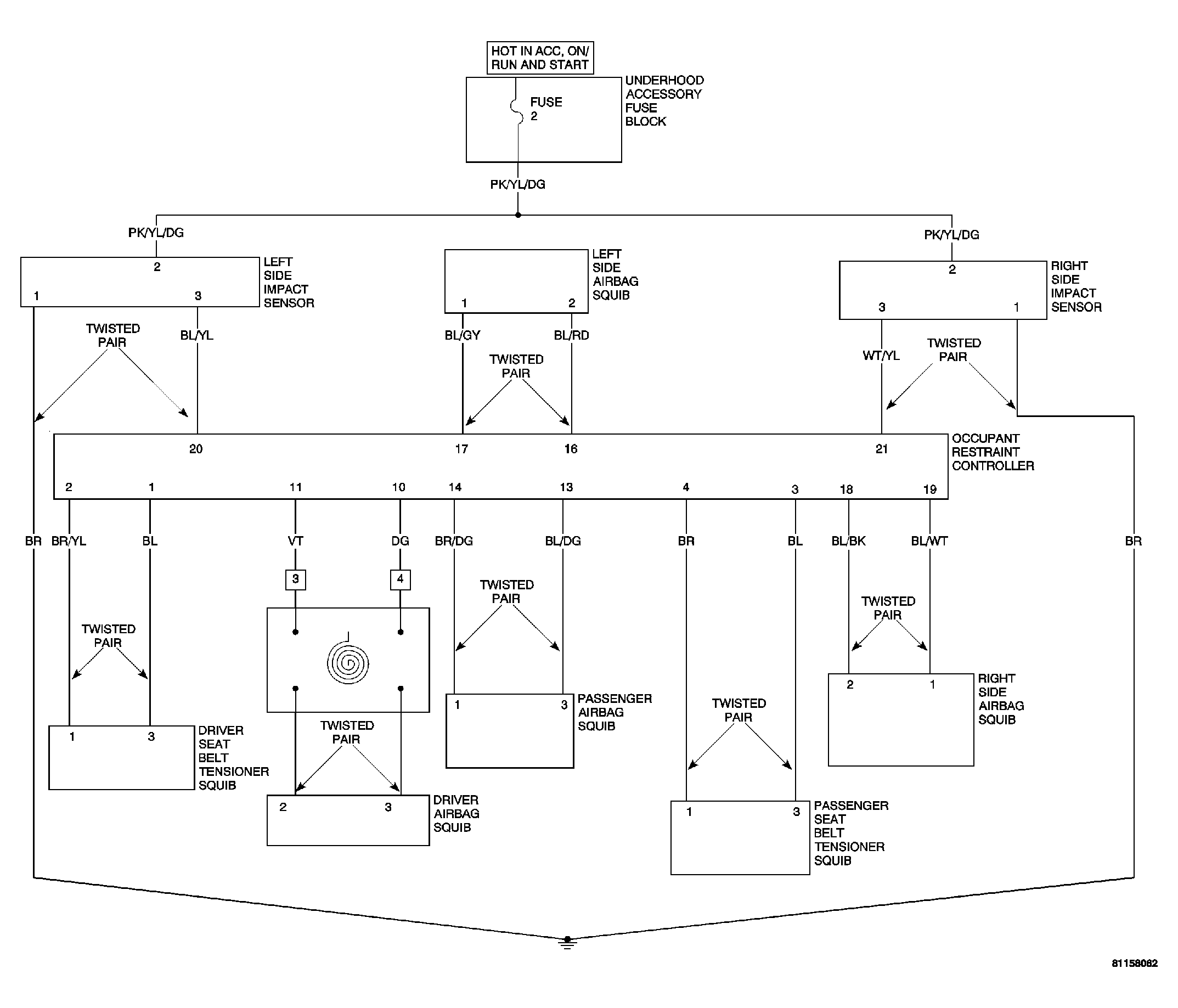

Fig 2: Restraints System Circuit Diagram (2 Of 2)
GC0035573Courtesy of DAIMLERCHRYSLER CORP.
