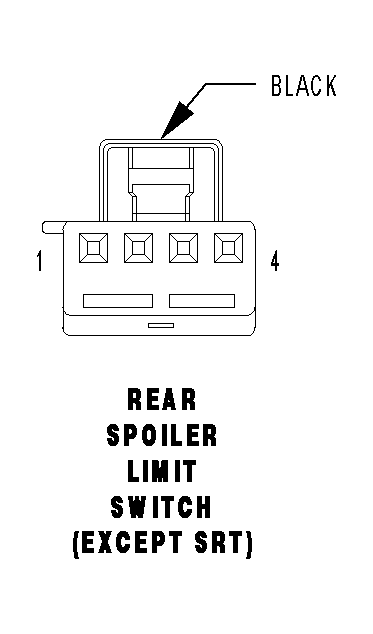

Rear Spoiler Limit Switch (Except SRT) Connector End View
REAR SPOILER LIMIT SWITCH (EXCEPT SRT) - BLACK 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
20BR |
GROUND |
| 2 |
20BR/YL |
SPOILER LIMIT SWITCH SIGNAL (DOWN) |
| 3 |
20BR/GY |
SPOILER LIMIT SWITCH SIGNAL (UP) |
| 4 |
- |
- |
