Interior & Exterior (Service Information): DECKLID/Liftgate: Liftgate: Removal

Fig 1: Identifying Liftgate Trim Panels

Courtesy of DAIMLERCHRYSLER CORP.

1. Open the liftgate.
2. Remove the trim panels (1) from the liftgate. The liftgate has two trim panels, an upper and a lower. Both trim panels must be removed to access the liftgate's harness connectors. (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - REMOVAL) .
3. Disconnect the following harness connections:
   • Right and left defroster harness connections.
   • Right and left license plate lamp harness connections.
   • Ground lug G302.
   • Antenna amplifier harness connector.
   • Rear liftgate lock switch.
   • Pneumatic lock air line.
   • Center High Mounted Stop Lamp (CHMSL) harness connector.
   • Rear spoiler limit switch and motor harness connectors.

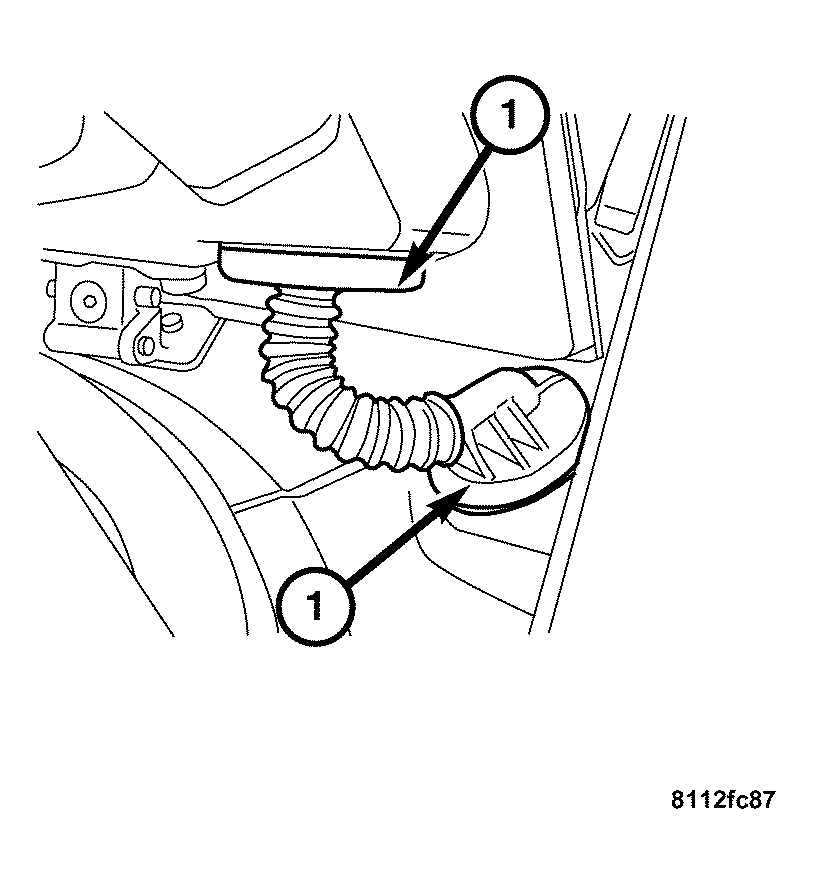

   Fig 2: Identifying Rubber Grommets

   Courtesy of DAIMLERCHRYSLER CORP.
4. Remove the rubber grommet (1) from the liftgate. Then pull the harness through the access hole.
5. Remove the headliner. (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .

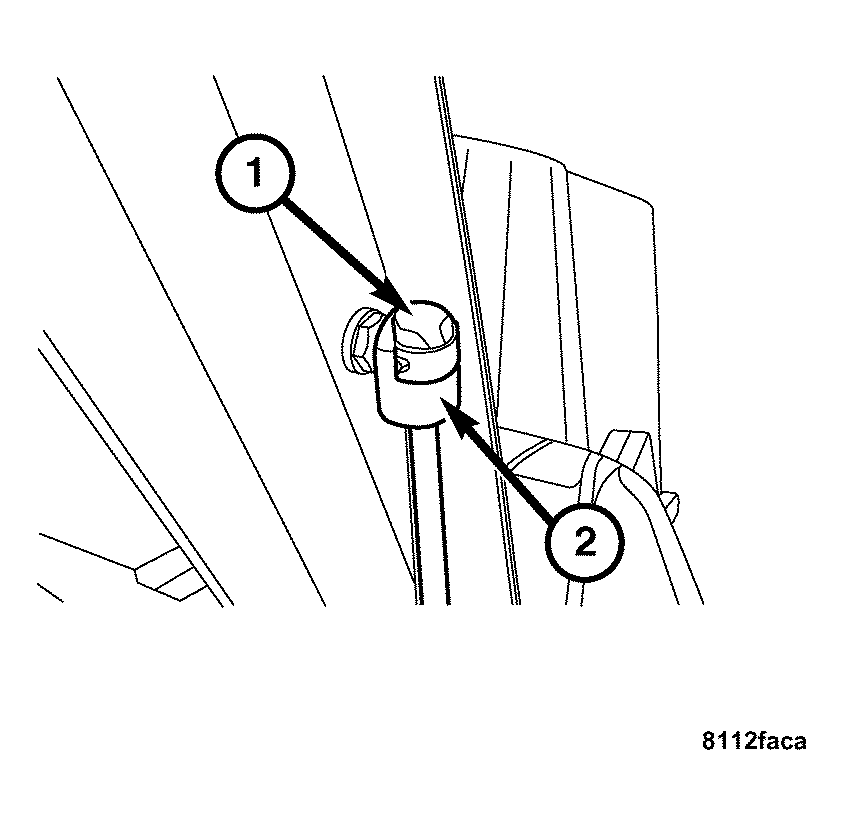

   Fig 3: Identifying Gas Prop Lock Cap & Gas Prop

   Courtesy of DAIMLERCHRYSLER CORP.
6. Using a suitable propping device, prop the liftgate up and remove the gas prop (2) from its mount point (1).
   Fig 4: Removing/Installing Hinge

   Courtesy of DAIMLERCHRYSLER CORP.
7. Have a helper hold the liftgate and remove the two bolts (2) from each hinge under the roof of the vehicle, leaving the hinge bolts (1) attached to the liftgate.
8. Carefully lift the liftgate off the body and then set it down on a clean dry surface.
