Chrysler
>>
2006
>>
300 Limited, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - DTCS P0196 To P0325
>>
Diagnosis And Testing
>>
P0207-Fuel Injector 7 Circuit
>>
Circuit Schematic
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Schematic

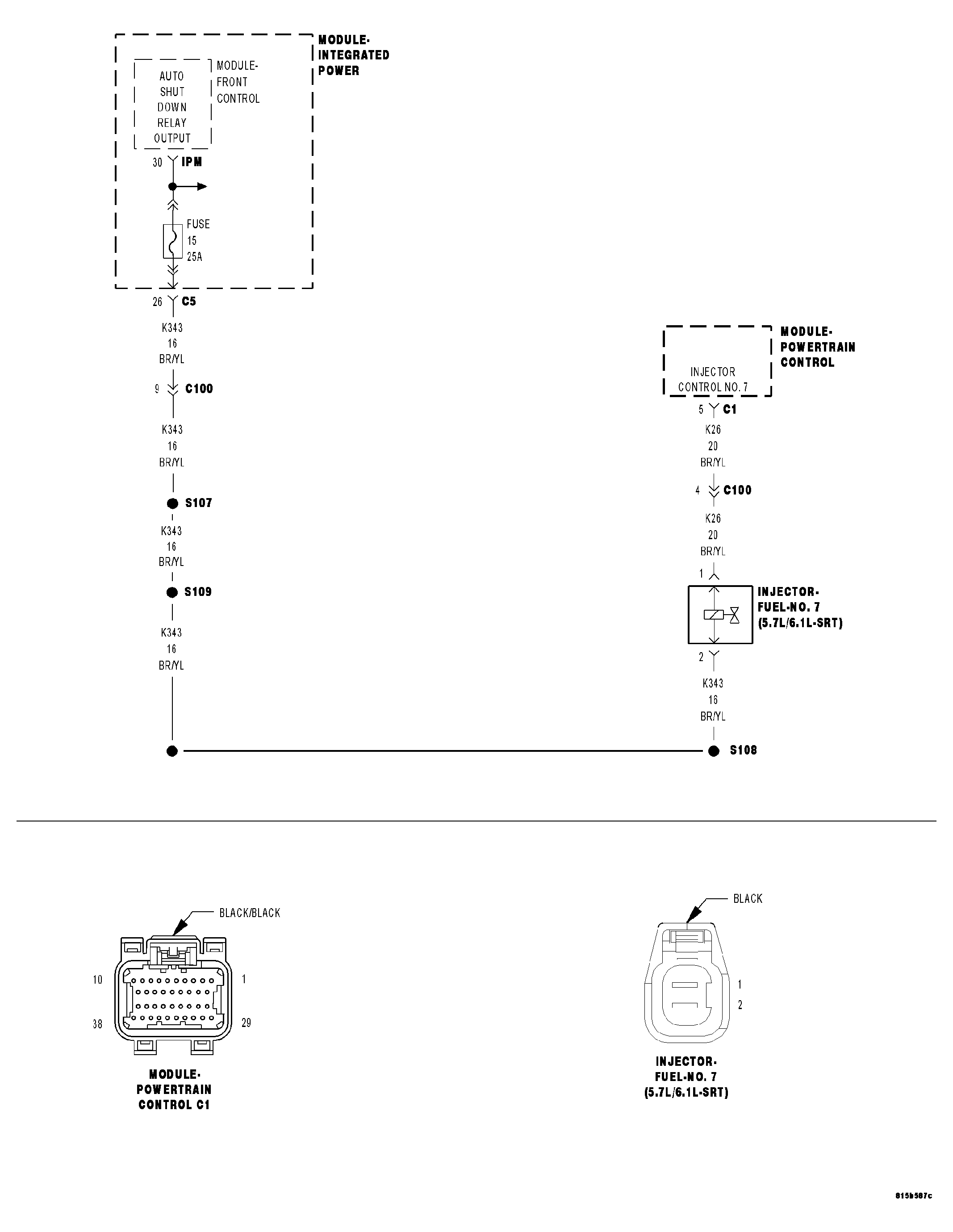

Fig 1: Fuel Injector 7 Circuit Schematic
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
