Chrysler
>>
2006
>>
300 C, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - DTCS P0700 To P1897
>>
Diagnosis And Testing
>>
P1004-Short Runner Valve Control Performance
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

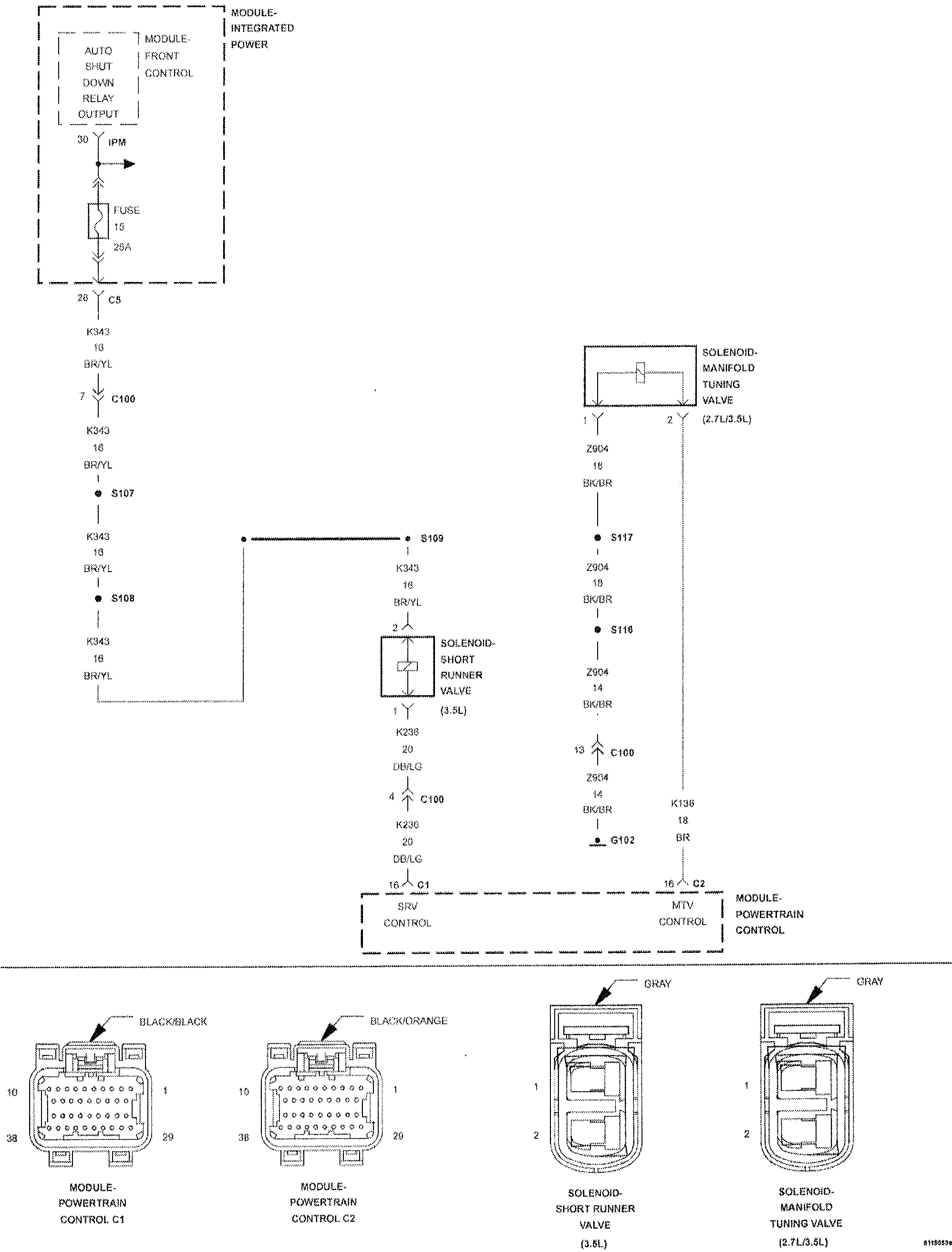

Fig 1: Short Runner Valve Control Circuit Schematic
Courtesy of CHRYSLER LLC
