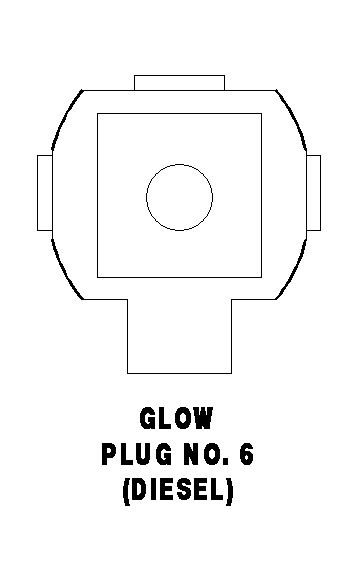

Glow Plug 6 (Diesel) Connector End View
GLOW PLUG NO. 6 (DIESEL) - 1 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A216 16BK/WT
GLOW PLUG NO. 6 CONTROL
Courtesy of DAIMLERCHRYSLER CORP.
