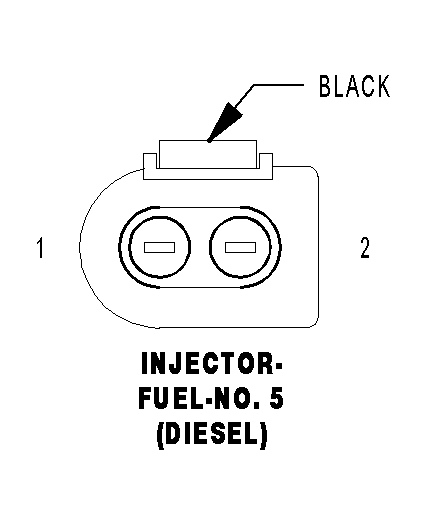

Fuel Injector 5 (Diesel) Connector End View
INJECTOR-FUEL-NO. 5 (DIESEL) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K638 16BK/DG |
FUEL INJECTOR NO. 5 LOW-SIDE CONTROL |
| 2 |
K38 16BL/DG |
FUEL INJECTOR NO. 5 HIGH-SIDE CONTROL |
