Engine Mounting-Front: Removal: Notes

WARNING: This page is about a different variant/trim than selected.

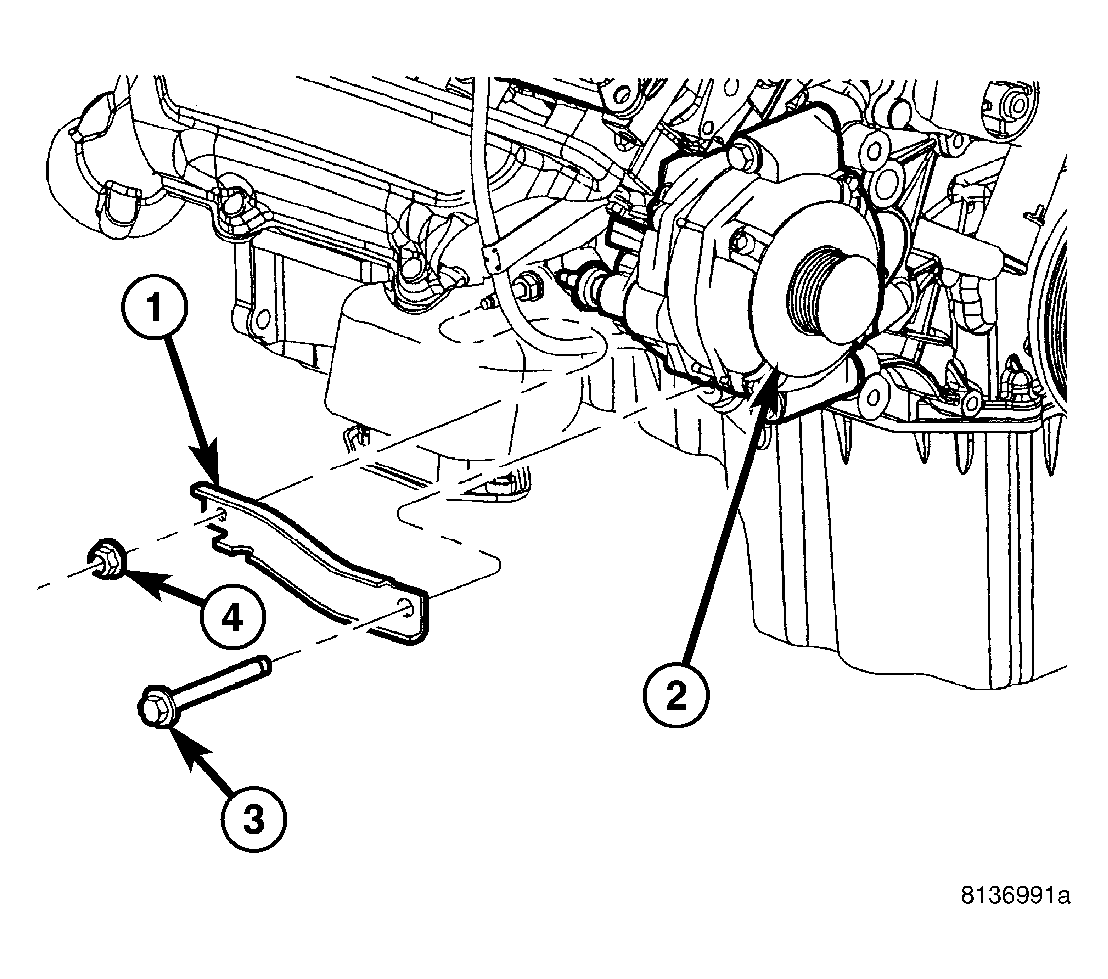

Fig 1: Generator Support Bracket-5.7L

GC0015464

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect negative battery cable.
Raise vehicle.

Remove the generator support bracket (1).

Fig 2: Engine Hydromount LH

GC0015463

Courtesy of DAIMLERCHRYSLER CORP.

1 - Bolt

2 - Hydromount

3 - Studs

Fig 3: Engine Hydromount RH

GC0015462

Courtesy of DAIMLERCHRYSLER CORP.

1 - Studs

2 - Nut

3 - Hydromount

4 - Studs

Remove hydromount to frame studs (3,4) and nuts.
Raise engine using suitable jack.
Remove hydromount to bracket fasteners (1,2).
Remove hydromount from engine.

Fig 4: Engine Mount Bracket LH
Courtesy of DAIMLERCHRYSLER CORP.

1 - Engine Mount Bracket

2 - Bolt

Fig 5: Engine Mount Bracket RH
Courtesy of DAIMLERCHRYSLER CORP.

1 - Engine Mount Bracket

2 - Bolt
Remove engine mount brackets (1), if needed.
