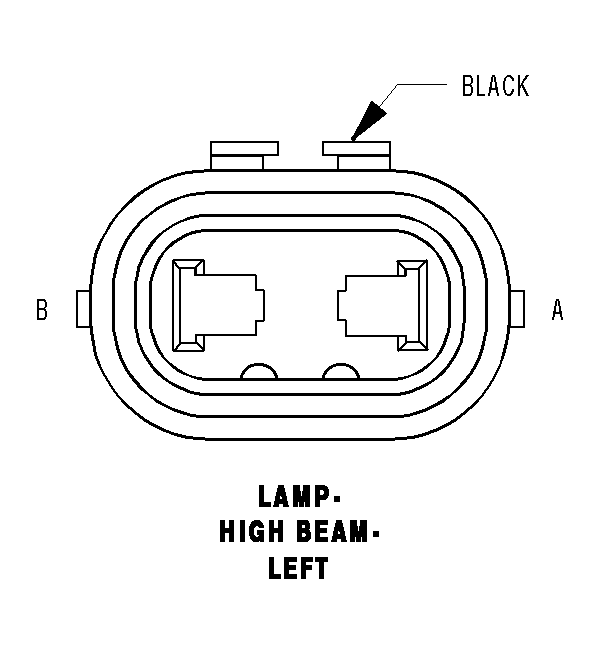

Left High Beam Lamp Connector End View
LAMP-HIGH BEAM-LEFT - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
L33 18WT/LG |
LEFT HIGH BEAM DRIVER |
| B |
Z902 18BK/LB |
GROUND |
