41TE Automatic Transaxle

41TE TRANSAXLE

SPECIFICATIONS





GENERAL SPECIFICATIONS





GEAR RATIOS





BEARING SETTINGS (END PLAY & TURNING TORQUE)





CLUTCH CLEARANCES





OIL PUMP CLEARANCES





INPUT SHAFT

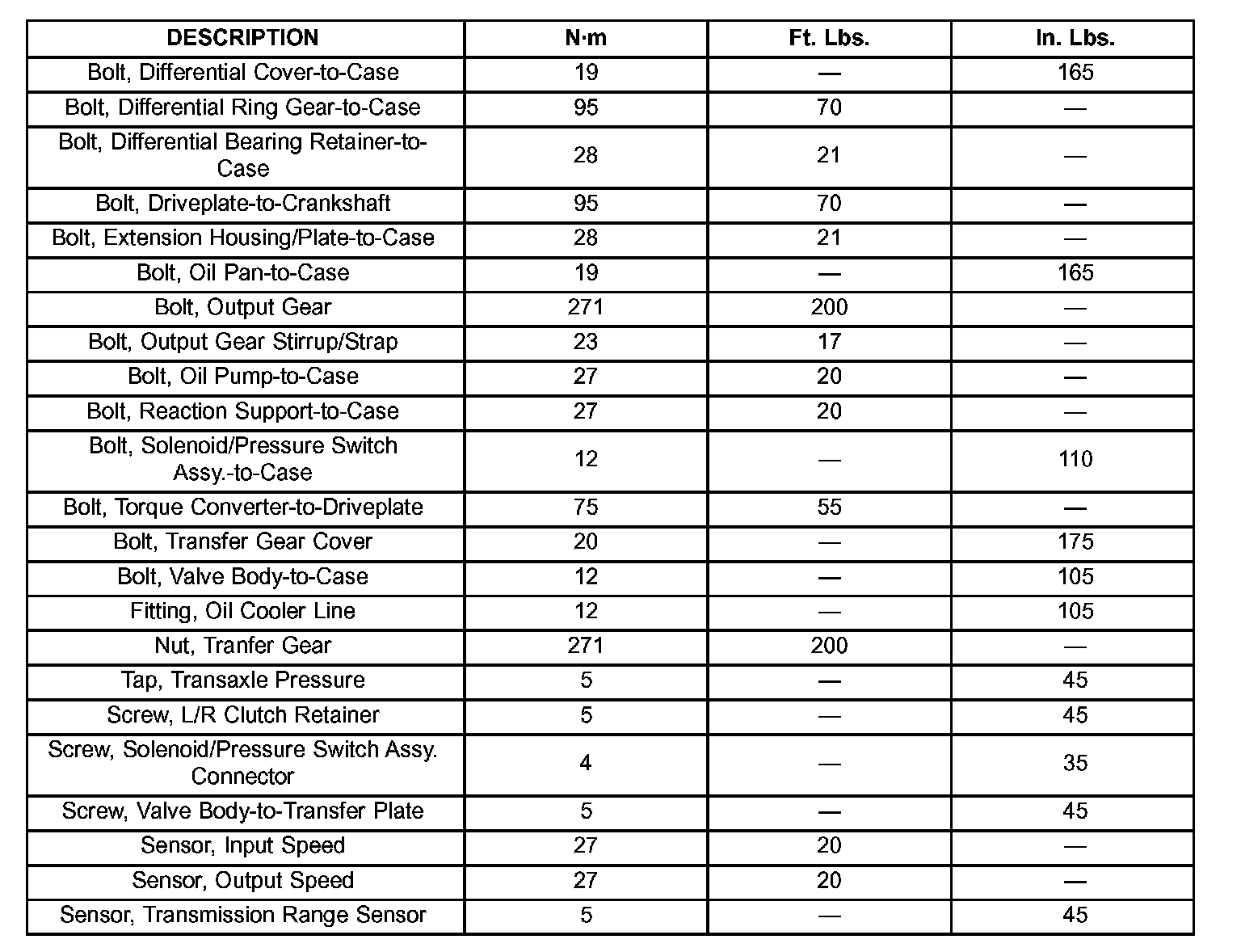

TORQUE SPECIFICATIONS
