Disassembly And Assembly: Notes

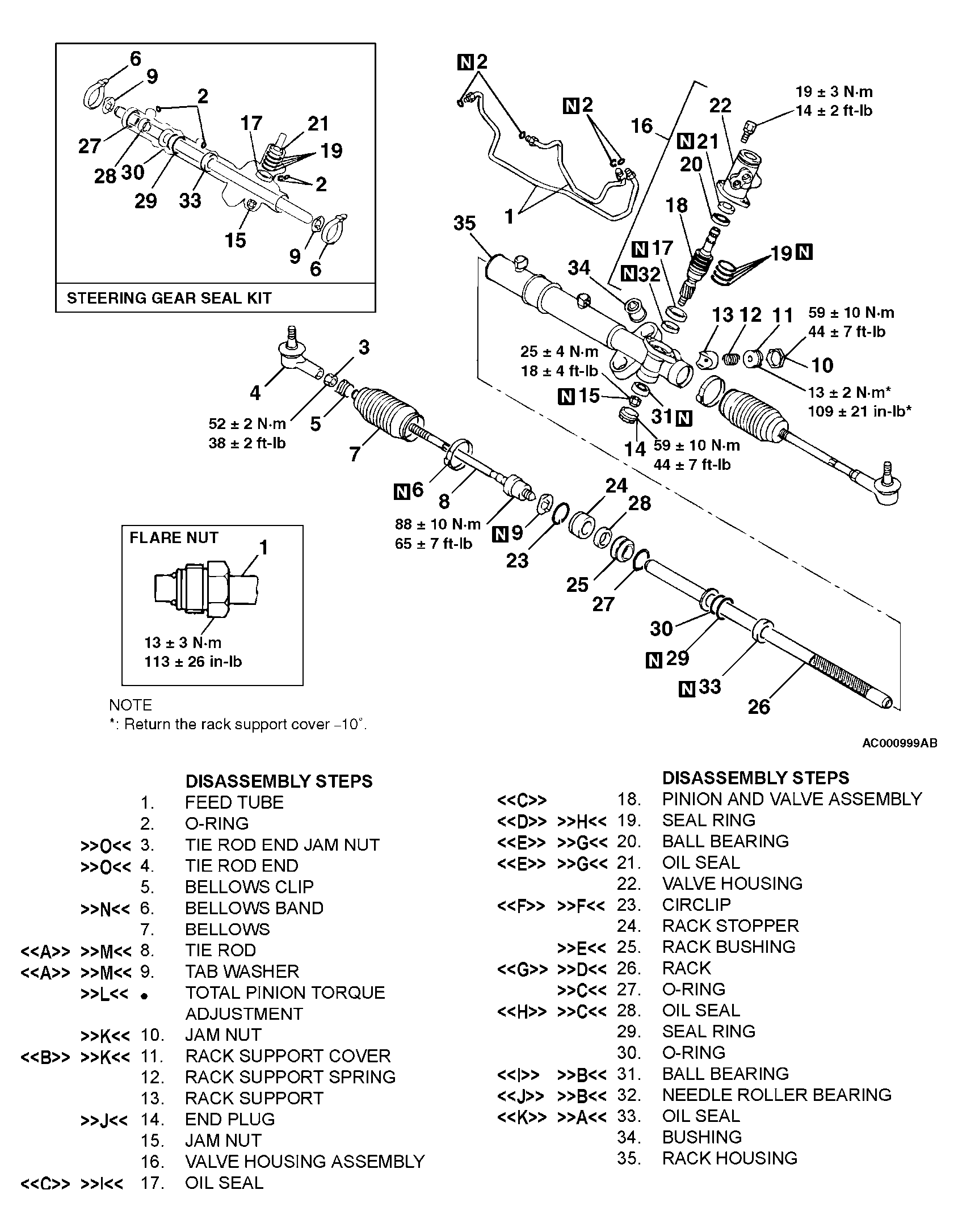

Fig 1: Exploded View Of Power Steering Gear Box Assembly

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

• MB990228 or MB991006: Preload Socket
• MB990776: Front Axle Base
• MB990927: Installer Adapter
• MB990938: Bar (Snap-in type)
• MB990939: Brass Bar
• MB991120: Needle Bearing Puller
• MB991152: Dust Cover Installer
• MB991197: Bar (Long type)
• MB991199: Oil Seal Installer
• MB991202: Oil Seal and Bearing Installer
• MB991203: Oil Seal and Bearing Installer
• MB991204: Torque Wrench Socket
• MB991213: Rack Installer
• MB991317: Seal Ring Installer
