Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Dedicated Fuses | In engine compartment relay box. |
| Engine Compartment Relay Box | Left side of engine compartment, in front of wheel housing. |

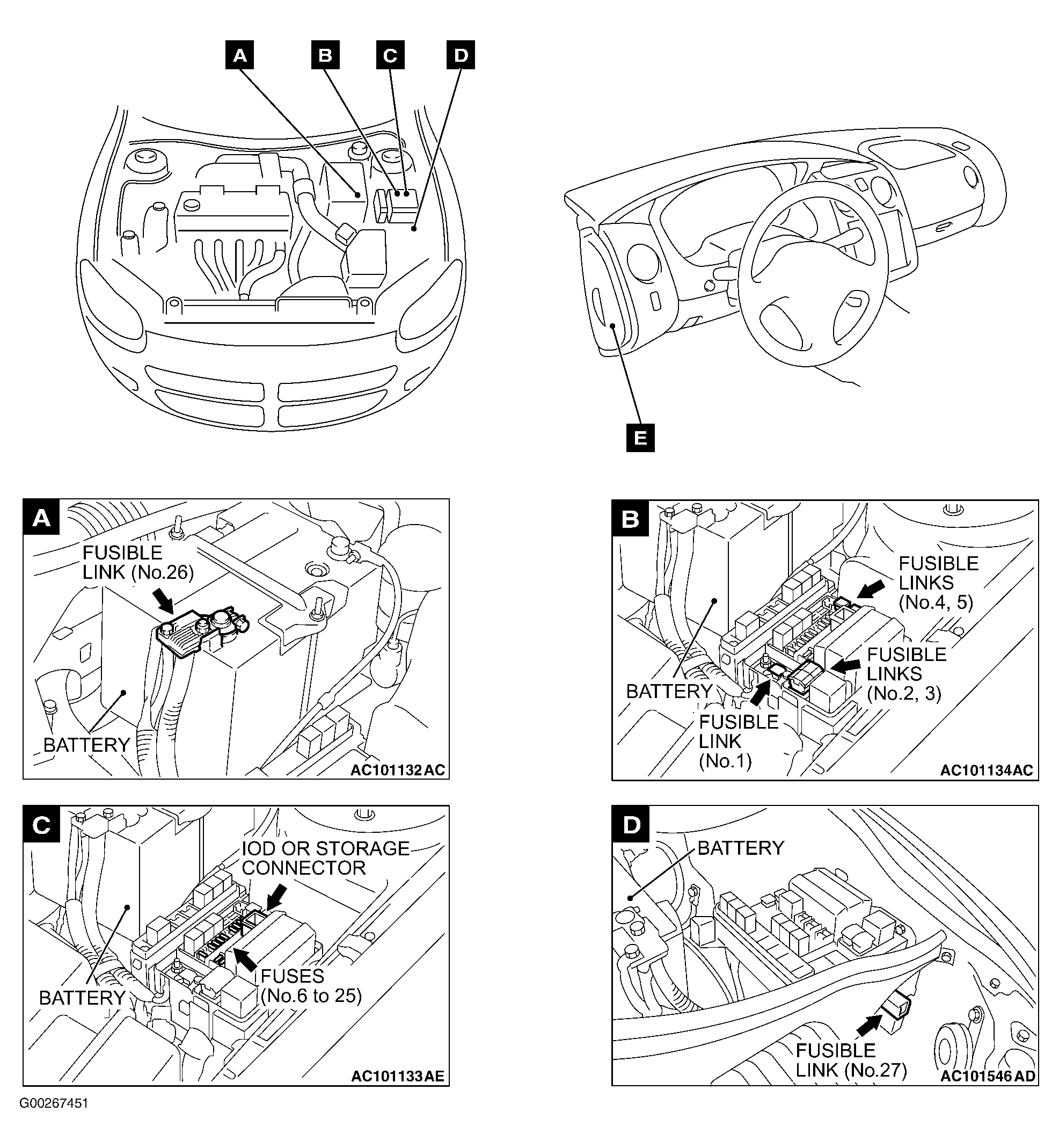

| Fusible Links 1-5 | In engine compartment relay box. See Figure . |
| Fusible Link 26 | Below front of engine compartment relay box. See Figure . |
| Fusible Link 27 | At positive battery terminal. See Figure . |

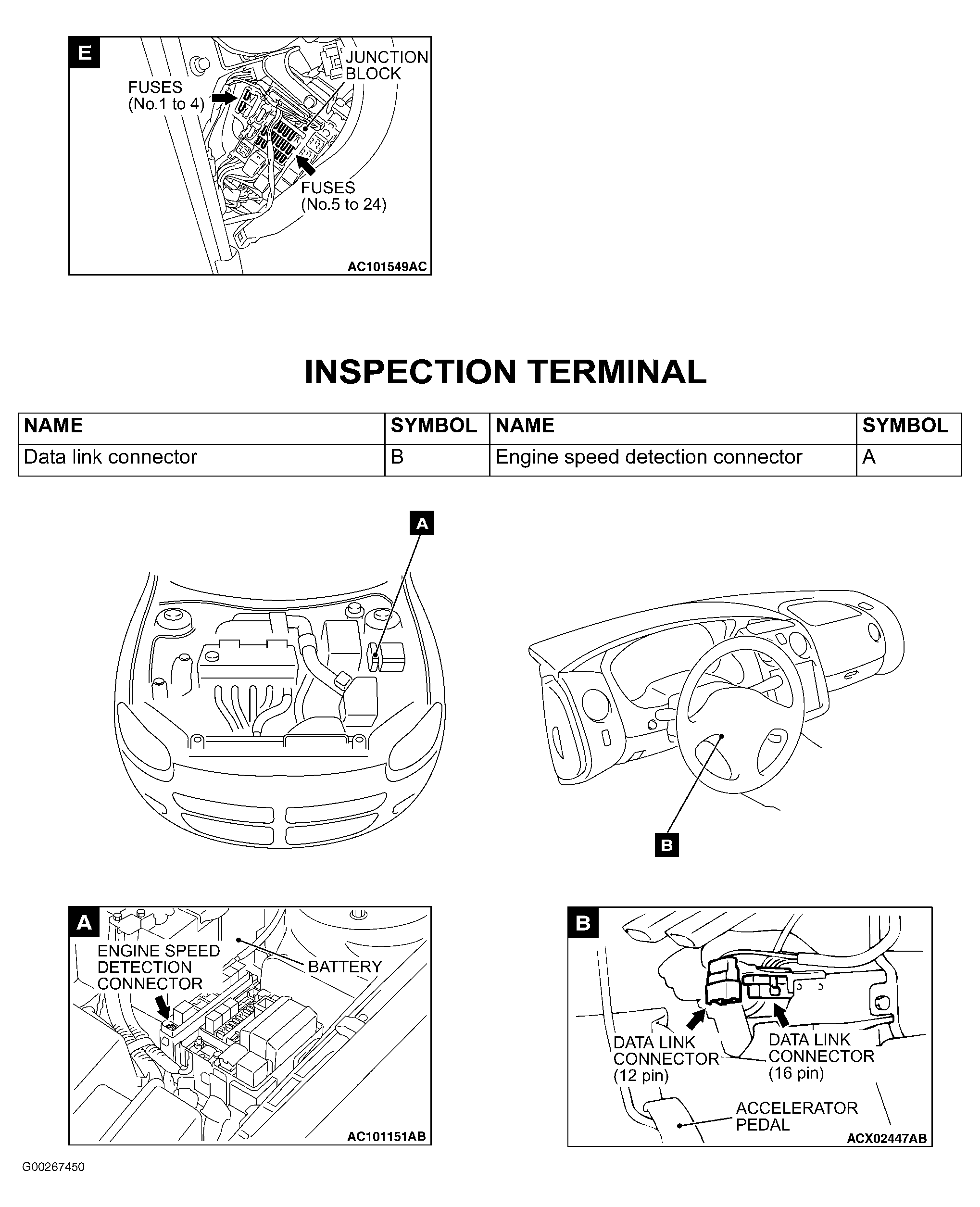

| Junction Block | Left end of dash. See Figure . |
| Multi-Purpose Fuses | In junction block. |
