Power Distribution Center

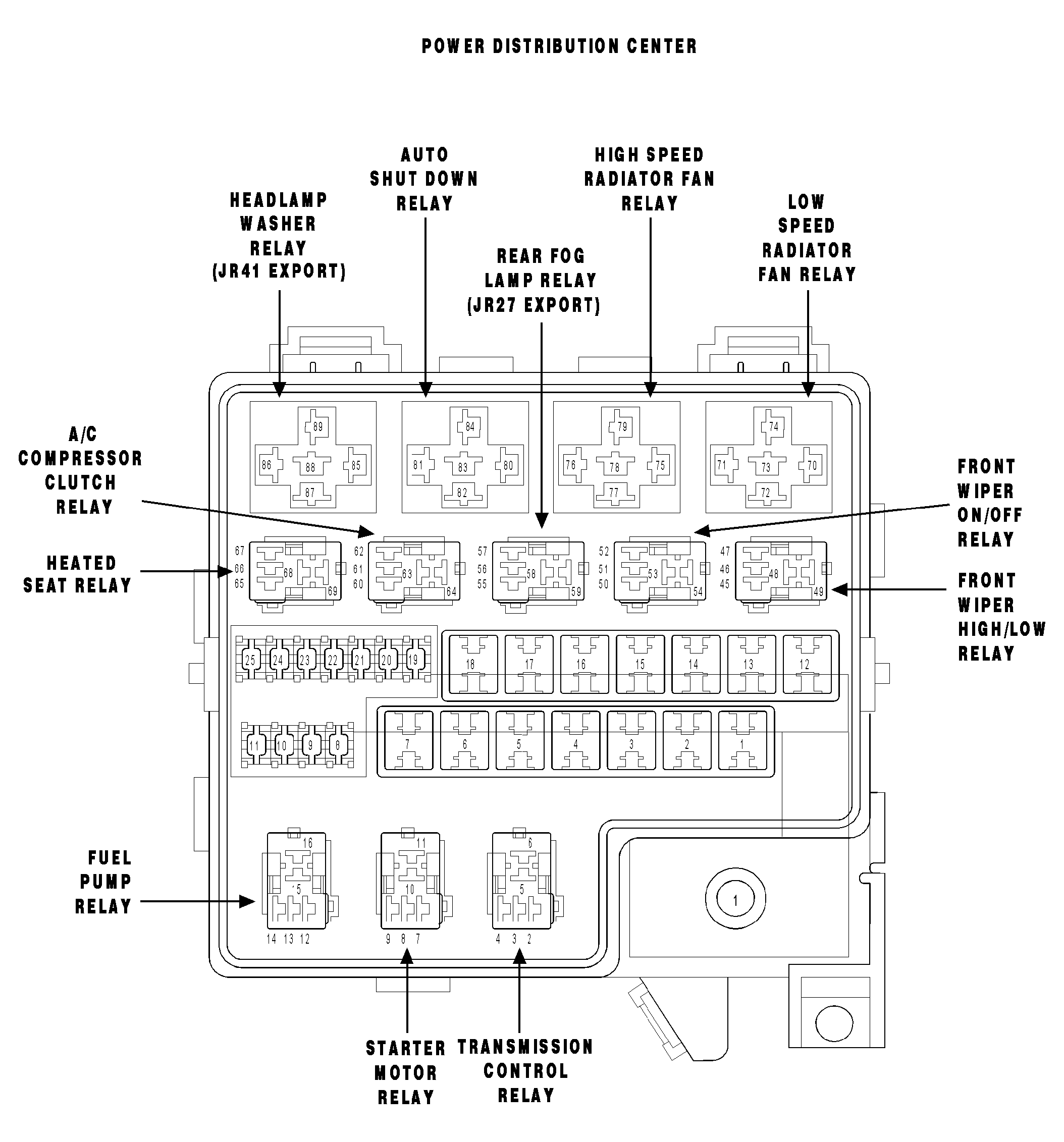

Fig 1: Power Distribution Center
G04536336Courtesy of DAIMLERCHRYSLER CORP.

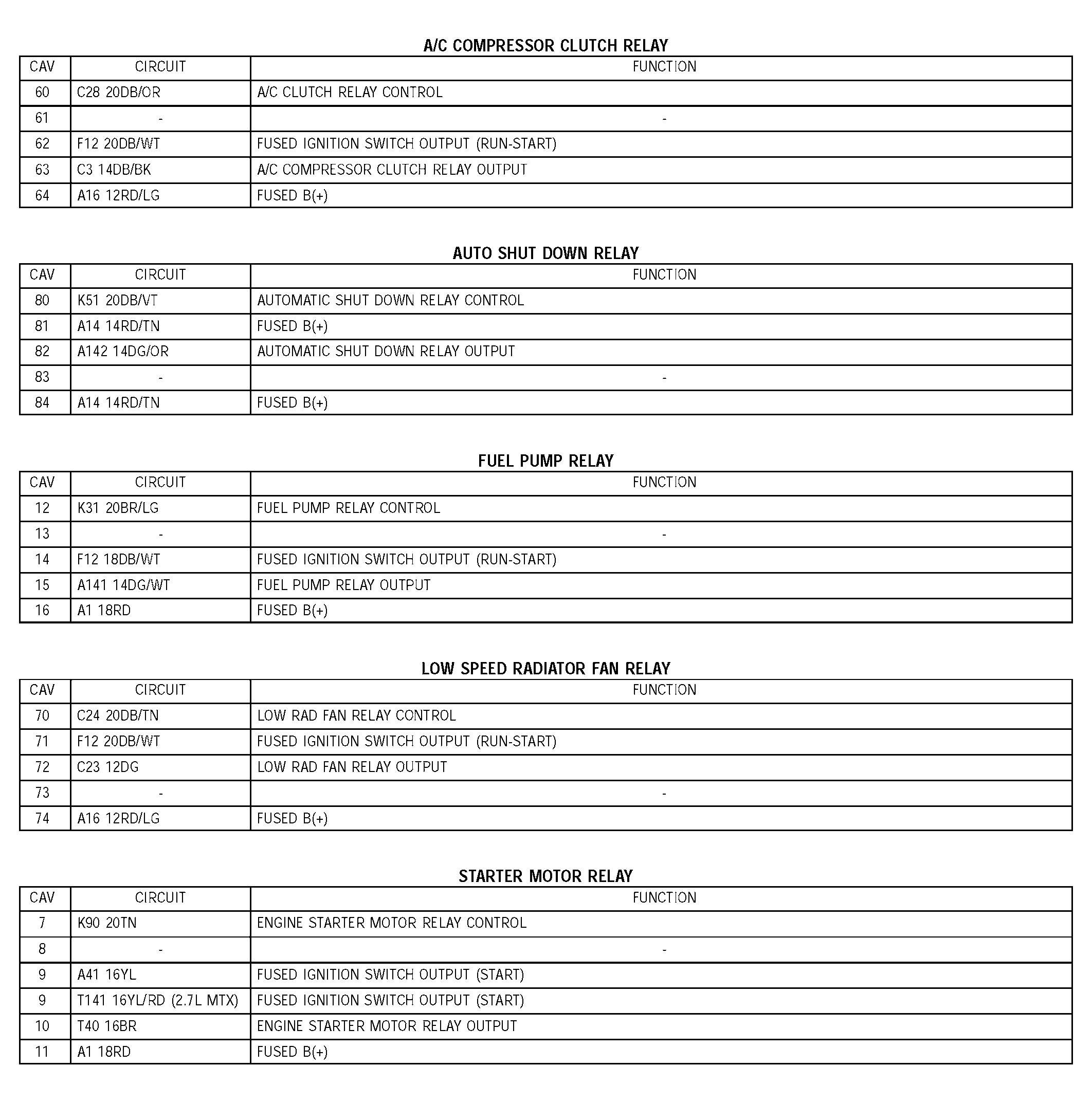

Fig 2: Power Distribution Center Fuse & Relay Chart
G04536337Courtesy of DAIMLERCHRYSLER CORP.
