Service Specifications

General Specifications:

Cylinder Block:

Pistons:

Piston Pins:

Piston Rings:

Piston Ring Side Clearance:

Piston Ring Width:

Connecting Rods:

Crankshaft Main Bearing Journals:

Connecting Rod Journals:

Camshaft:

Valve Timing - Intake Valve:

Valve Timing - Exhaust Valve:

Cylinder Head:

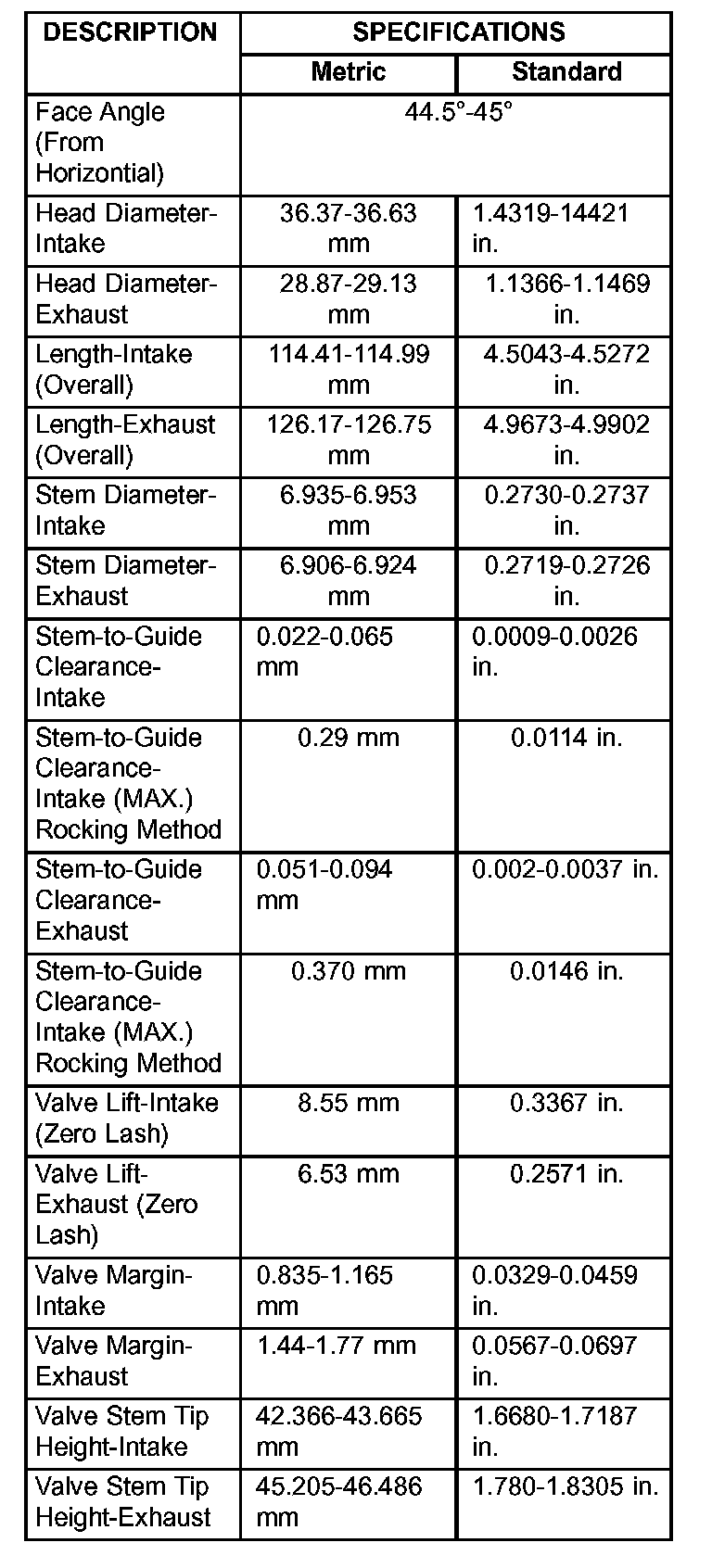

Valves:

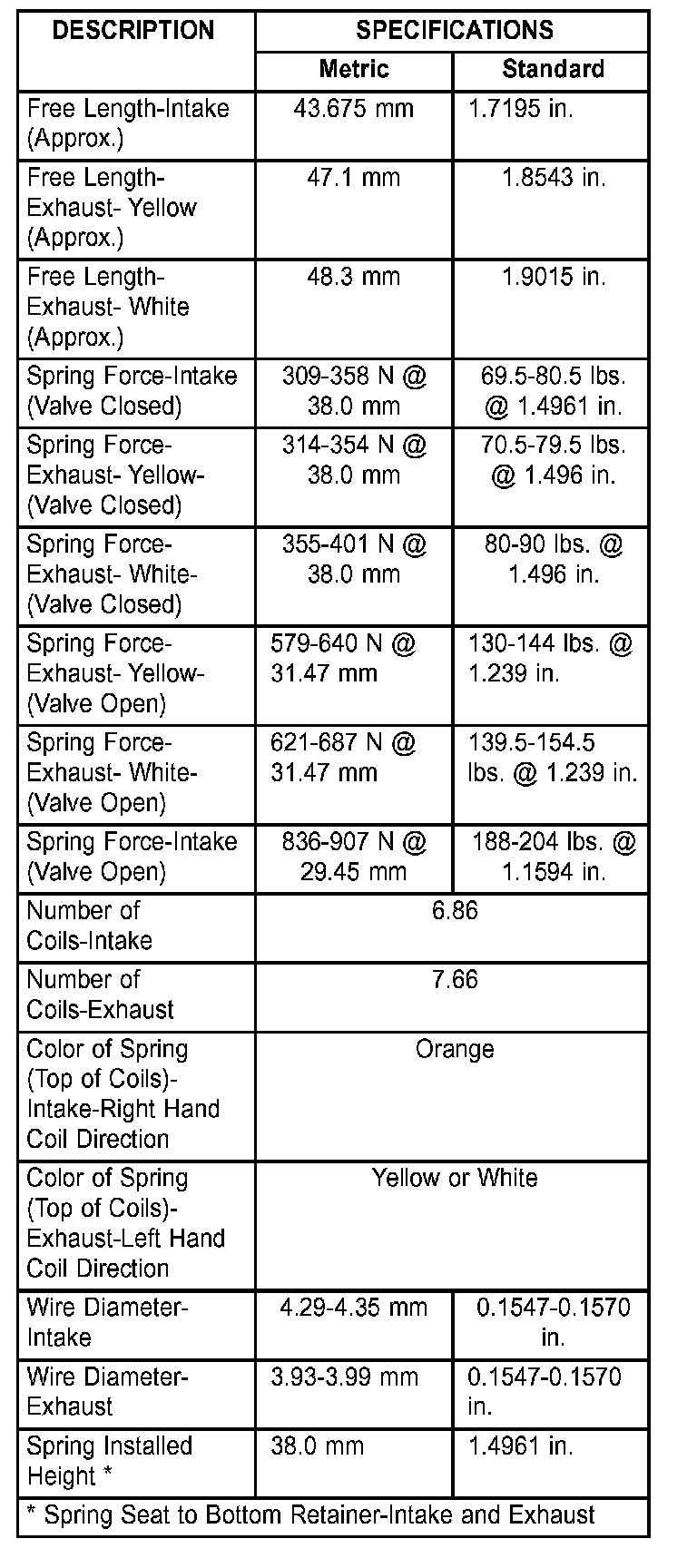

Valve Springs:

Oil Pump:
