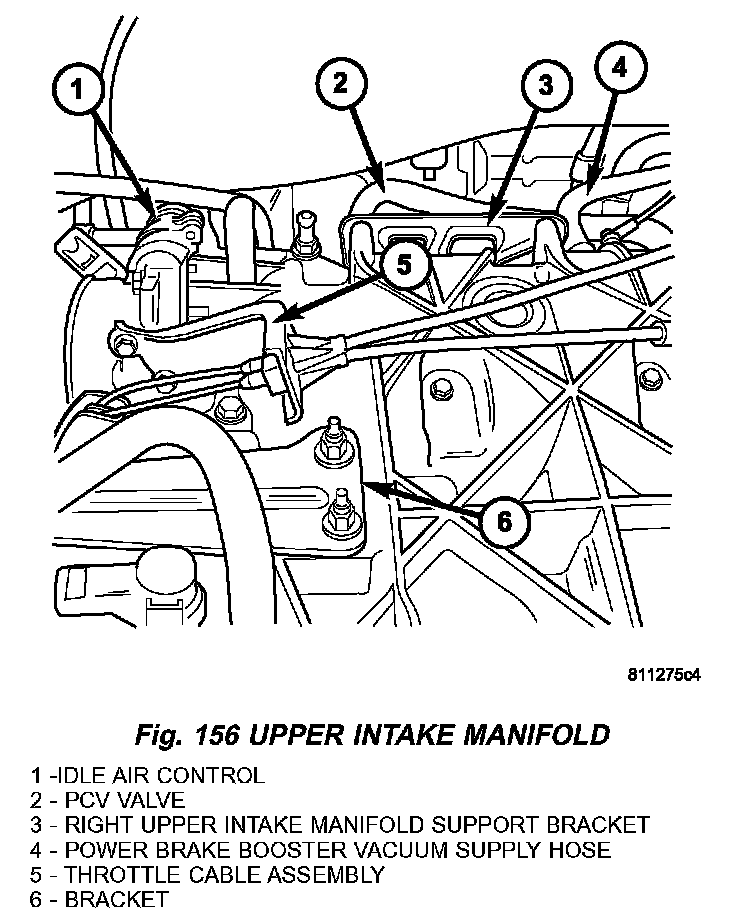

Intake Manifold





Intake Manifold - Lower 28 Nm (250 inch lbs.)





Intake Manifold - Upper 12 Nm (105 inch lbs.)
