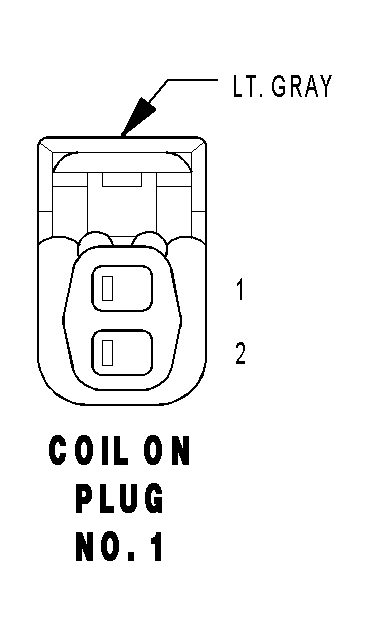

Coil On Plug 1 Connector End View
COIL ON PLUG NO. 1 - LT. GRAY 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K342 16BR/WT |
AUTOMATIC SHUT DOWN RELAY OUTPUT |
| 2 |
K19 16DB/DG |
COIL CONTROL NO. 1 |
