Speed Control Switch-Left - Black 3 Way

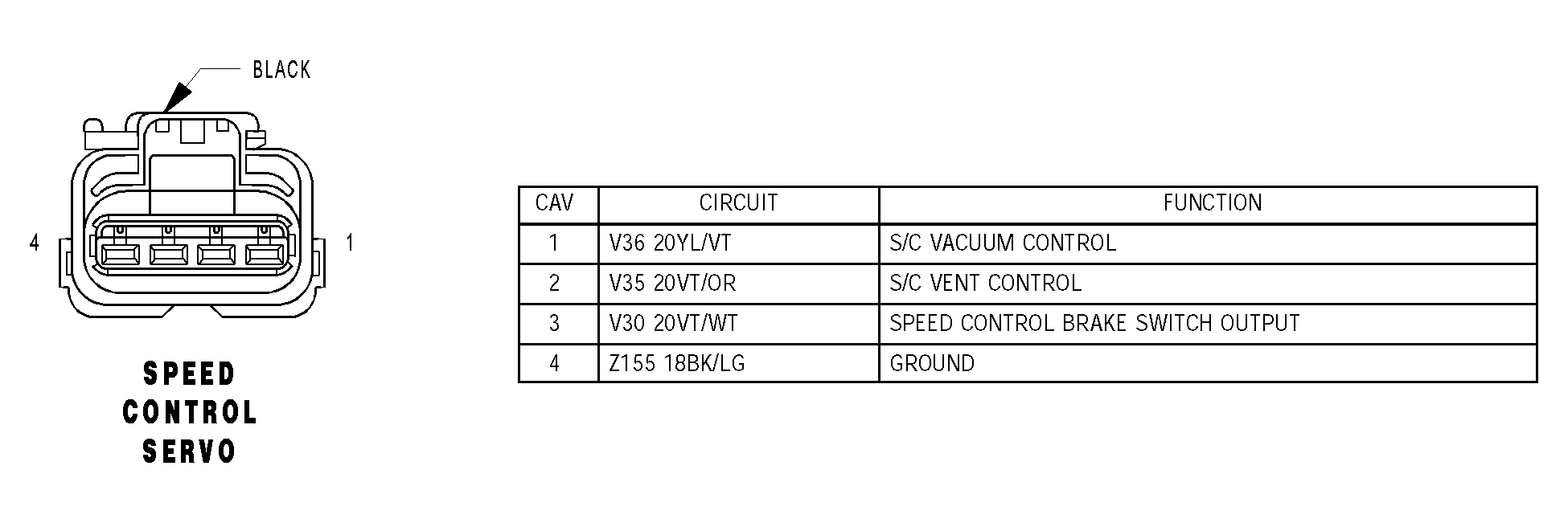

Fig 1: Identifying Speed Control Servo Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Fig 1: Identifying Speed Control Switch-Left Connector Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
