Data Link Connector - Black 16 Way

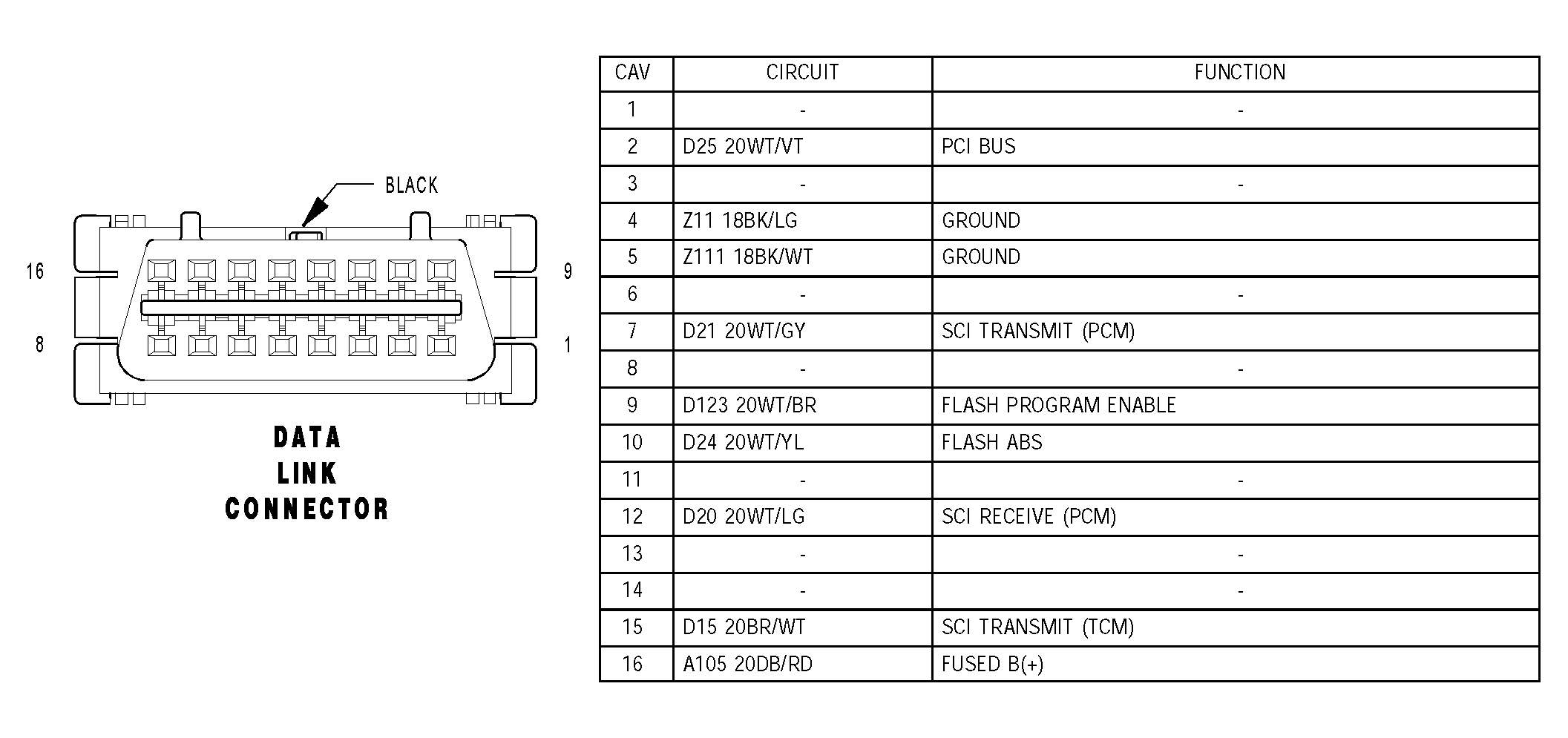

Fig 1: Identifying Data Link Connector Connector Pinouts
G04528097Courtesy of DAIMLERCHRYSLER CORP.
