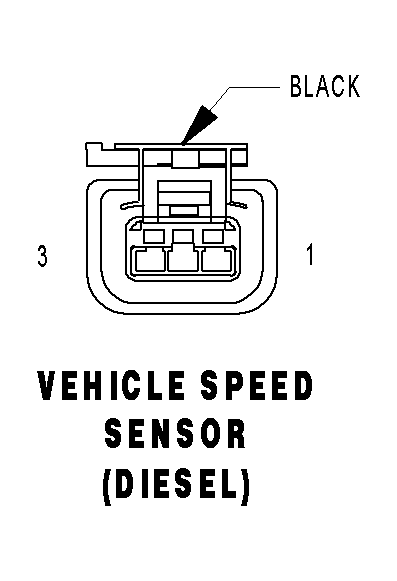

Vehicle Speed Sensor (Diesel) Connector End View
VEHICLE SPEED SENSOR (DIESEL) - BLACK 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K9 20RD/BK |
SENSOR REFERENCE VOLTAGE B |
| 2 |
N907 20BK/VT |
VEHICLE SPEED SENSOR GROUND |
| 3 |
G7 20GY/WT |
VEHICLE SPEED SENSOR SIGNAL |
