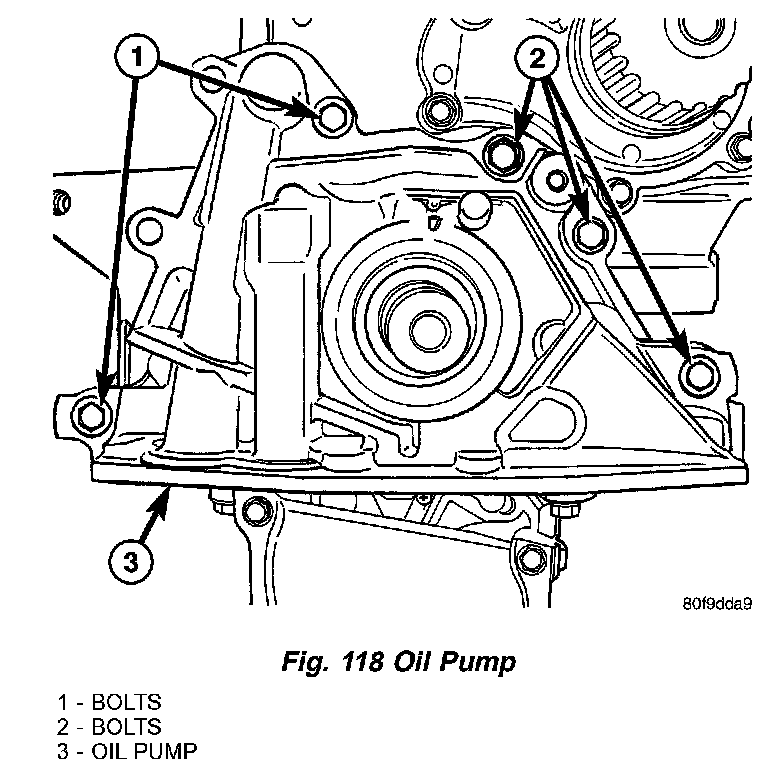

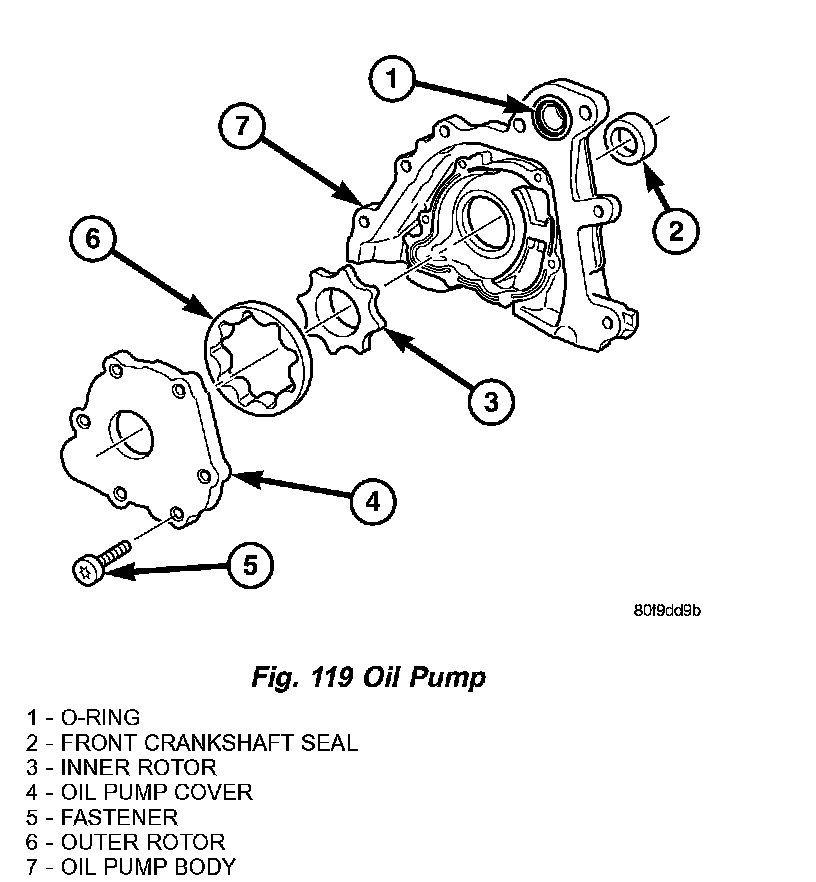

Oil Pump, Engine








Oil Pump to Block-Bolts 28 Nm (20 ft. lbs.)
Oil Pump Cover Plate-Screws 13 Nm (118 ft. lbs.)
Oil Pump Pick-up Tube-Bolt 23 Nm (200 in lbs.)
