Sentry Key Immobilizer Module - Black 6 Way

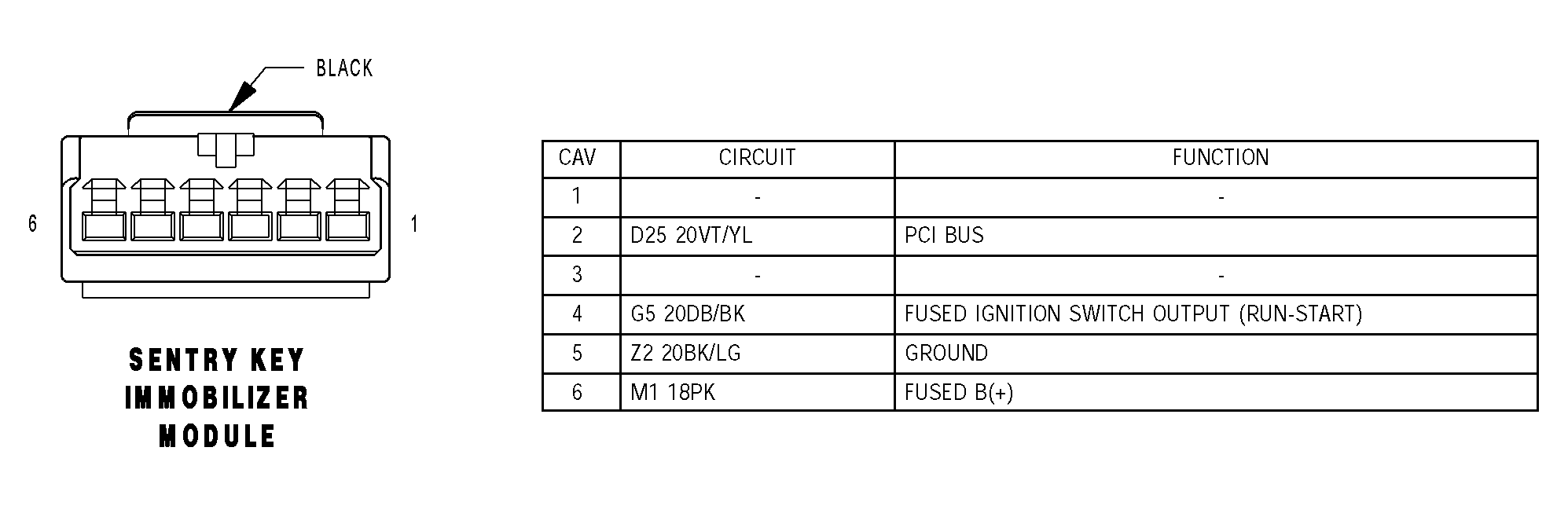

Fig 1: Sentry Key Immobilizer Module - Black 6 Way
G04548963Courtesy of DAIMLERCHRYSLER CORP.
