Evaporative Emission System Schematic

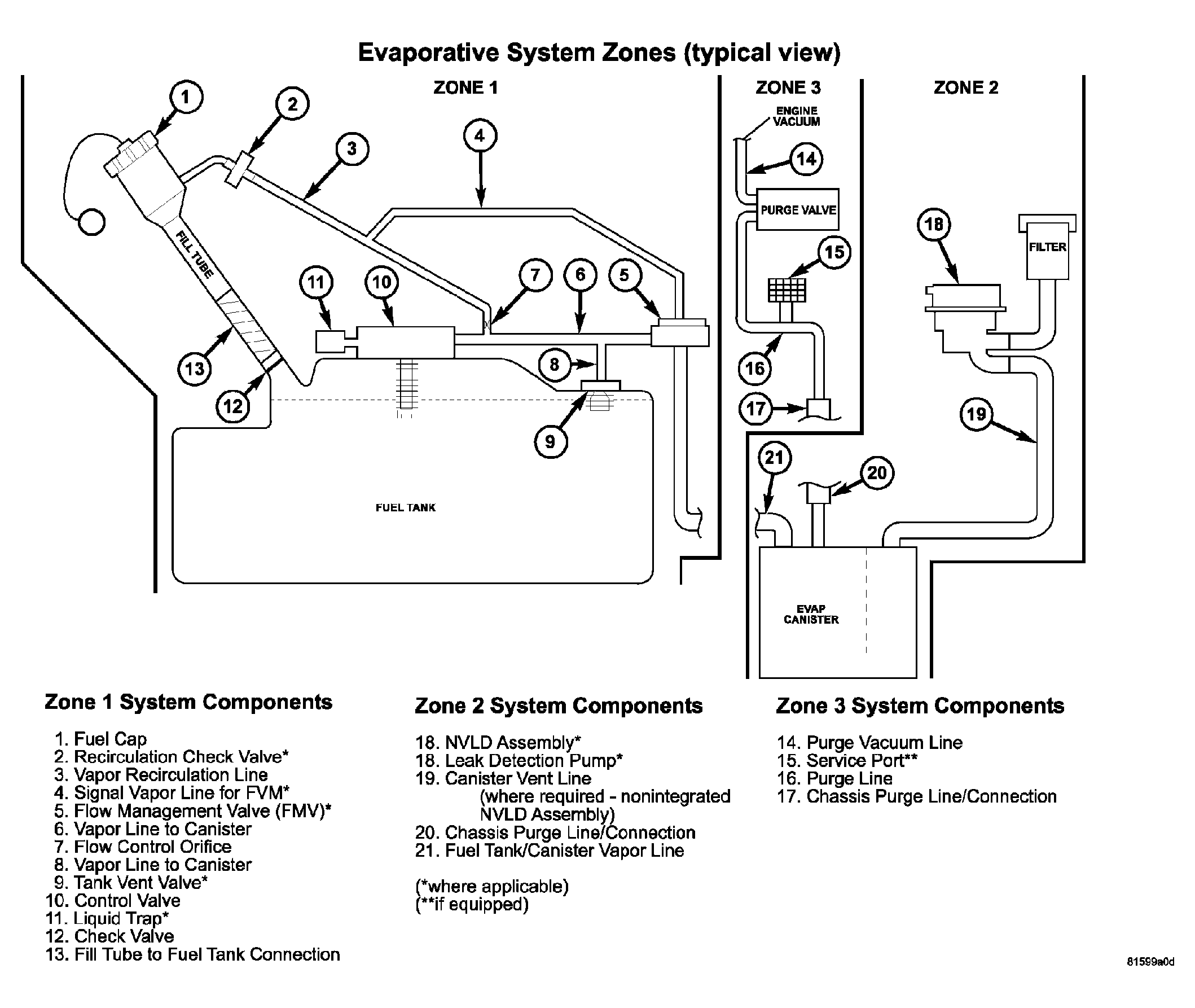

Fig 1: Identifying Evaporative System Zone Chart
Courtesy of DAIMLERCHRYSLER CORP.
