International Symbols: Description

DaimlerChrysler Corporation uses international symbols to identify engine compartment lubricant and fluid inspection and fill locations.

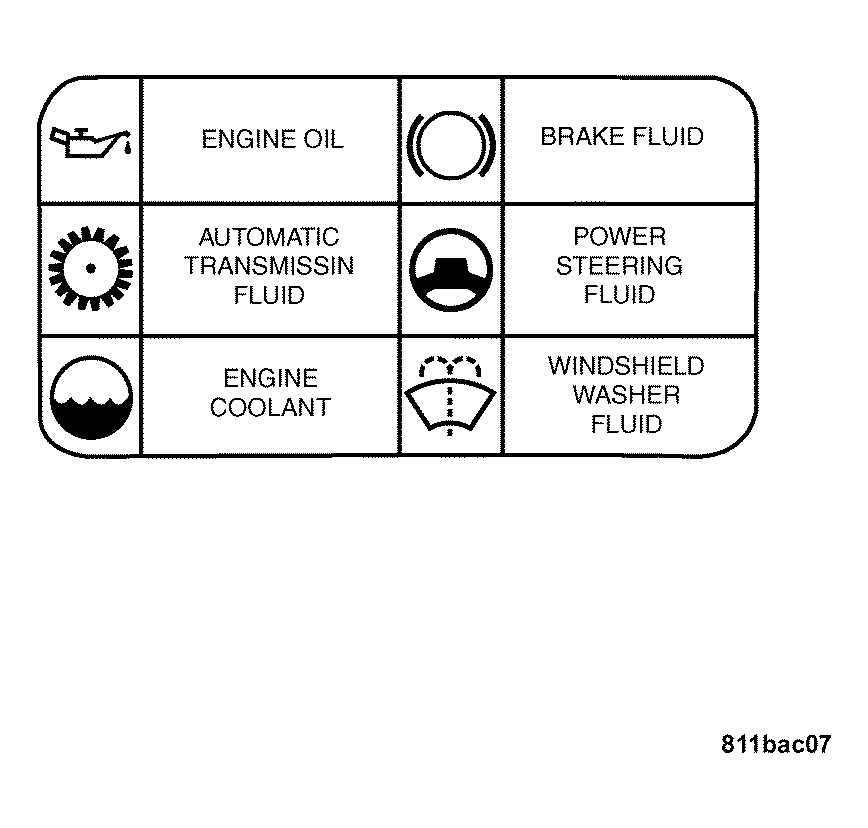

Fig 1: International Symbols
GC0035416Courtesy of DAIMLERCHRYSLER CORP.
