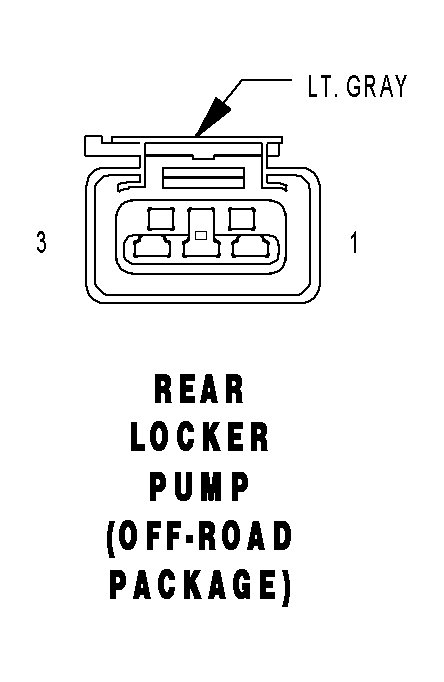

Rear Locker Pump (Off-Road Package) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.
REAR LOCKER PUMP (OFF-ROAD PACKAGE) - LT. GRAY 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z987 18BK |
GROUND |
| 2 |
- |
- |
| 3 |
A850 18RD/WT |
REAR LOCKER RELAY OUTPUT |
