Cylinder Head Assembly

Standard dimension less than 0.05 mm (0.002 inch.)
Service Limit 0.2 mm (0.008 inch.)
Grinding Limit Maximum of 0.2 mm (0.008 inch.)

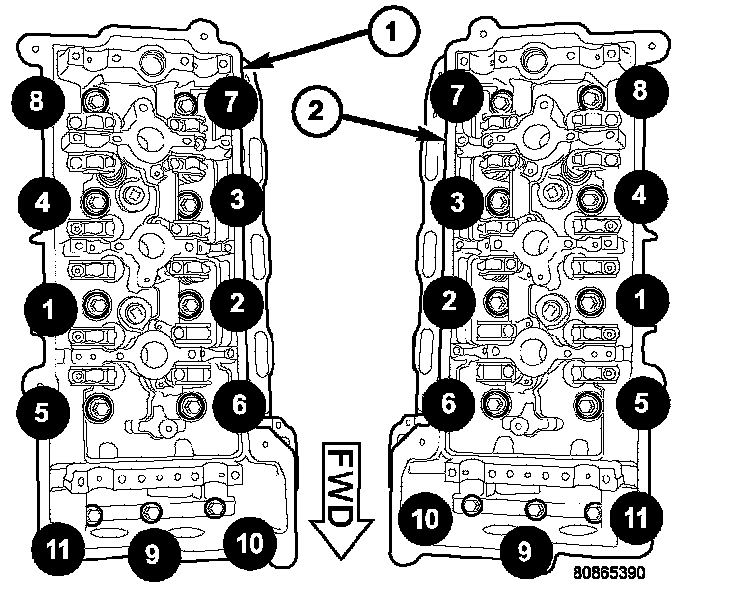

Cylinder head bolts-Inspect before reuse





Step 1: Bolts 1-8 48 Nm (35 ft. lbs.)
Step 2: Bolts 1-8 75 Nm (55 ft. lbs.)
Step 3: Bolts 1-8 75 Nm (55 ft. lbs.)
Step 4: Bolts 1-8 +90°
Step 5: Bolts 9-11 28 Nm (250 inch lbs.)





Upper intake bolts 12 Nm (105 inch lbs.)





Lower intake bolts 12 Nm (105 inch lbs.)





Camshaft Bearing Cap - Bolts 12 Nm (105 inch lbs.)

Camshaft Sprocket - Bolts 28 Nm (250 inch lbs.)

Exhaust manifold bolts 23 Nm (200 inch lbs.)
From the center working outward
