Power Distribution Center: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

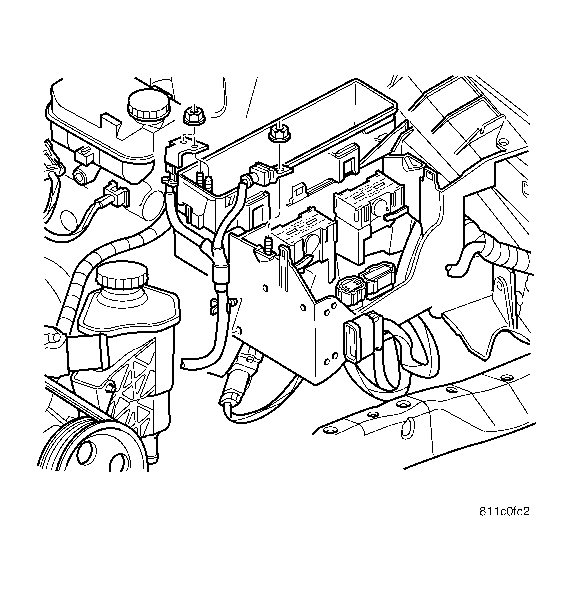

Fig 1: Installing PDC
GC0012513Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect electrical harness connectors to Power Distribution Center (PDC).
  2. Position PDC and engage into the retaining tabs.
  3. Connect the battery negative cable.
