Section 365 (Interior/Exterior): Sunroof: Assembly-Module: Removal

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: MODULE ASSEMBLY

Courtesy of DAIMLERCHRYSLER CORP.

Move glass panel to the fully closed position.
Disconnect and isolate the battery negative cable.
Remove headliner (Refer to BODY/INTERIOR/HEADLINER - REMOVAL) .

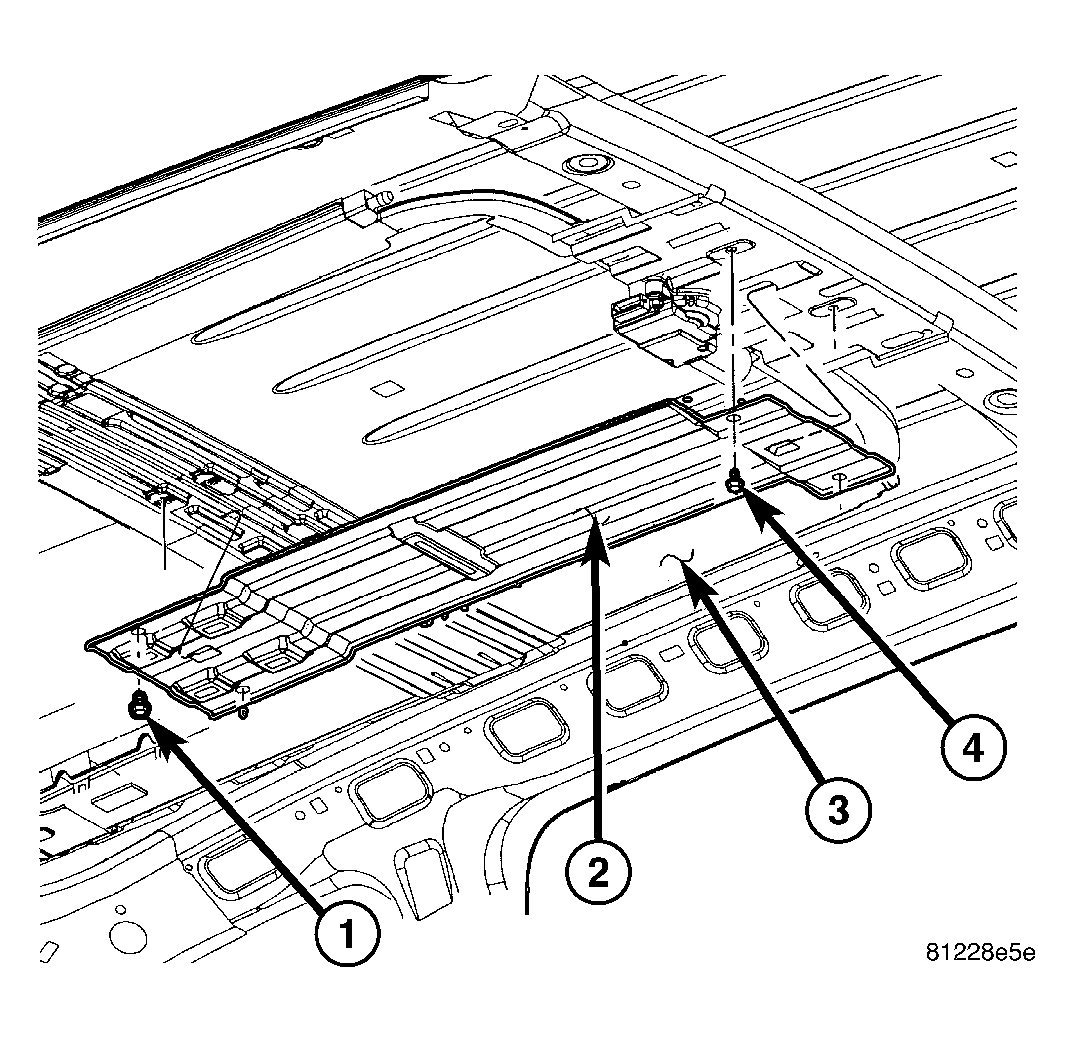

Remove the bolts (1 & 4) and remove the video display support bracket, if equipped.

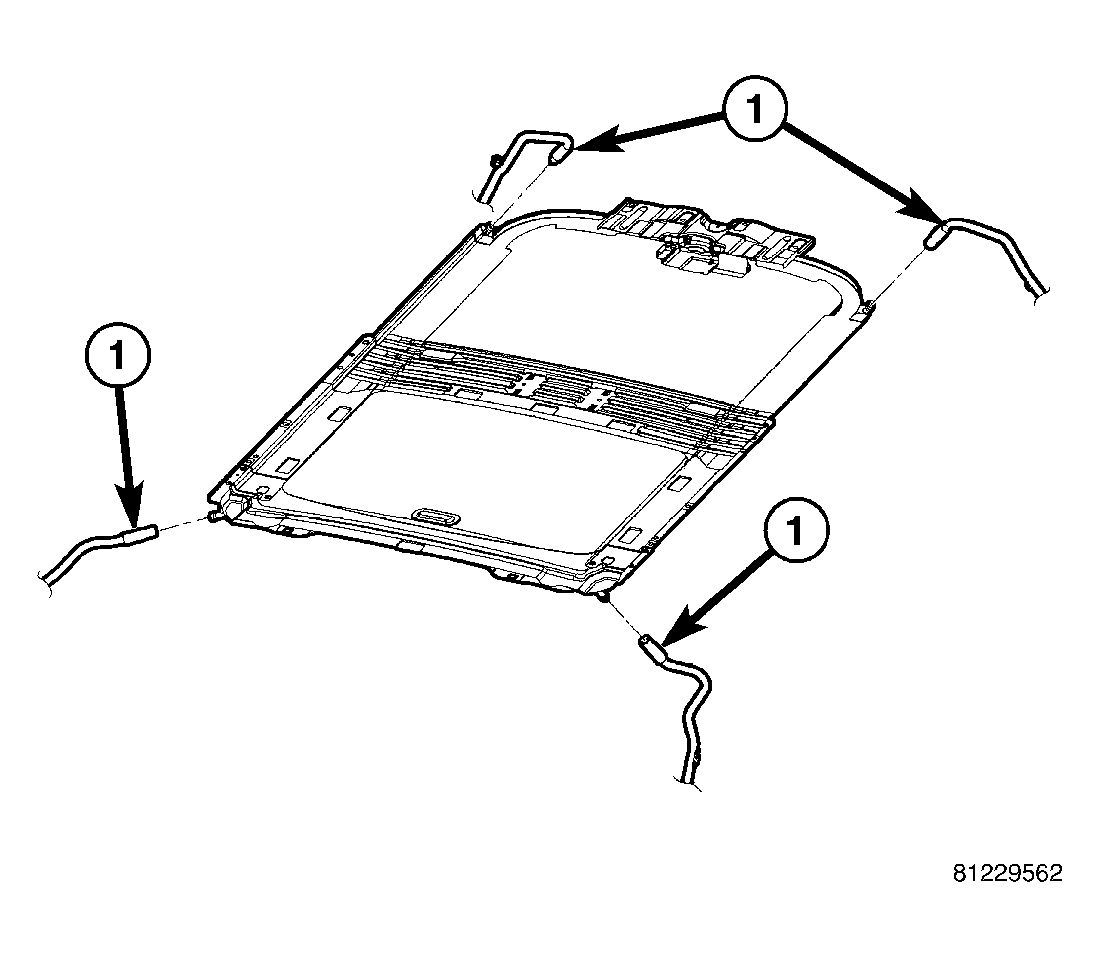

Fig 2: DRAIN TUBES
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the four drain tubes (1) from sunroof housing.

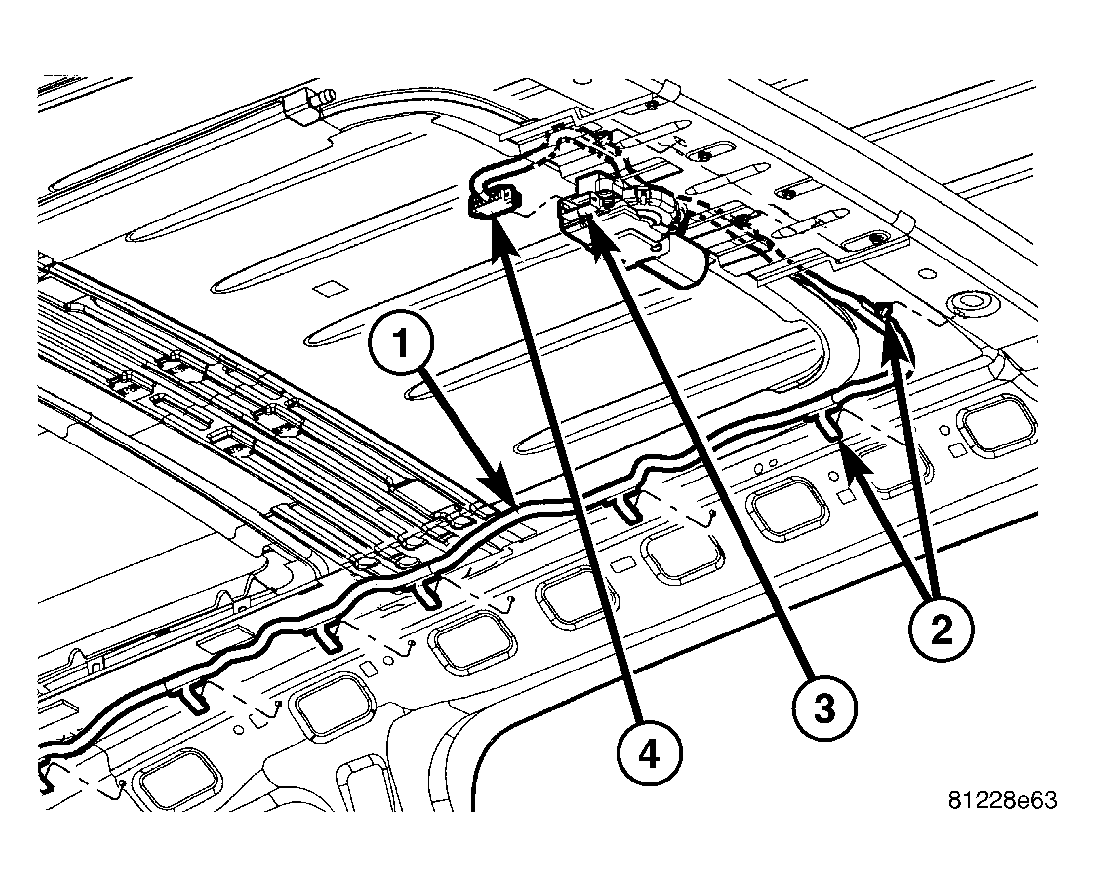

Fig 3: SUNROOF WIRE HARNESS ELECTRICAL CONNECTOR
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the sunroof wire harness (1) electrical connector (3) and (4).

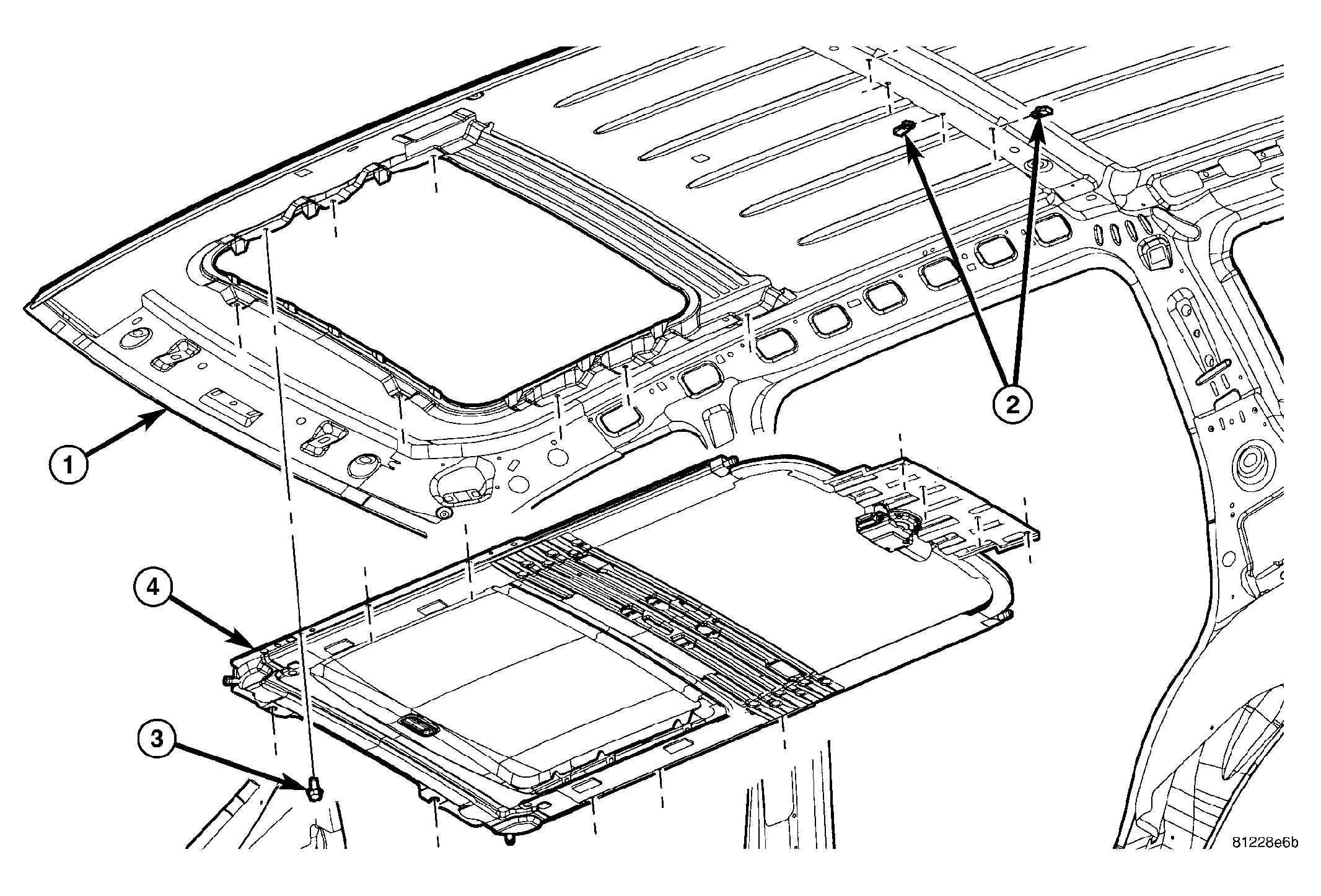

Fig 4: SUNROOF ASSEMBLY
Courtesy of DAIMLERCHRYSLER CORP.
Loosen fasteners (3) attaching sunroof assembly.
With the aid of a helper, support the sunroof and remove the fasteners attaching sunroof assembly (4) to roof panel (1).
Remove the sunroof (4) from vehicle.
