Section 365 (Interior/Exterior): Liftgate: Latch: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

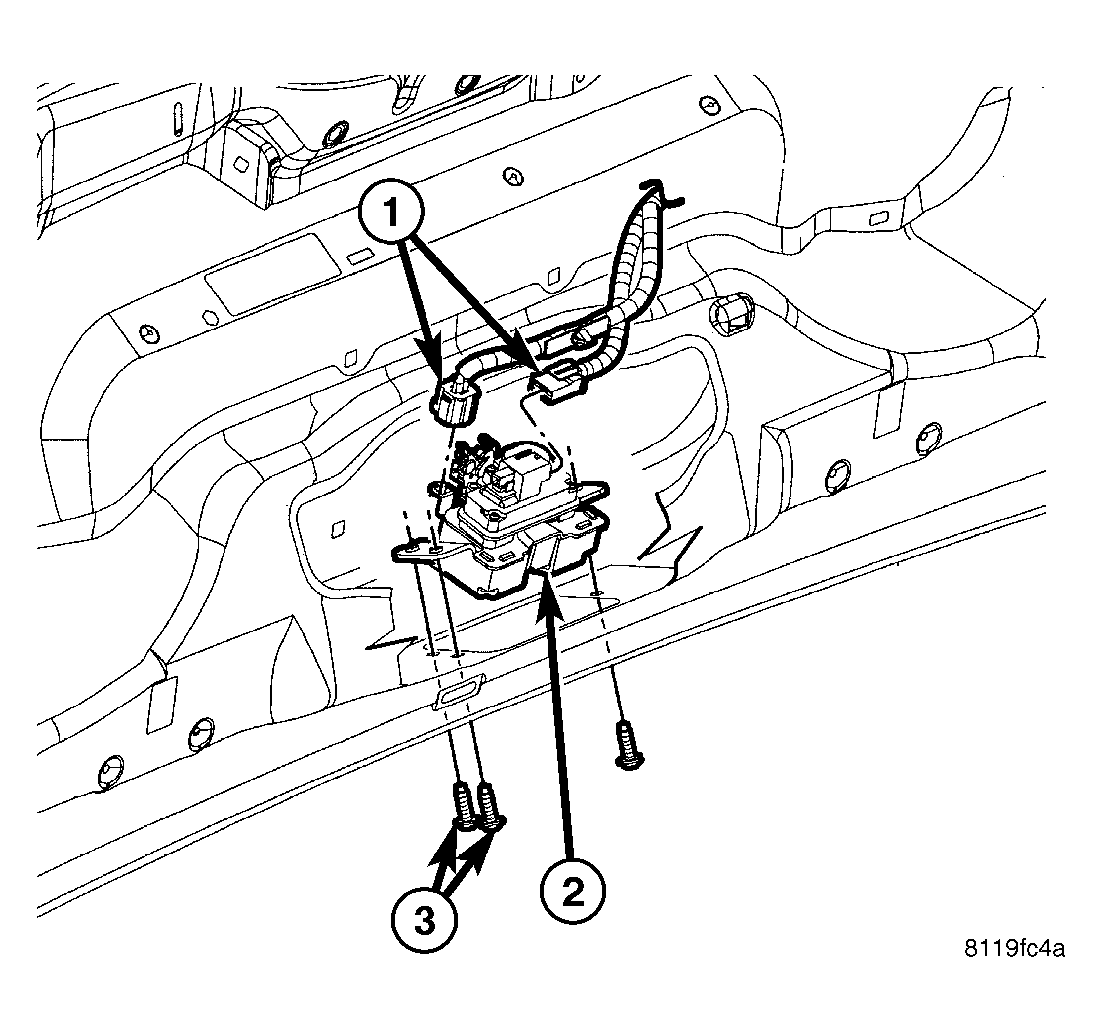

Fig 1: LATCH
GC0010543Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the latch (2) into the liftgate and install the screws (3).
  2. Tighten the screws to 11 N.m (95 in. lbs.).
  3. Connect the electrical connectors (1).

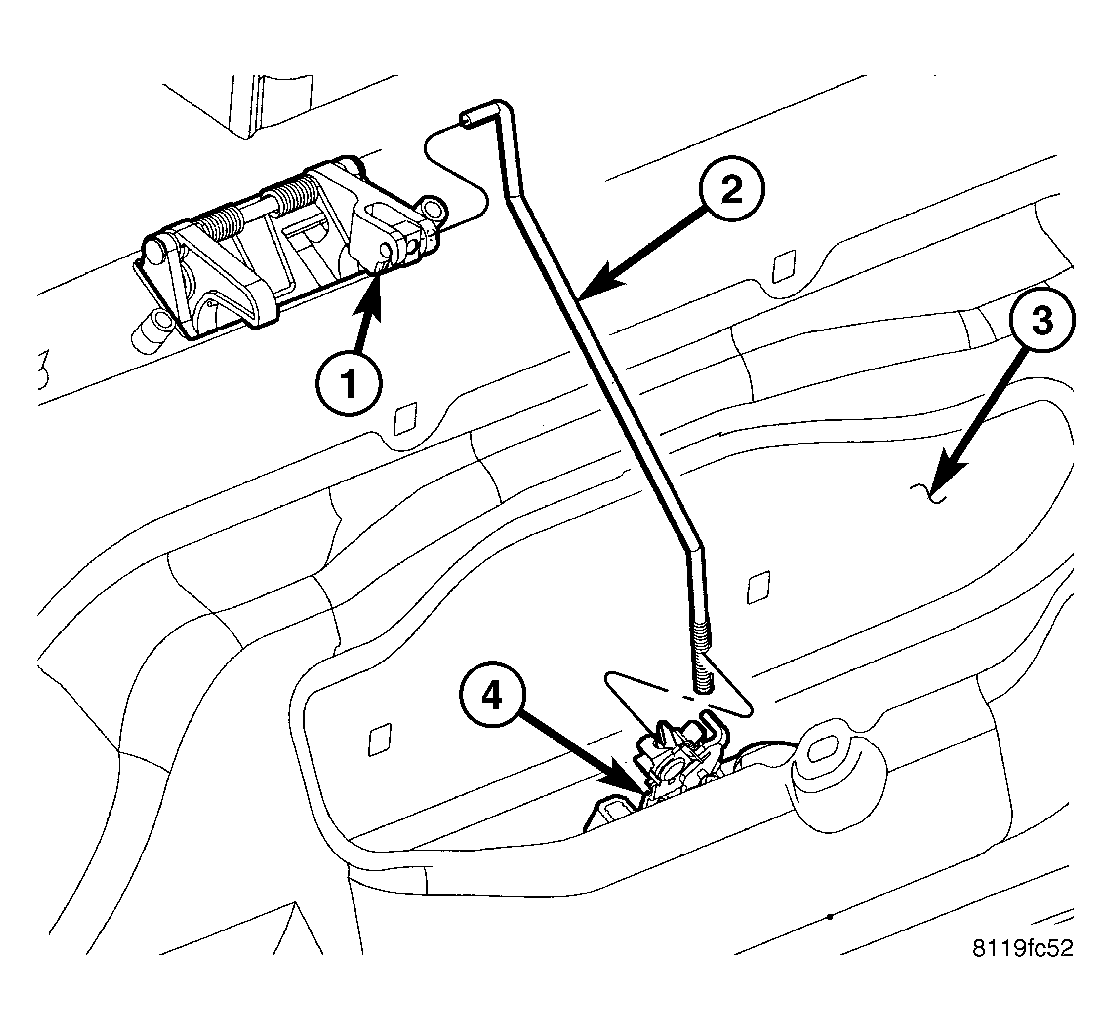

    Fig 2: LATCH ROD
    GC0010542Courtesy of DAIMLERCHRYSLER CORP.

    Connect the latch actuator rod (2) to the exterior handle (1) and the latch (4).

  4. Install the trim panels. (Refer to BODY/LIFTGATE/TRIM PANEL - INSTALLATION)
