Without Traction Control

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

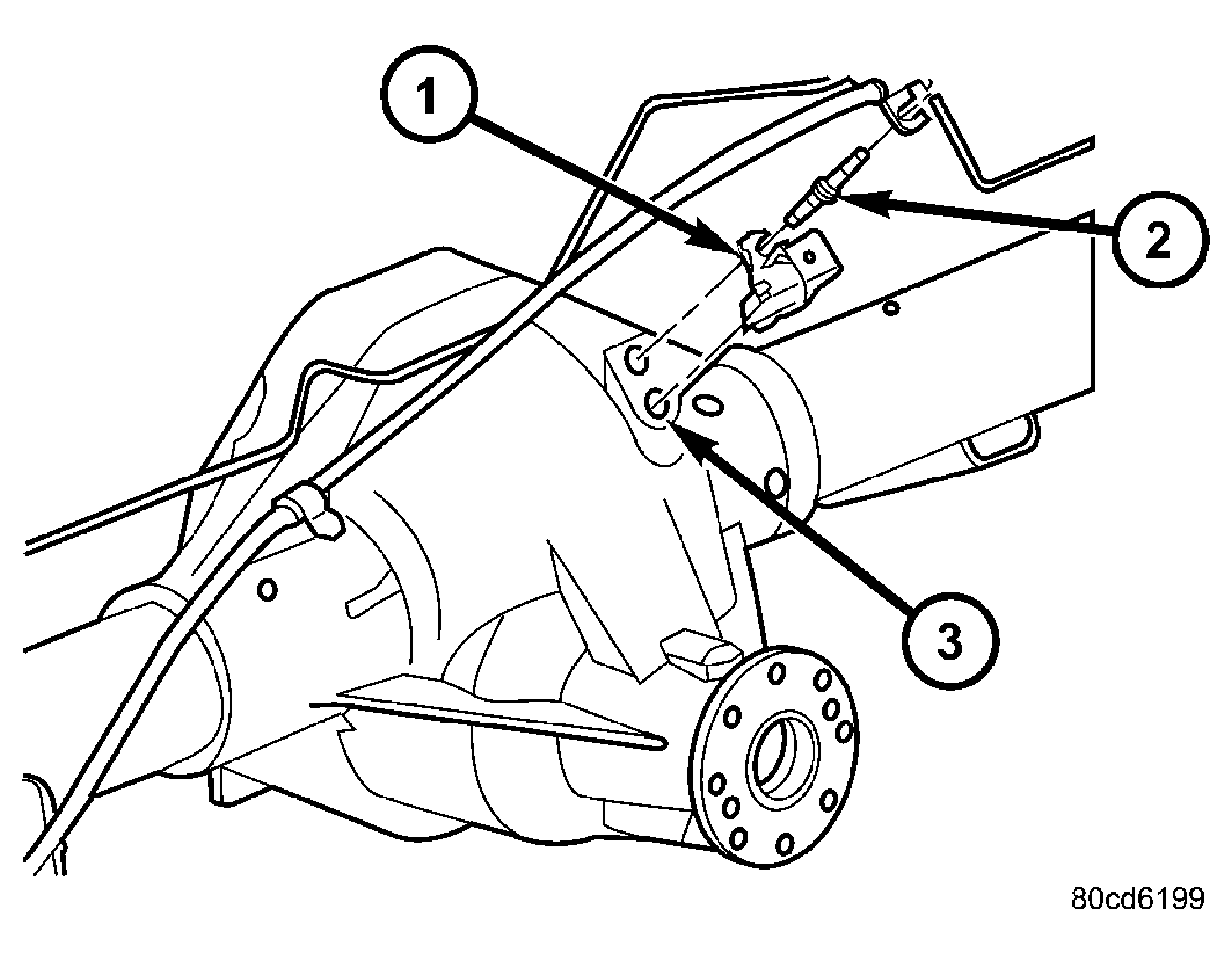

Fig 1: Removing/Installing Rear Wheel Speed Sensor (Without Traction Control)
GC0011482Courtesy of DAIMLERCHRYSLER CORP.
  1. Raise the vehicle on a hoist.
  2. Disconnect the sensor wire harness.
  3. Remove the brake line mounting nut and remove the brake line from the sensor stud (2).
  4. Remove the mounting stud (2) from the sensor (1) and shield.
  5. Remove the sensor (1) and shield from the differential housing (3).
