Section 331 (Speed Control): Reservoir-Vacuum: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

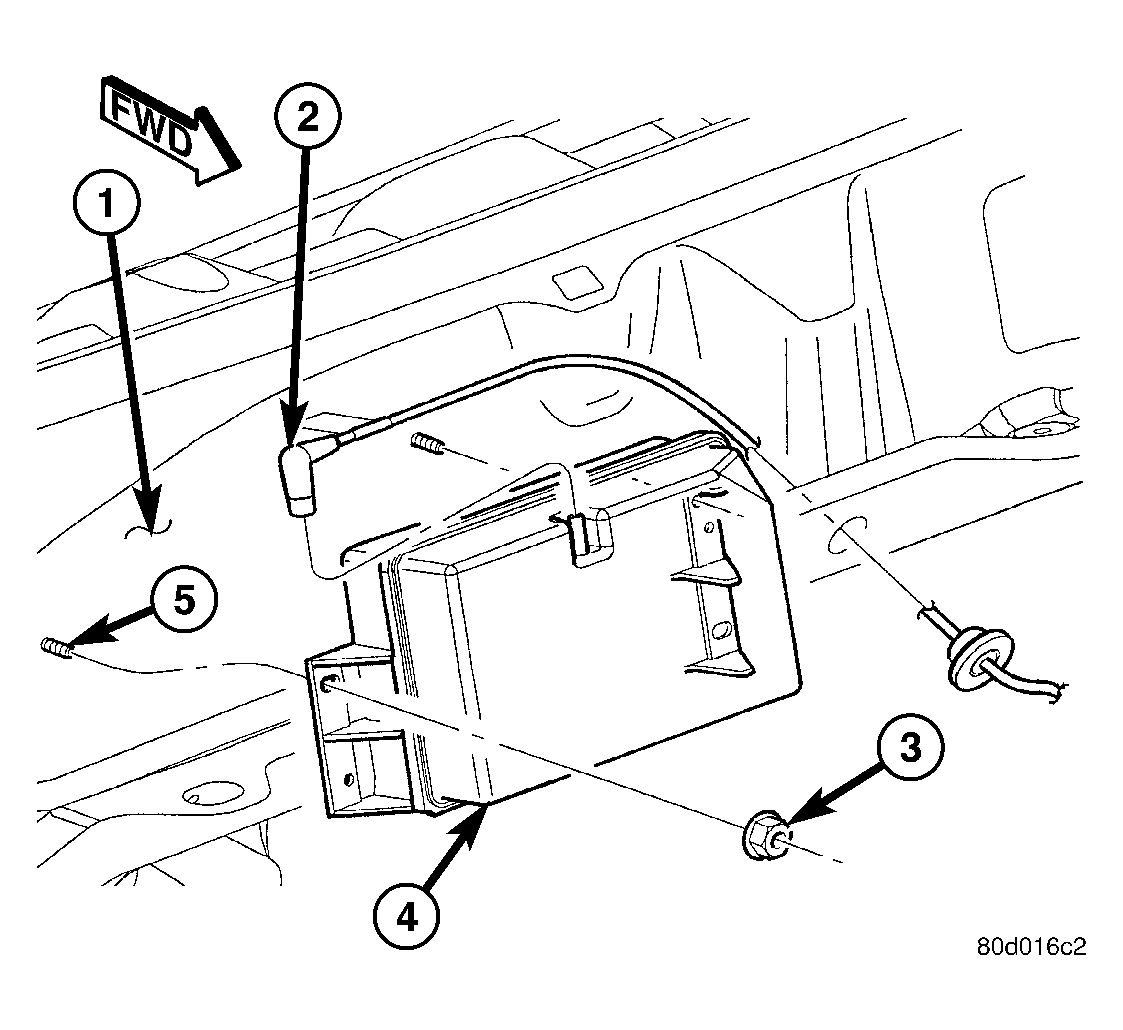

  1. Position reservoir onto 2 weld studs. See Figure.
  2. Install 2 mounting nuts and tighten. Refer to SPECIFICATIONS .
  3. Connect vacuum line to reservoir fitting.
  4. Install cowl grill. Refer to COWL GRILLE .
  5. Install wiper arms/blades. Refer to WIPER ARM .
