Release Handle: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

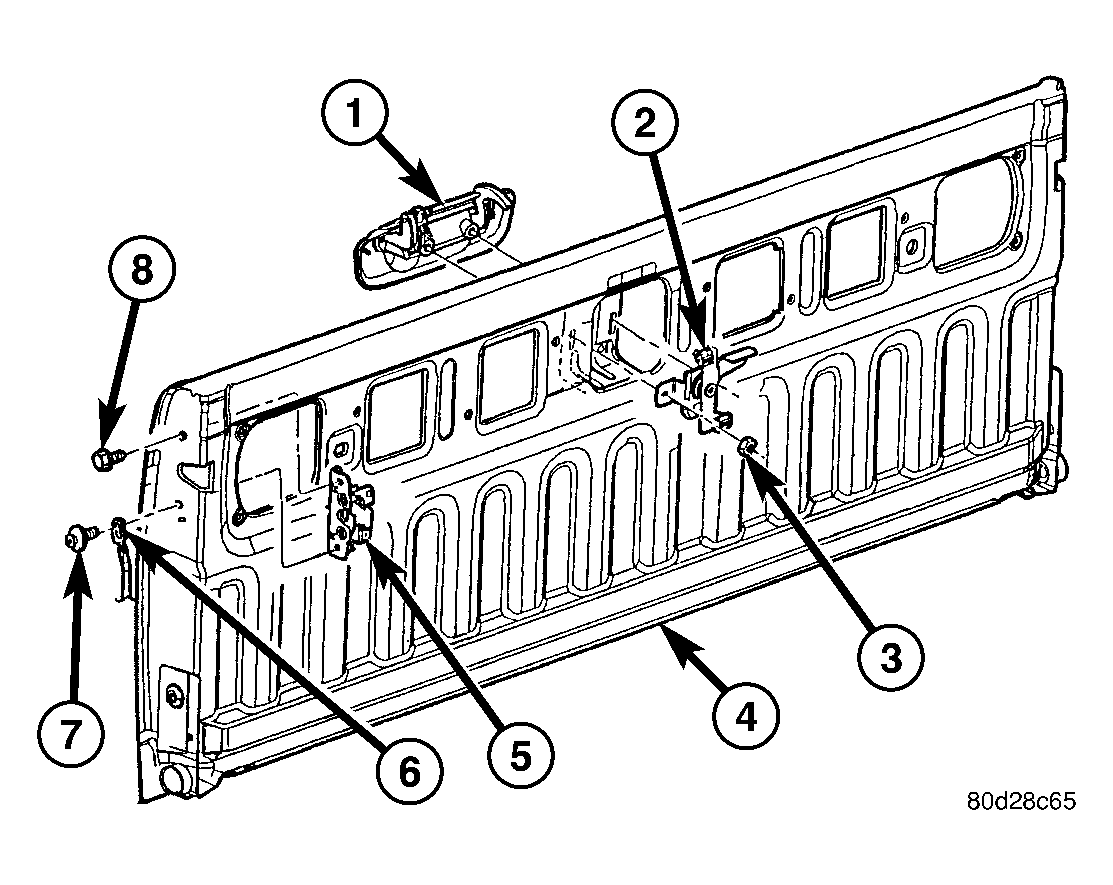

Fig 1: Identifying Latch Handle - Latch Components
GC0006928Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the release handle and the control onto the tailgate.
  2. Install the two nuts that secure the release handle and control to the tailgate. Tighten the nuts to 7 N.m (60 in. lbs.).

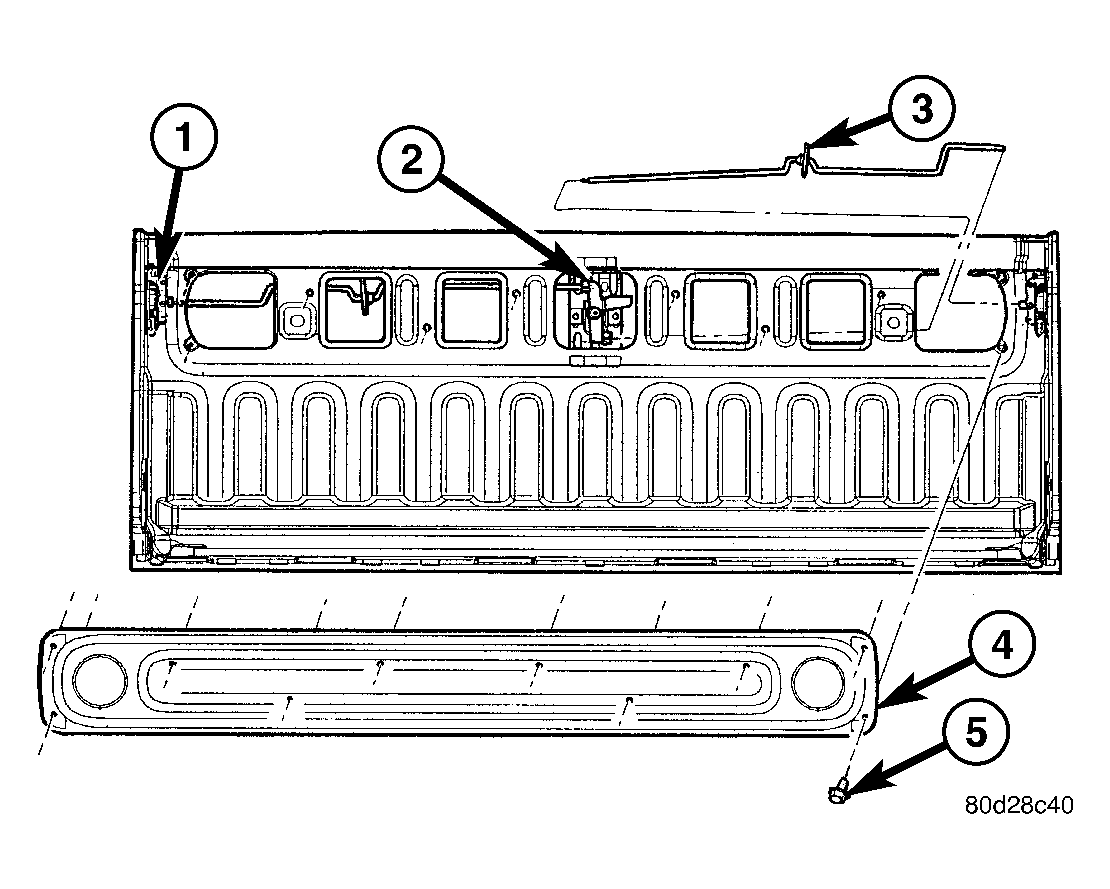

    Fig 2: Identifying Tailgate Components
    GC0006929Courtesy of DAIMLERCHRYSLER CORP.
  3. Locate the actuator rods (3) to the control (2) using the reference marks made during the removal procedure and connect the rods to the control.
  4. Position the tailgate cover (4) onto the inside of the tailgate.
  5. Install the ten bolts (5) that secure the tailgate cover to the tailgate. Tighten the bolts securely.
  6. If equipped, install the tailgate liner onto the tailgate.
