Heat Shields: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Position the exhaust heat shield to the floor pan, crossmember or bracket and install the nuts or bolts.
Tighten the nuts and bolts 11 N.m (100 in. lbs.).

Lower the vehicle.

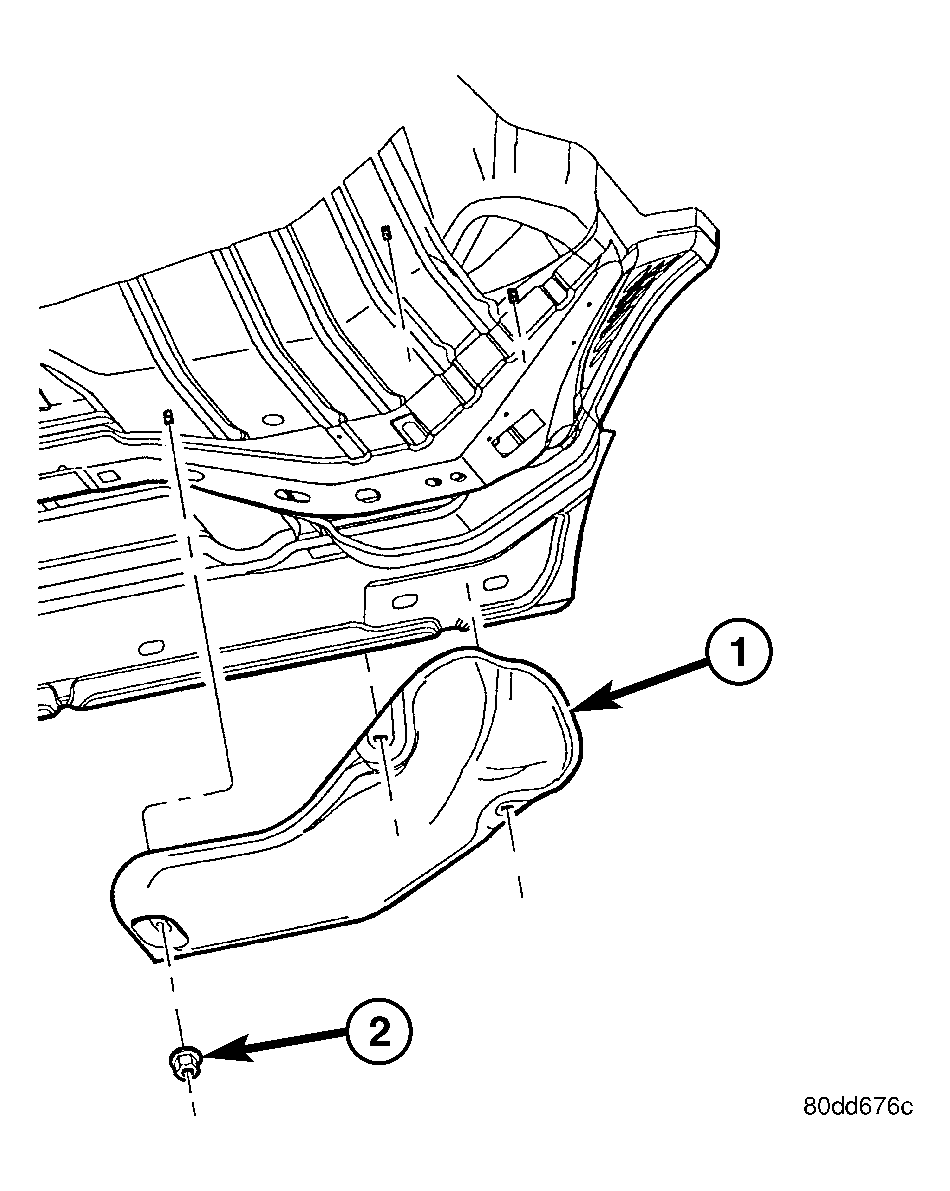

Fig 1: Heat Shield - LH

GC0006416

Courtesy of DAIMLERCHRYSLER CORP.

1 - HEAT SHIELD

2 - NUT

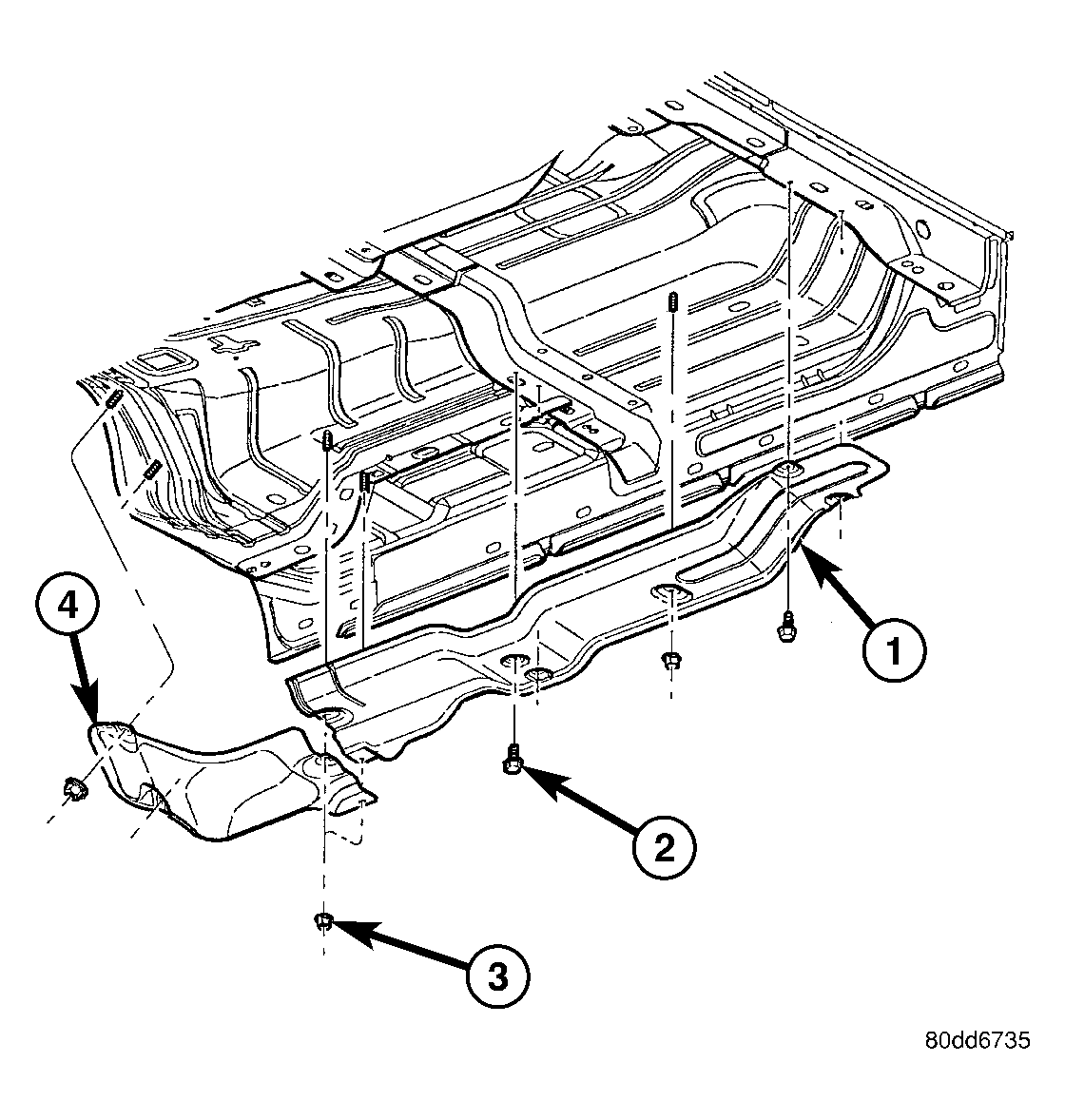

Fig 2: Heat Shields - RH - Quad Cab

GC0006415

Courtesy of DAIMLERCHRYSLER CORP.

1 - HEAT SHIELD

2 - FASTENER

3 - NUT

4 - HEAT SHIELD

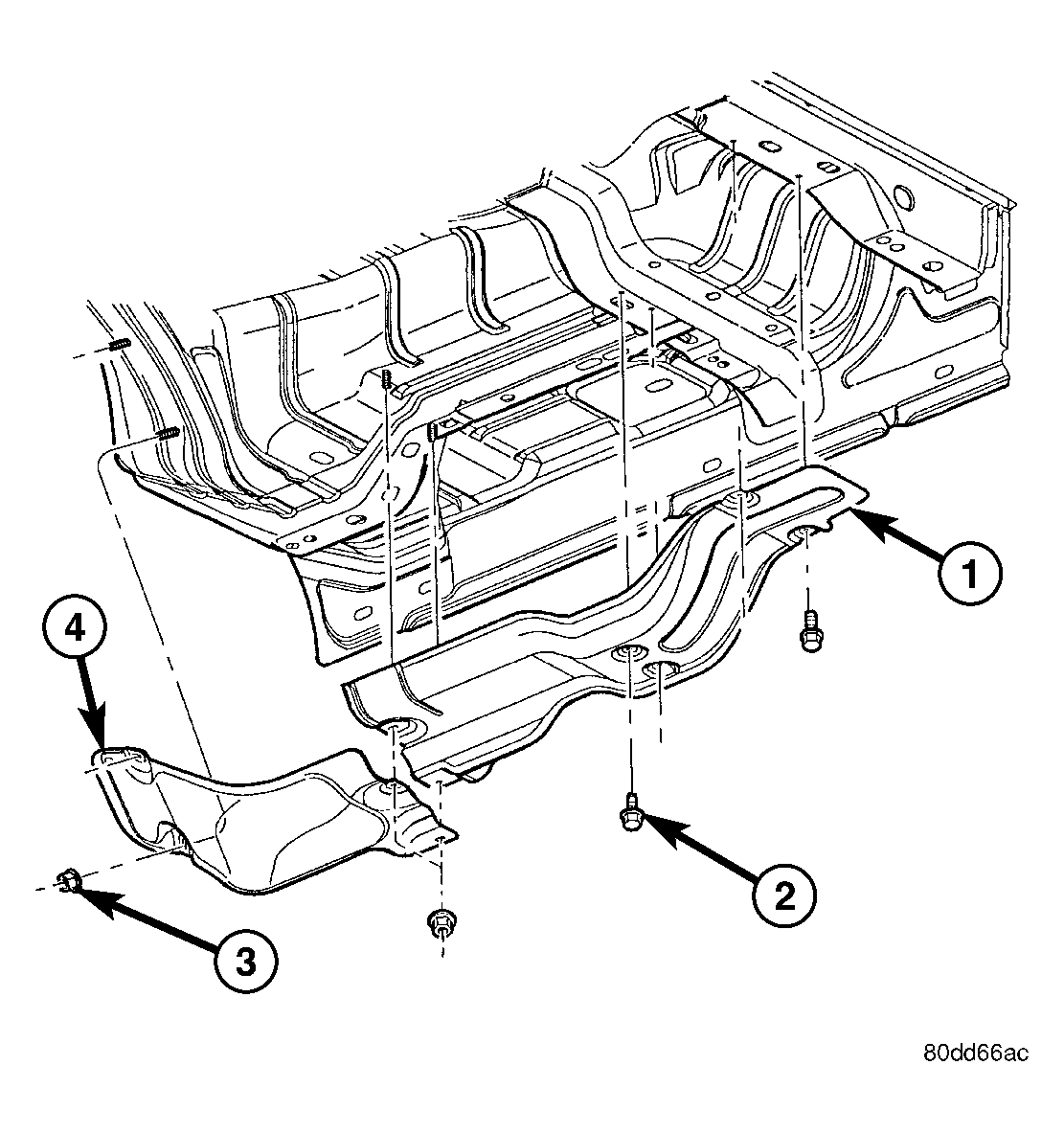

Fig 3: Heat Shields - RH - Regular Cab

GC0006414

Courtesy of DAIMLERCHRYSLER CORP.

1 - HEAT SHIELD

2 - FASTENER

3 - NUT

4 - HEAT SHIELD
