Section 302 (HVAC System (Service Information)): Distribution: Duct-Defroster: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

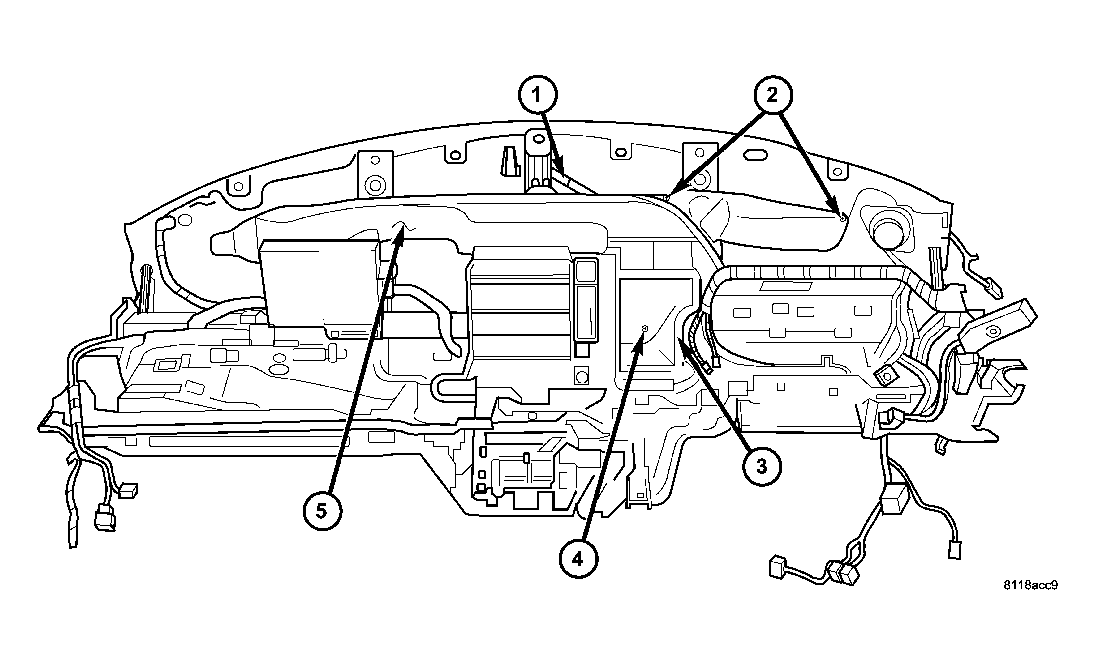

Fig 1: Defroster Duct
GC0007400Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the defroster duct (5) into the instrument panel.
  2. Install the six screws (2) that secure the defroster duct to the instrument panel. Tighten the screws to 2.2 N.m (20 in. lbs.).
  3. Install the defroster duct adapter (3) onto the defroster duct.
  4. Install the screw (4) that secures the defroster duct adapter to the instrument panel support. Tighten the screw to 2.2 N.m (20 in. lbs.).
  5. Connect the center radio speaker wire harness connector (1) to the speaker.
  6. Install the instrument panel (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - INSTALLATION) .
